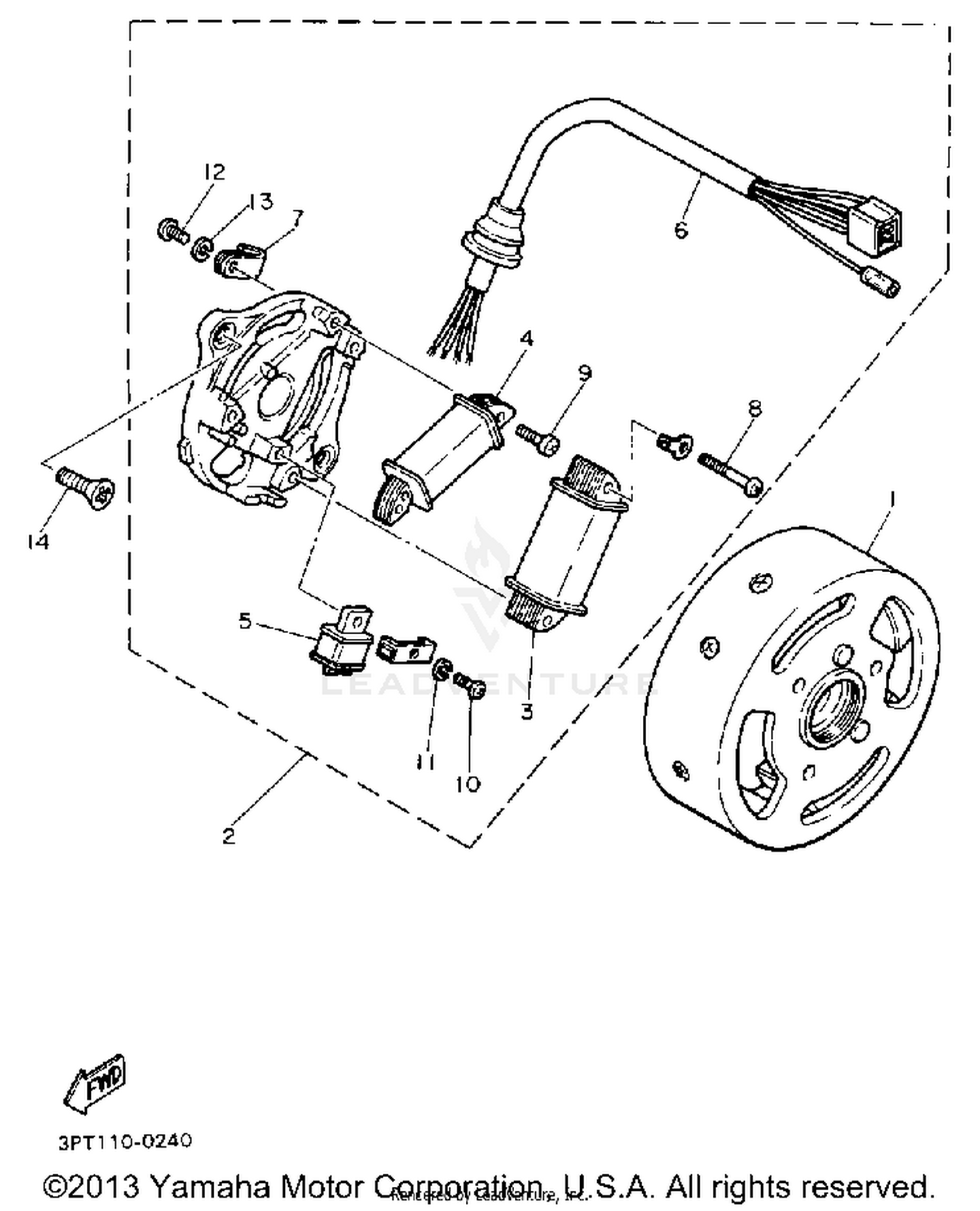

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
3L6-85550-M0-00
Superseded by 3L6-85550-M1-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE ASSEMBLY
4X4-85560-M1-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL, LIGHTING 1
4X4-81313-M0-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL, CHARGE
4Y4-85520-M0-00
Superseded by 4Y4-85520-M1-00
|
$50.99 | ||
|
Unavailable |
|||
|
#5
COIL, PULSER
3L5-85580-M0-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CORD ASSEMBLY
4X4-8131X-M0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90461-05036-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98511-04025-00
Superseded by 98517-04025-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#14
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
