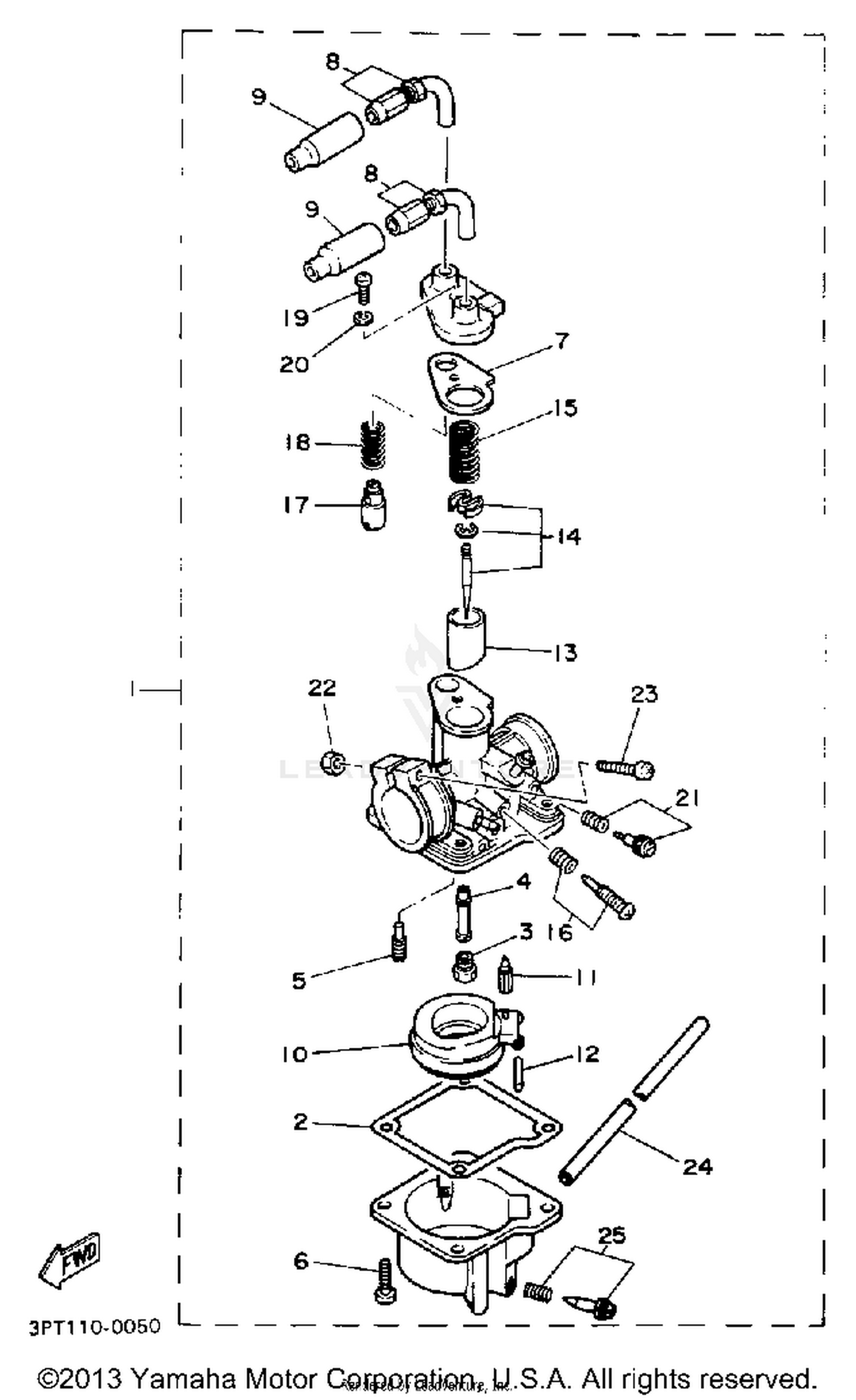

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
4X4-14101-00-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, FLOAT CHAMBER
3L5-14184-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
JET, MAIN (#70)
620-14231-14-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN ( 75)
620-14231-15-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN ( 65)
620-14231-13-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE, MAIN
3L7-14141-12-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, PILOT (#40)
3L5-14142-40-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET
3L5-14198-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE ADJUST SCREW SET
17L-14106-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP
1R0-14169-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLOAT
3L6-14185-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE ASSY
3L5-14190-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, FLOAT
603-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE, THROTTLE 1
3L5-14112-40-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE SET
36R-1490J-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, THROTTLE VALVE
174-14131-01-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE SCREW SET
36R-14103-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUNGER, STARTER
58E-14171-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, PLUNGER
509-14135-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98580-05012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
AIR SCREW SET
17L-14104-00-00
Superseded by 36R-14104-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95380-05600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HOSE (L200)
90445-05024-00
Superseded by 90445-05N13-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
AIR SCREW SET
17L-14104-00-00
Superseded by 36R-14104-00-00
|
$10.99 | ||
|
Unavailable |
|||
