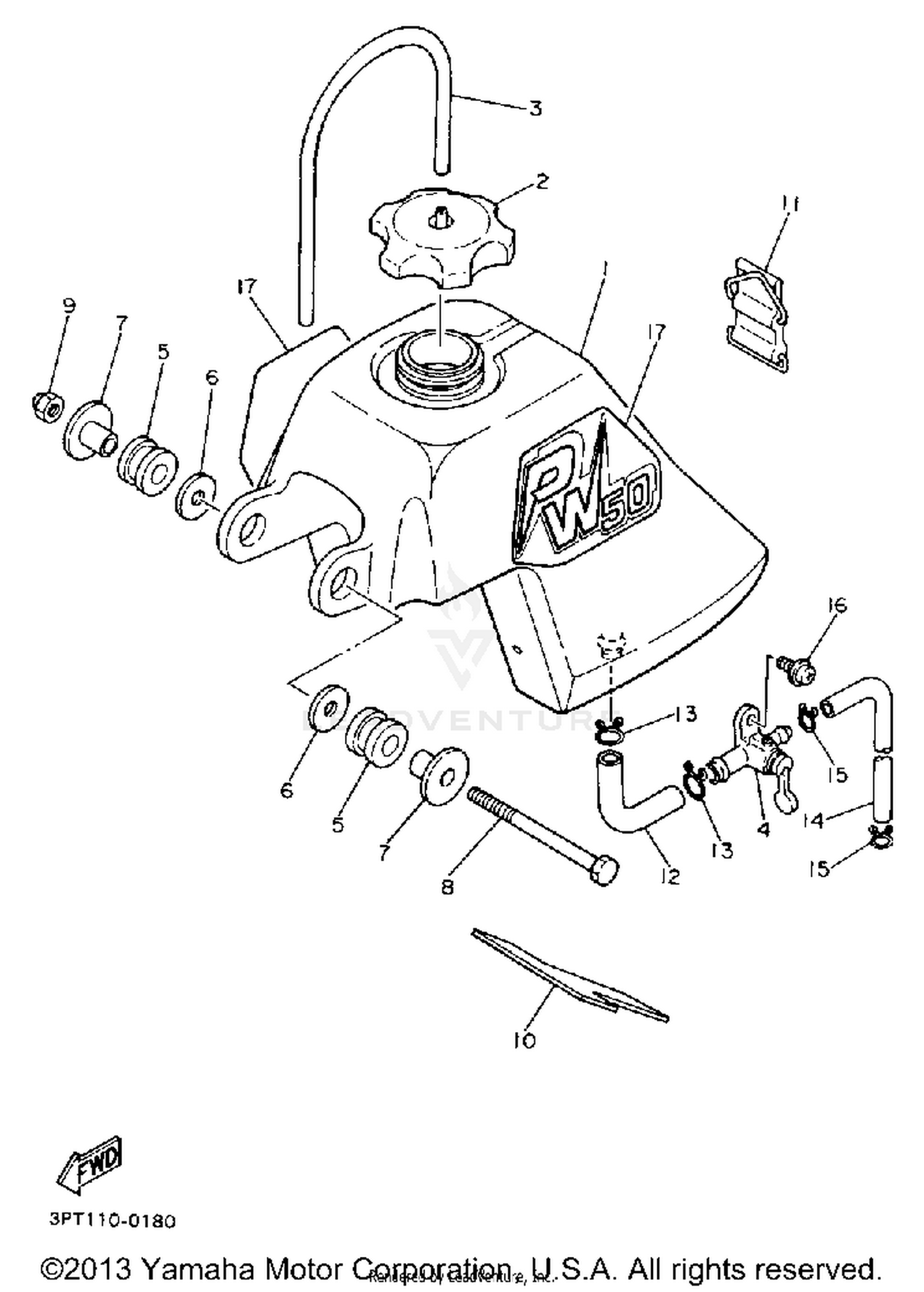

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3PT-24110-00-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
2FG-24610-00-00
Superseded by 2FG-24610-10-00
|
$70.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIPE 5
90445-09252-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
FUEL COCK ASSY 1
4X4-24500-00-00
Superseded by 4X4-24500-11-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR
90387-077F4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97001-06085-00
Superseded by 97007-06085-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CROWN
90176-06038-00
Superseded by 95380-06800-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 1
3R0-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, TANK FITTING 1
59V-24173-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, FUEL 1
36E-24311-00-00
Superseded by 5PG-24311-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-12052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 5
90445-09074-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
CLIP
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, WITH WASHER
90159-06013-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GRAPHIC, FUEL TNK 1
3PT-24244-00-00
|
$43.99 | ||
|
Unavailable |
|||
