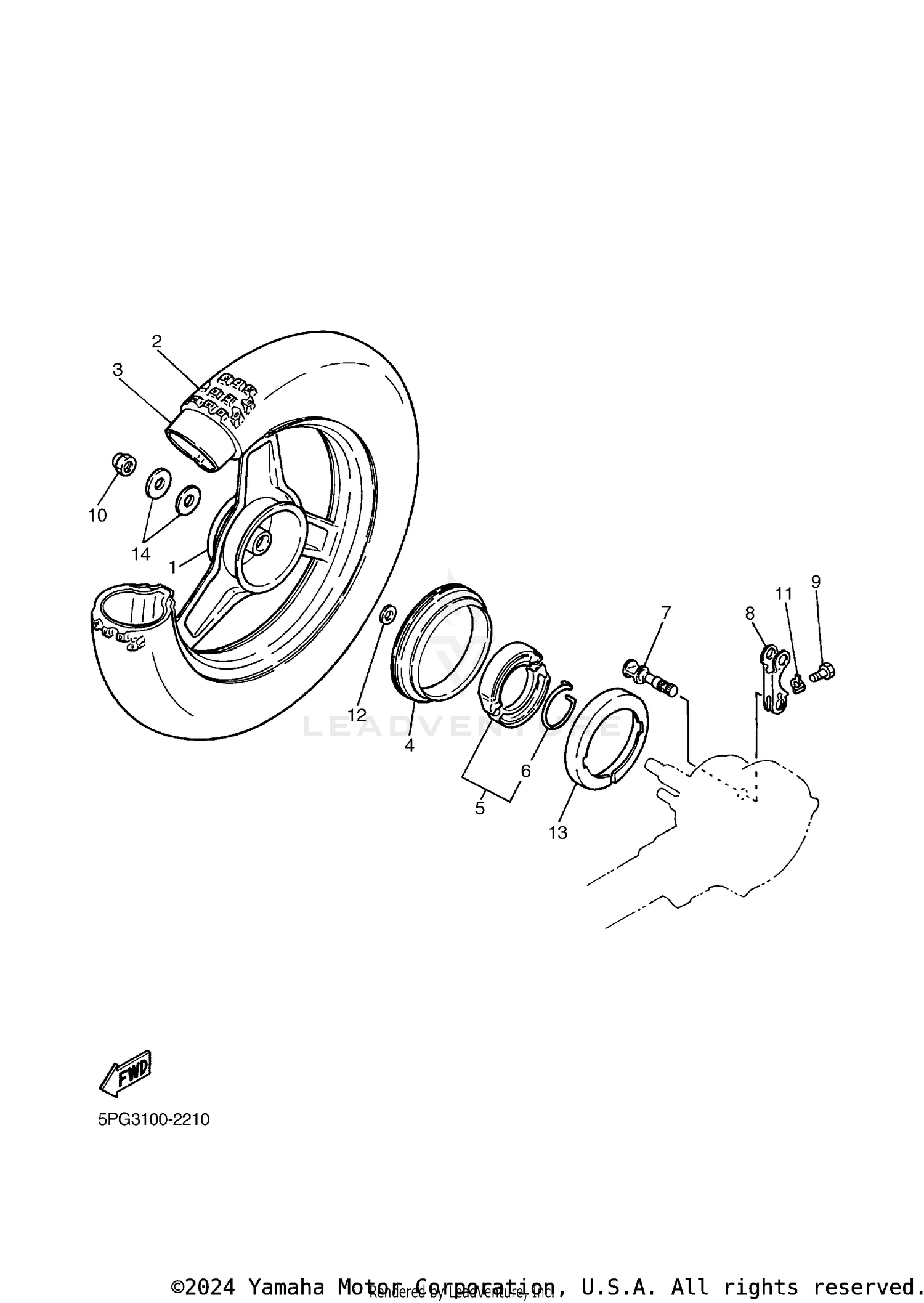

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
5M0-25390-01-P1
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (INOUE 2.50-10)
94125-10650-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (BRIDGESTONE 2.50-10 4PM29
94125-10651-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE (INOUE 2.50/2.75-10)
94225-10270-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE (2.50/2.75-10)
94225-10172-00
Superseded by 94225-10270-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
RING 1
2T4-25185-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRAKE SHOE KIT
3PT-W253A-10-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, RETURN
2E9-25133-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAMSHAFT
3L5-25351-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, CAMSHAFT
3L5-25355-00-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT
90101-05396-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-12046-00
Superseded by 90185-12134-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER
2E9-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE (T=1.0)
90201-15700-00
Superseded by 90201-154E8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING 2
4X4-25336-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-125A5-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
