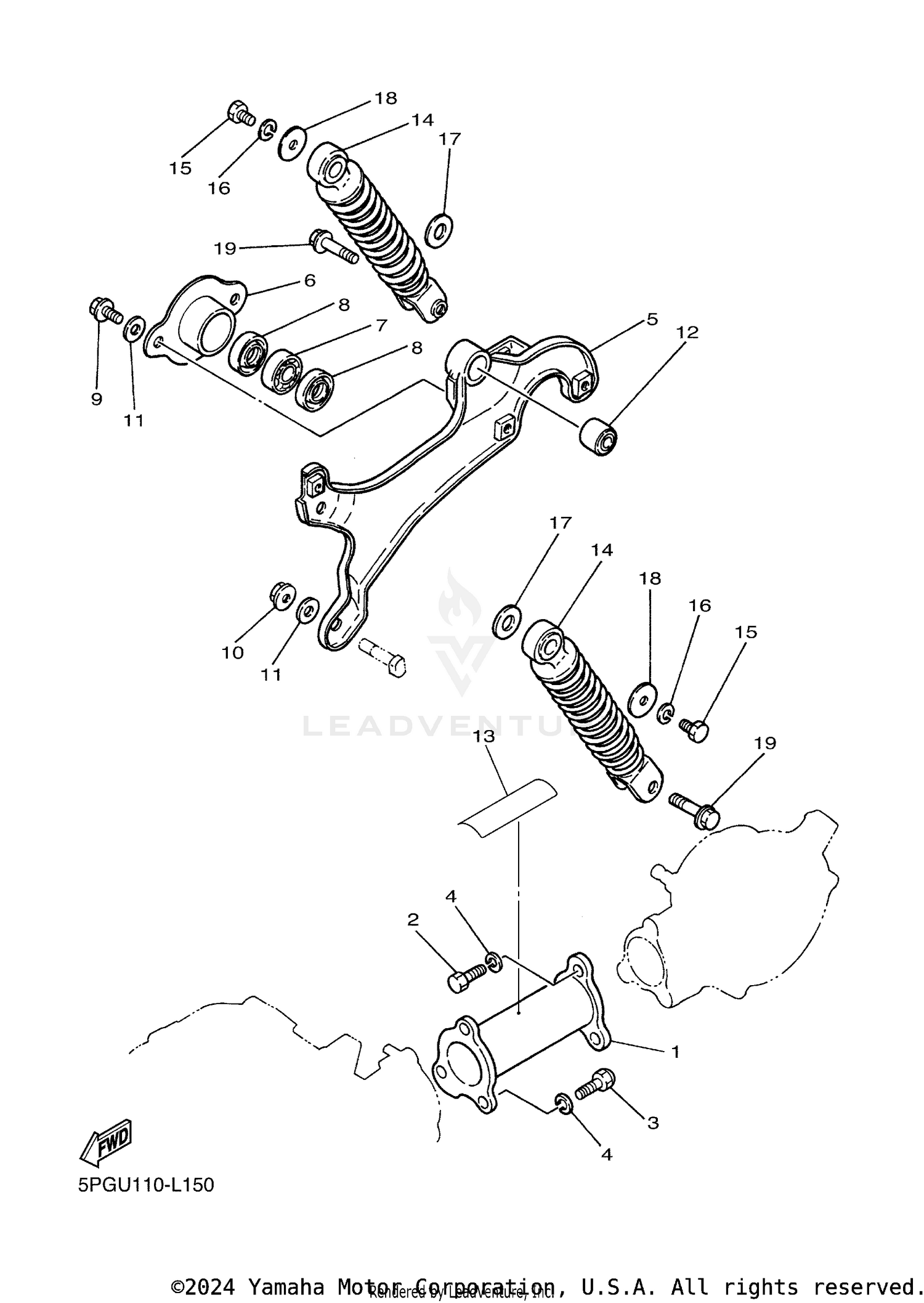

Rear Arm & Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
3L7-22110-00-98
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90101-08461-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90106-08053-00
Superseded by 90106-08051-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR ARM COMP.
4X4-22110-10-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
END 1
4J2-22174-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-20117-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93106-24018-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08066-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,FLANGE (JN5)
95707-08500-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08326-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BUSH, REAR SHOCK ABSORBER
164-22216-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, TIRE
3RV-21668-A1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
SHOCK ABSORBER ASSY, REAR
2SA-22210-01-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97027-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-126A7-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-067A0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-08121-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
