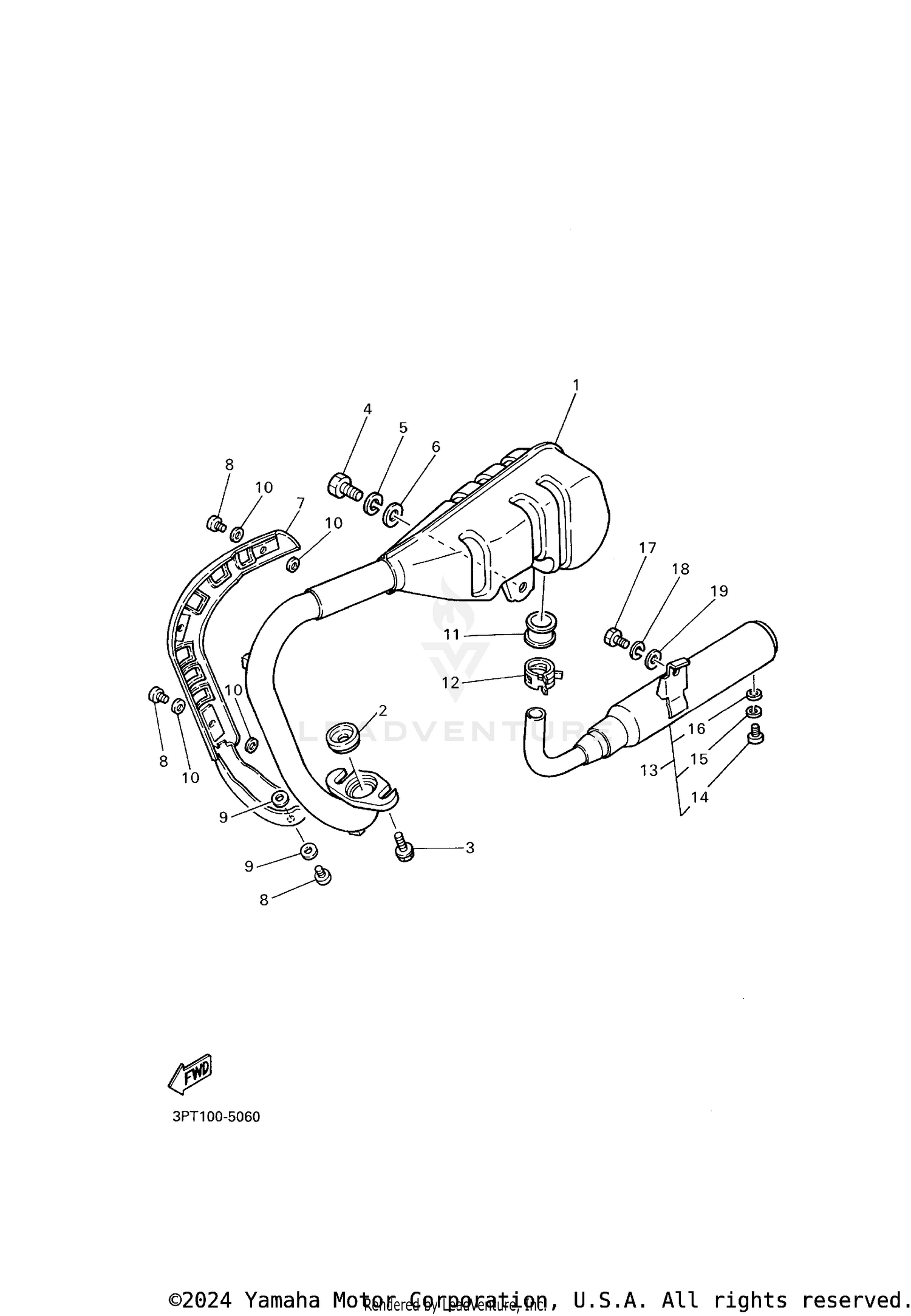

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
4X4-14610-01-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EXHAUST PIPE
4X4-14623-11-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06011-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97007-08020-00
Superseded by 97017-08020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-08100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PROTECTOR ASSY
4X4-14708-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
90157-05003-00
Superseded by 98507-05006-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-04214-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PROTECTOR
3RV-14766-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER
4X4-14714-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLIP
90467-22048-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SILENCER ASSY
4X4-14750-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
98507-06008-00
Superseded by 98517-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
Unavailable |
|||
