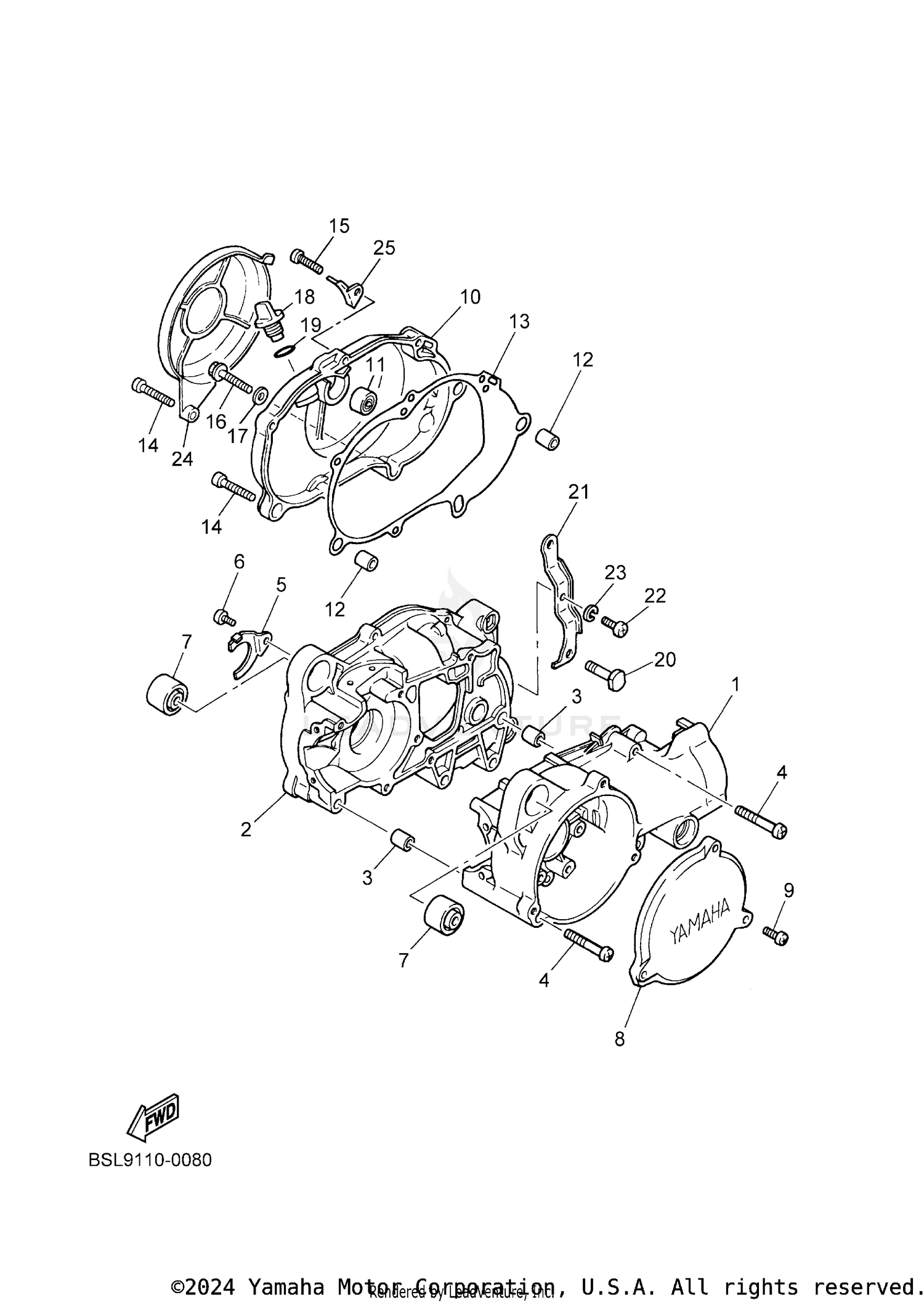

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
4X4-15111-00-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE 2
4J2-15121-01-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-06045-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER
3L5-15128-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER 1
2E9-15316-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, GENERATOR
4J2-15415-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD WITH WASHER
98507-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CRANKCASE 2
4X4-15421-02-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSH 1
3L5-17112-02-00
|
$17.49 | ||
|
Unavailable |
|||
|
#12
PIN, DOWEL
99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#13
GASKET, CRANKCASE COVER 1
3L5-15451-12-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98507-06035-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE
95827-08035-00
Superseded by 95817-08035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, OIL
4J2-15363-10-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
90109-08582-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
4J2-15113-00-00
|
$5.79 | ||
|
Unavailable |
|||
|
#22
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Unavailable |
|||
|
#23
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PROTECTOR
4X4-15491-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP 2
4X4-15484-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
