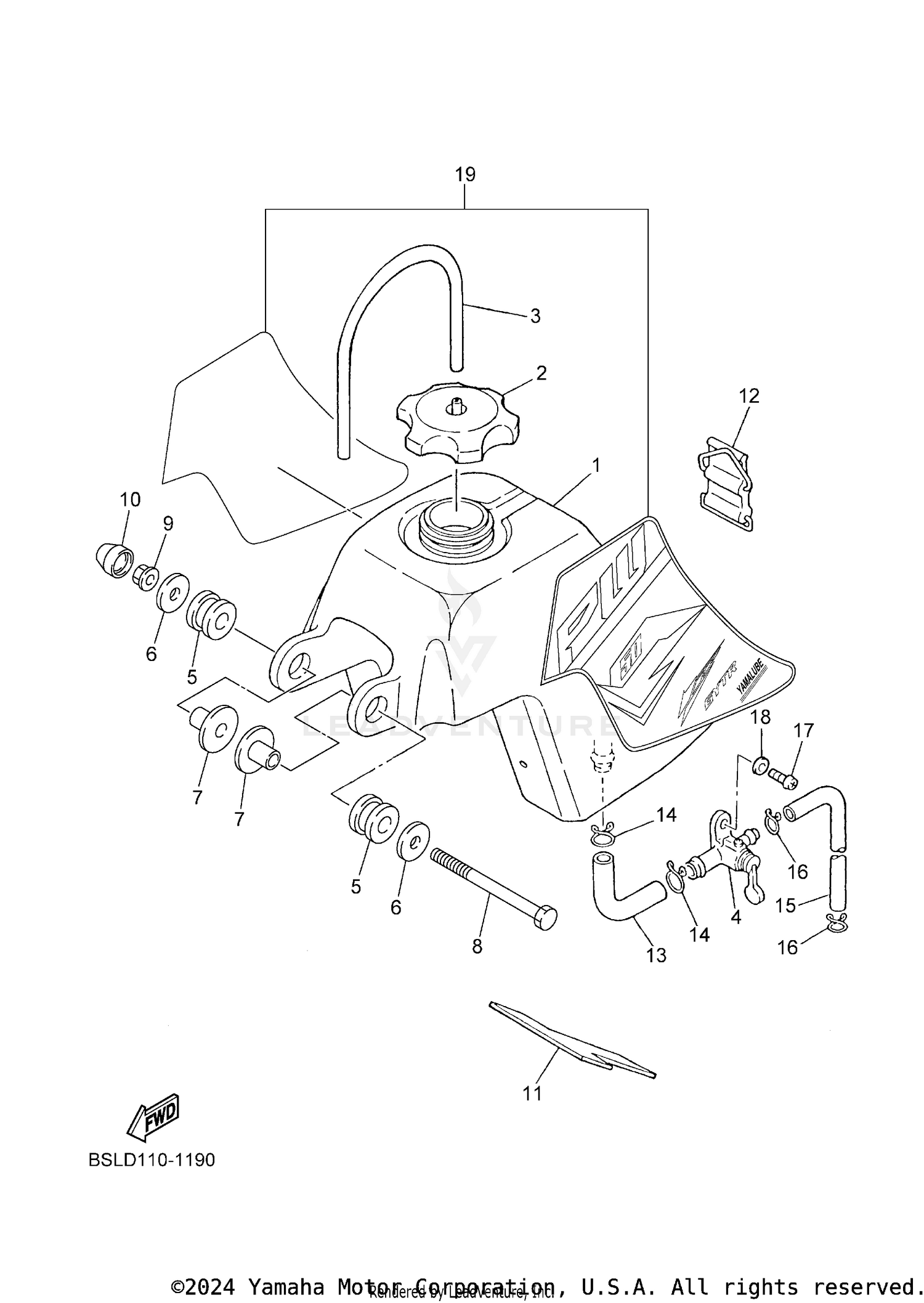

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5PG-24110-00-00
|
$267.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
2FG-24610-10-00
|
$70.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIPE 5
90445-09005-00
Superseded by 5RB-24315-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
FUEL COCK ASSY 1
4X4-24500-11-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06747-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR
90387-077F4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97007-06090-00
Superseded by 97017-06090-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP
5PG-2467E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, LOCATING 1
3R0-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, TANK FITTING 1
59V-24173-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, FUEL 1
5PG-24311-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-12052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE
90445-09028-00
Superseded by 90445-09029-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SCISSOR
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98507-06010-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
GRAPHIC SET
BSL-24240-30-00
|
$99.99 | ||
|
Unavailable |
|||
