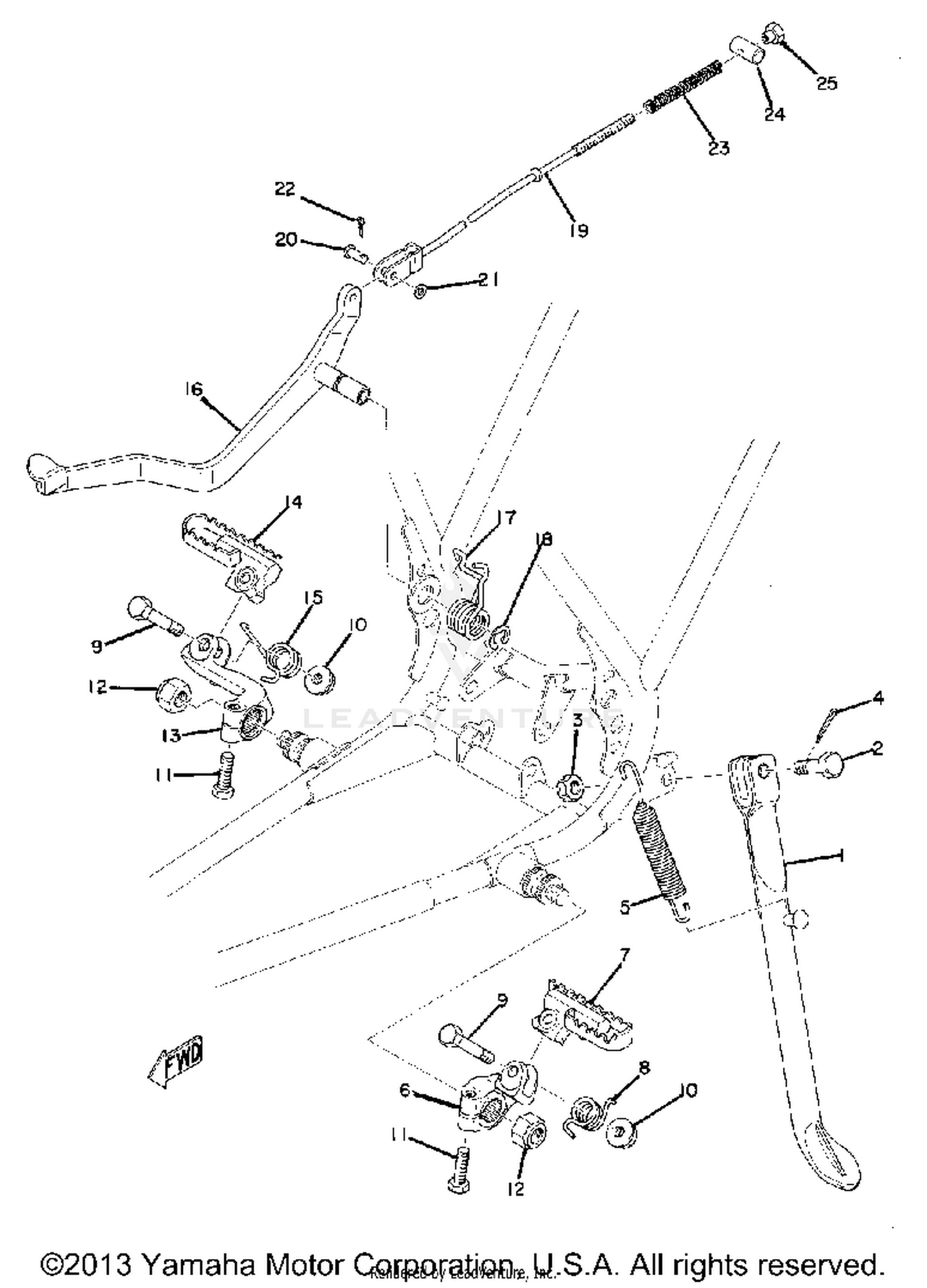

Stand - Footrest - Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
401-27311-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#2
BOLT, WITH HOLE (278-27317-00)
90102-10006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CASTLE
90171-10012-00
Superseded by 90171-10049-00
|
$2.90 | ||
|
Unavailable |
|||
|
#4
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SPRING, TENSION
90507-29004-00
Superseded by 90506-26270-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRACKET, FOOTREST 1
401-27412-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#7
FOOTREST 1
401-27411-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#8
SPRING, TORSION (401-27426-00)
90508-26259-00
|
$4.85 | ||
|
Unavailable |
|||
|
#9
BOLT (157-27416-00)
90109-08376-00
|
$2.20 | ||
|
Unavailable |
|||
|
#10
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, FOOTREST 2
401-27422-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#14
FOOTREST 2
401-27421-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
SPRING, TORSION (401-27456-00)
90508-26260-00
|
$4.55 | ||
|
Unavailable |
|||
|
#16
PEDAL, BRAKE
437-27211-00-33
|
$49.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TORSION
90508-40165-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
93430-10015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, BRAKE
248-27231-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-10245-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-06411-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
