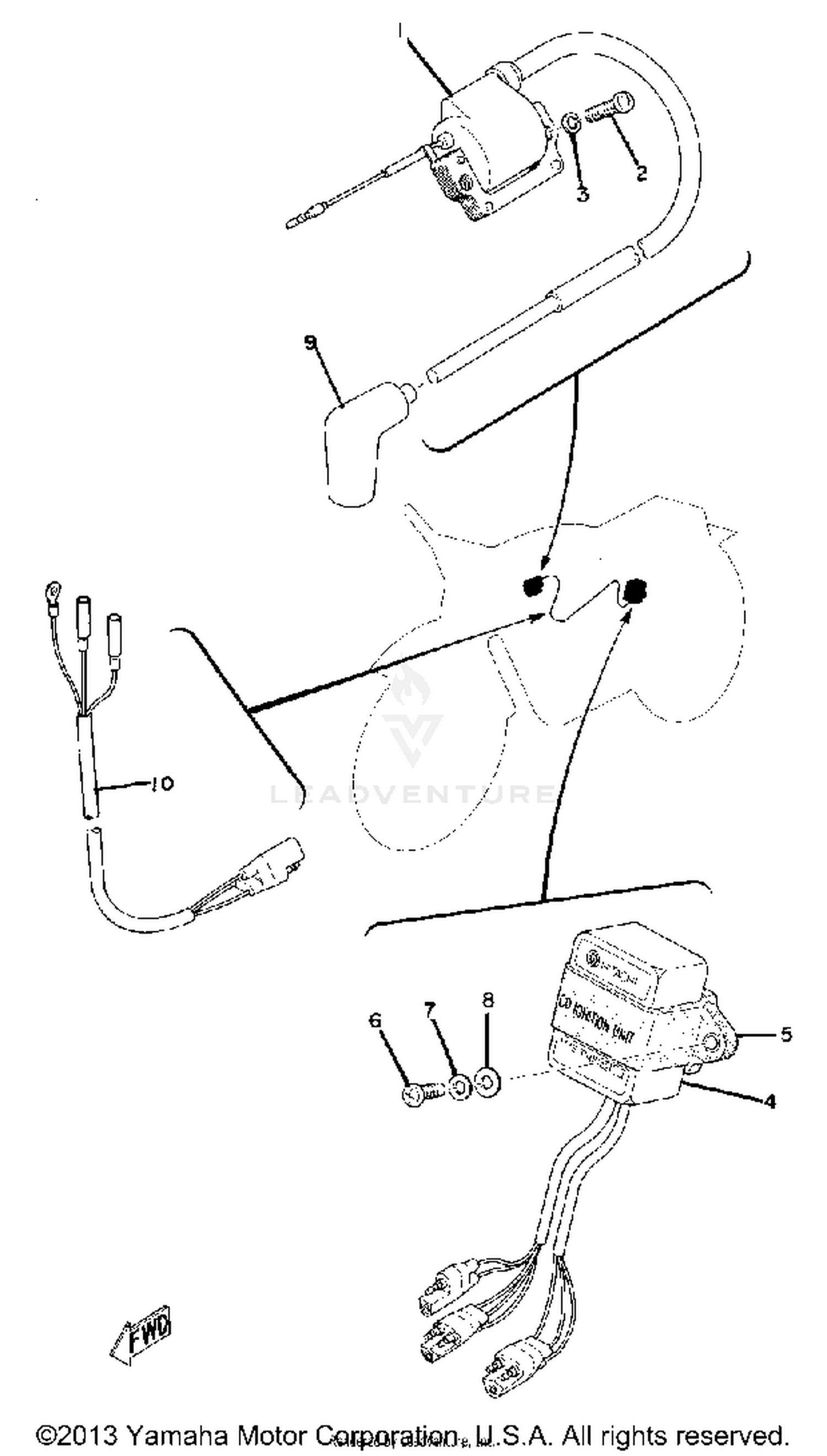

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
322-82310-10-00
|
$83.82 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
CDI UNIT ASSEMBLY
455-85540-00-00
|
$196.99 | ||
|
Unavailable |
|||
|
#5
BAND
363-85546-00-00
|
$12.10 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06M08-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG CAP ASSY
56J-82370-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE, SUB LEAD
401-85517-00-00
|
$5.64 | ||
|
Unavailable |
|||
