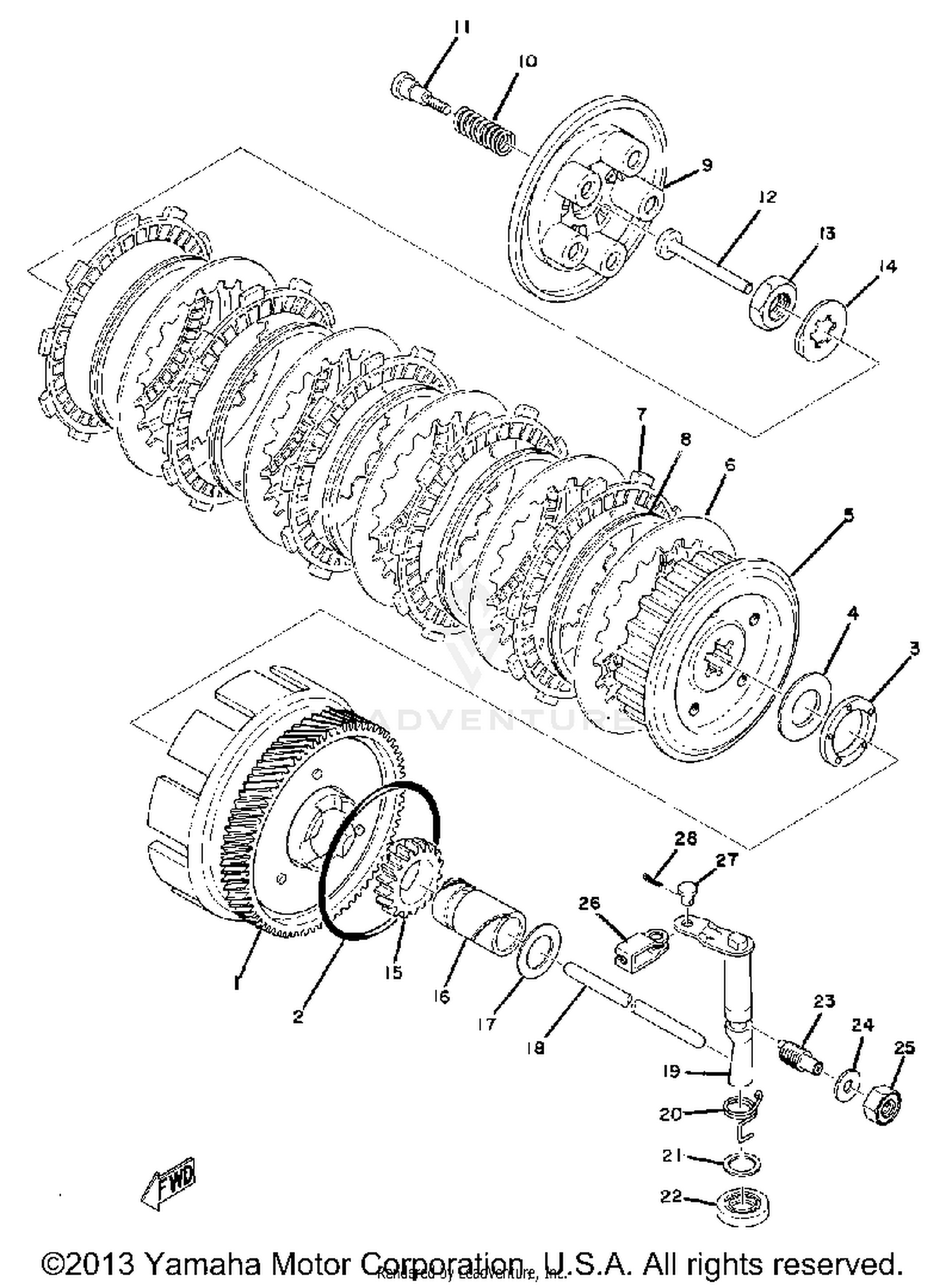

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
401-16301-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#
PRI DRVN GEAR
401-16150-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-98202-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, FLAT #41
93341-22603-00
|
$14.49 | ||
|
Unavailable |
|||
|
#4
PLATE, THRUST 1
174-16154-00-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOSS, CLUTCH
174-16371-01-00
|
$75.99 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH 1
336-16324-00-00
Superseded by 336-16324-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, FRICTION
132-16321-01-00
Superseded by 3HA-16321-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, CUSHION
137-16367-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, PRESSURE 1
132-16351-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
90501-20122-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SPECL SHAPE
90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#12
ROD, PUSH 1
137-16356-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-16018-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, LOCK
90215-16020-00
Superseded by 90215-16127-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, KICK PINION
261-15631-01-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR (174-16181-00)
90387-20439-00
|
$22.99 | ||
|
Unavailable |
|||
|
#17
PLATE, THRUST 2
248-16164-01-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
ROD, PUSH 2
401-16357-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
AXLE, PUSH LEVER
401-16382-02-00
|
$48.99 | ||
|
Unavailable |
|||
|
#20
SPRING, TORSION
90508-14132-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-14217-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93104-14059-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, ADJUSTING
364-16343-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-12207-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, ADJUSTING
583-16344-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT
214-16389-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, CLEVIS
90240-06005-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
