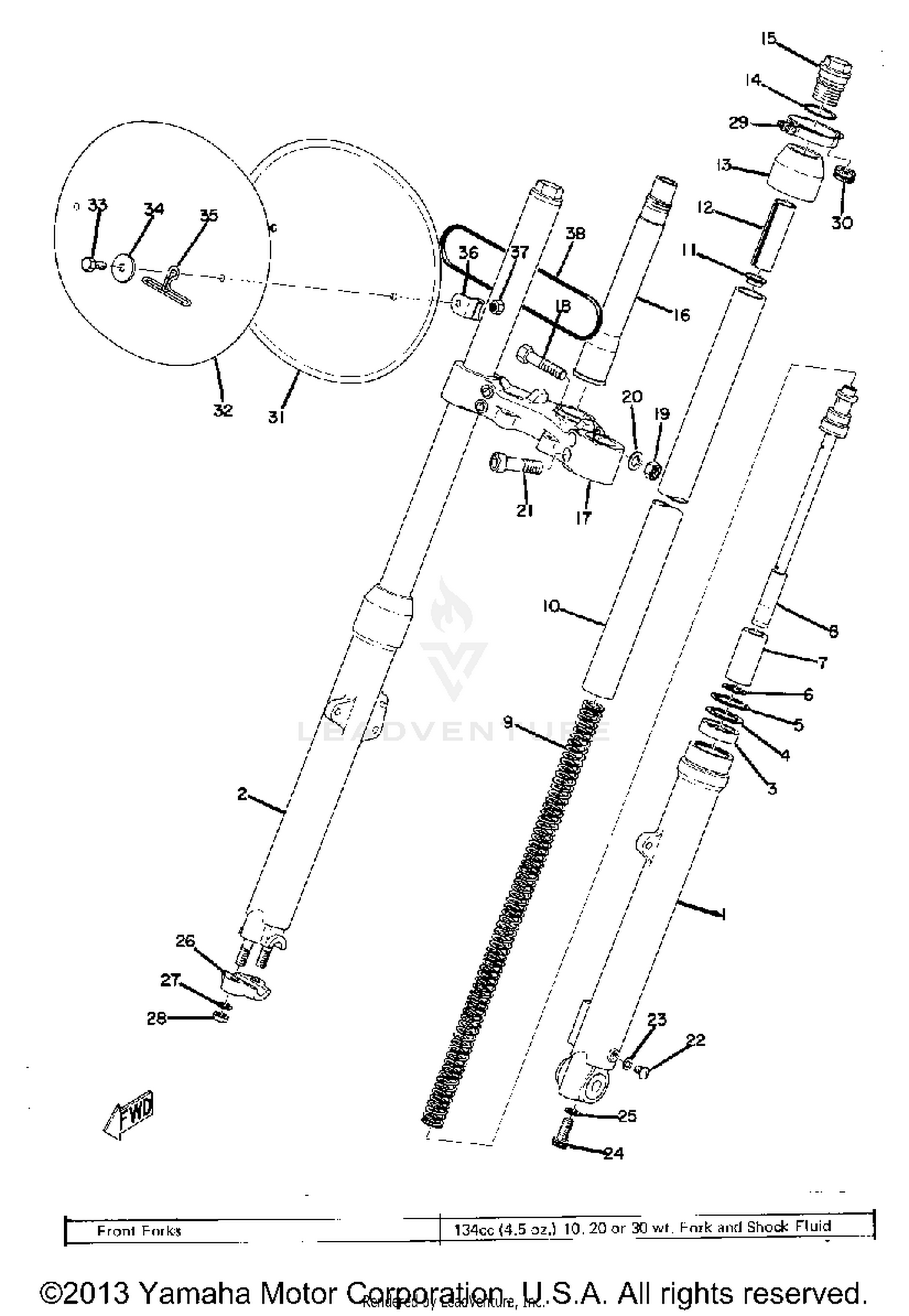

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
401-23101-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
315-23126-50-00
|
$115.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
315-23136-50-00
|
$122.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
137-23145-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
315-23146-50-00
|
$2.97 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
315-23156-50-00
|
$3.16 | ||
|
Unavailable |
|||
|
#6
CIRCLIP
535-23183-01-00
|
$4.10 | ||
|
Unavailable |
|||
|
#7
PISTON, FRONT FORK
401-23171-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
401-23170-00-00
|
$55.42 | ||
|
Unavailable |
|||
|
#9
SPRING, FRONT FORK
403-23141-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#10
TUBE, INNER 1
401-23124-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#11
SEAT, SPRING UPPER
248-23142-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#12
SPACER
401-23118-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#13
SEAL, DUST
248-23144-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
146-23114-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#17
BRACKET, LOWER
401-23345-00-33
|
$65.75 | ||
|
Unavailable |
|||
|
#18
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#19
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING
92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT 1
322-23346-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
GASKET, DRAIN PLUG
122-23129-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
214-23158-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#26
HOLDER, AXLE
315-23167-51-00
|
$101.99 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CLAMP, HOSE
90460-50014-00
|
$3.00 | ||
|
Unavailable |
|||
|
#30
GROMMET
90480-13163-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, NUMBER
322-23485-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#32
EMBLEM
322-23395-00-00
|
$13.72 | ||
|
Unavailable |
|||
|
#33
SCREW, OVAL FLSTR (322-23396-00
90146-06007-00
|
$3.15 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, CABLE 2
322-23319-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#36
STAY, PLATE
318-23487-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#37
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
O-RING
93210-99103-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
