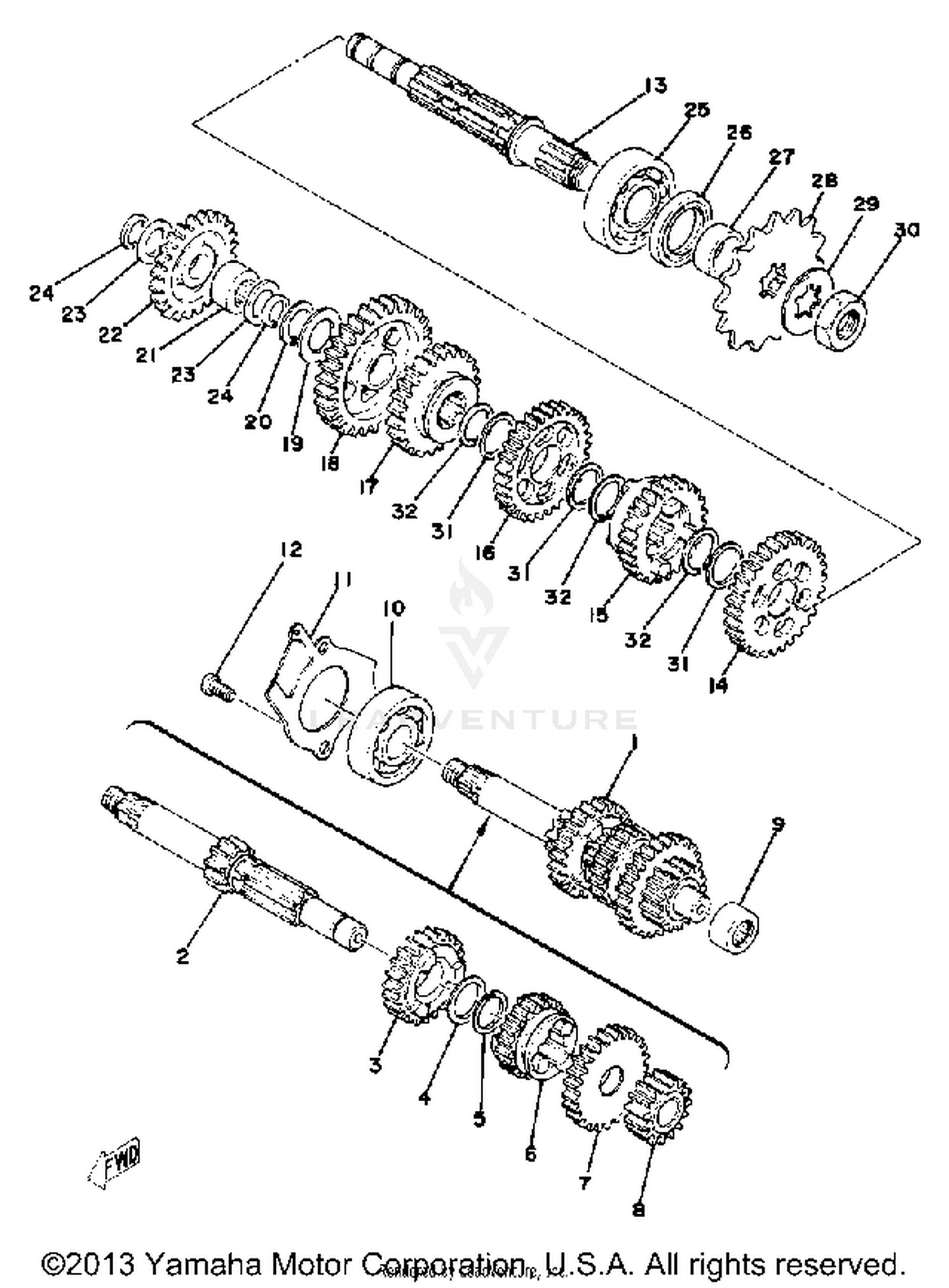

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE
558-17410-00-00
|
$93.27 | ||
|
Unavailable |
|||
|
#2
AXLE, MAIN (11T)
558-17411-00-00
|
$164.99 | ||
|
Unavailable |
|||
|
#3
GEAR,4TH PINION
437-17141-00-00
Superseded by 4EG-17141-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-20266-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (19T)
427-17131-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 5TH PINION (25T)
437-17151-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 2ND PINION
437-17121-02-00
|
$46.99 | ||
|
Unavailable |
|||
|
#9
BEARING
93315-31502-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$43.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLATE, COVER
1G8-17471-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE, DRIVE
558-17421-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 2ND WHEEL (30T)
427-17221-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 5TH WHEEL (20T)
437-17251-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#16
GEAR, 3RD WHEEL (26T)
427-17231-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR,4TH WHEEL
248-17241-00-00
Superseded by 4EG-17241-00-00
|
$61.99 | ||
|
Unavailable |
|||
|
#18
GEAR, 1ST WHEEL (35T)
248-17211-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#19
SHIM 1 (T=0.6)
164-17427-00-06
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-15012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, CYLINDRICAL
93311-31567-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, KICK IDLE (25T)
525-15651-00-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SHIM 1 (0.5T)
137-17417-00-05
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93440-15012-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
BEARING
93306-30421-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-26042-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
COLLAR
90387-20491-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPROCKET, DRIVE (14T)
93812-14035-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 15T (5171746152
93812-15063-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 13T
93812-13022-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, LOCK
90215-16020-00
Superseded by 90215-16127-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-16018-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, PLATE (T=1.0)
90201-20266-00
|
$10.49 | ||
|
Unavailable |
|||
|
#32
CIRCLIP
93410-20038-00
|
$4.05 | ||
|
Unavailable |
|||
