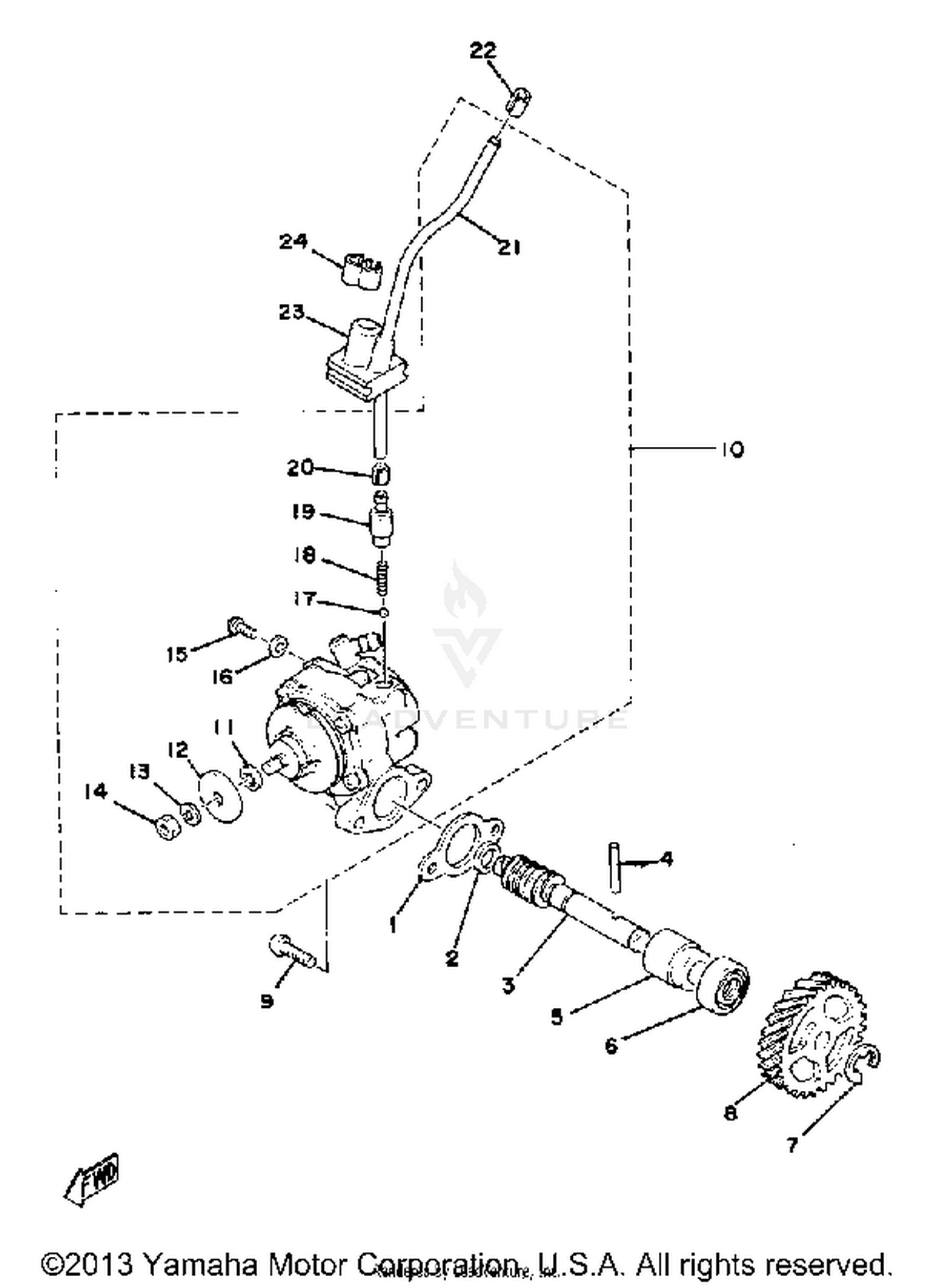

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, PUMP CASE
3MT-13116-00-00
Superseded by 126-13116-01-00
|
$9.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-08624-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, WORM
275-13175-01-00
Superseded by 275-13175-02-00
|
$26.99 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
93603-22028-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
METAL, WORM SHAFT OUTER
1E7-13176-00-00
Superseded by 137-13176-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93101-10002-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CIRCLIP
99001-08600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE (28T)
248-13178-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL PUMP ASSEMBLY
558-13101-01-00
Superseded by 3UL-13101-00-00
|
$252.99 | ||
|
Unavailable |
|||
|
#11
SHIM (T=1.0)
137-13137-00-10
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.5)
137-13137-00-05
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM (T=0.3)
137-13137-00-03
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, ADJUSTING
137-13138-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT
95380-05600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98901-04008-00
Superseded by 98980-04008-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
90430-04004-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BALL
93505-32002-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SPRING, COMPRESSION
90501-02018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NOZZLE
402-13552-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90468-02033-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOSE (L200)
90445-05278-00
Superseded by 90445-05N13-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP
90468-02033-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
HOLDER OIL PIPE
525-13174-00-00
Superseded by 525-13174-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
CLIP
90468-15020-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
