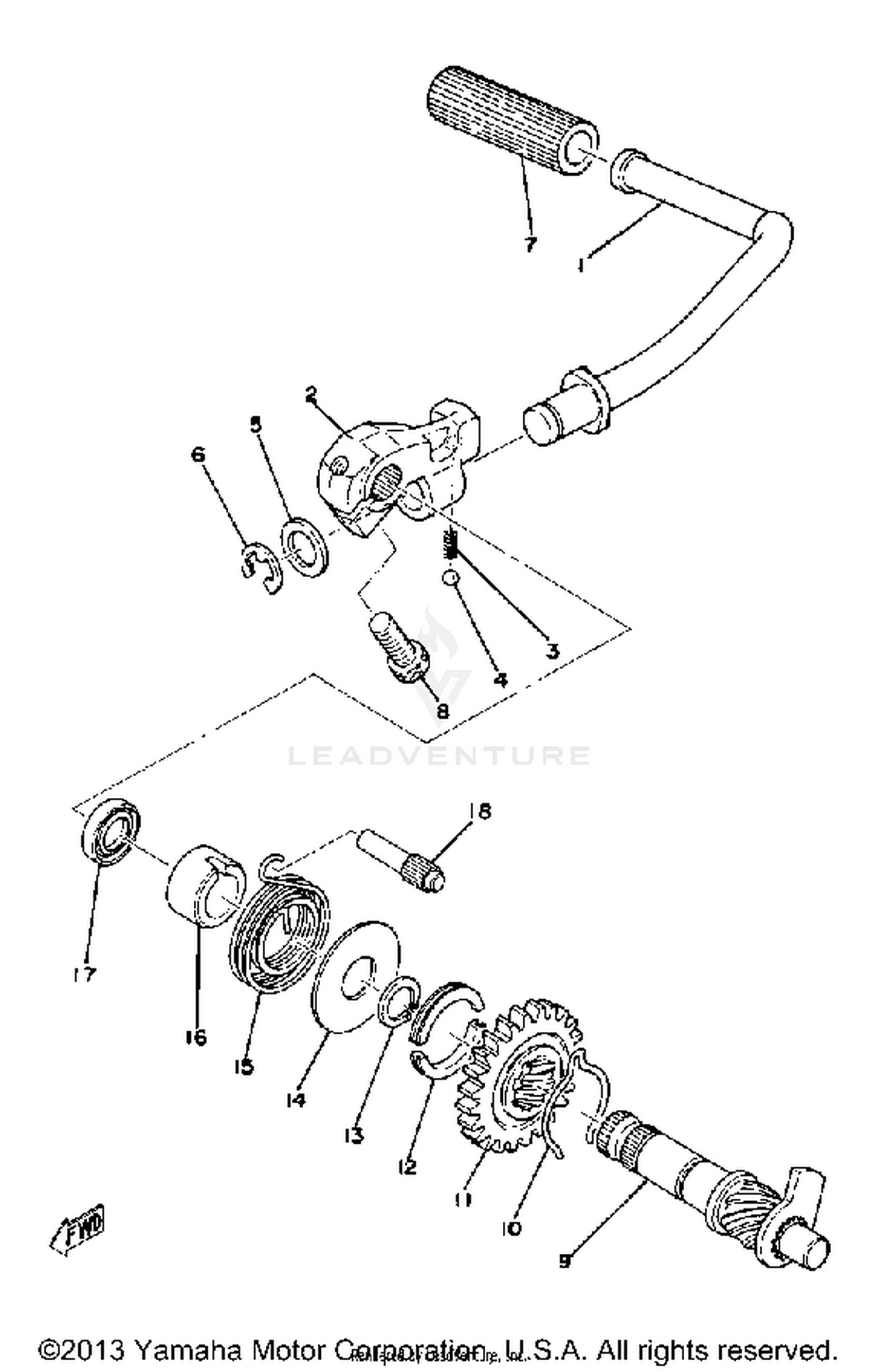

Kick-starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK CRANK ASSEMBLY
3UL-15620-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOSS, KICK CRANK
1T9-15621-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-12081-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BALL
93507-32031-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLATE (1.5T)
90201-15234-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CIRCLIP
99006-10600-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER, KICK LEVER
156-15618-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
KICK AXLE ASSEMBLY
403-15660-01-00
Superseded by 403-15660-02-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90468-26048-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GEAR, KICK (27T)
315-15641-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, KICK GEAR
248-15654-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99009-30400-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COVER, SPRING
401-15676-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TORSION
90508-26041-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
1W1-15666-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93101-17062-00
|
$16.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
STOPPER
257-15668-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
