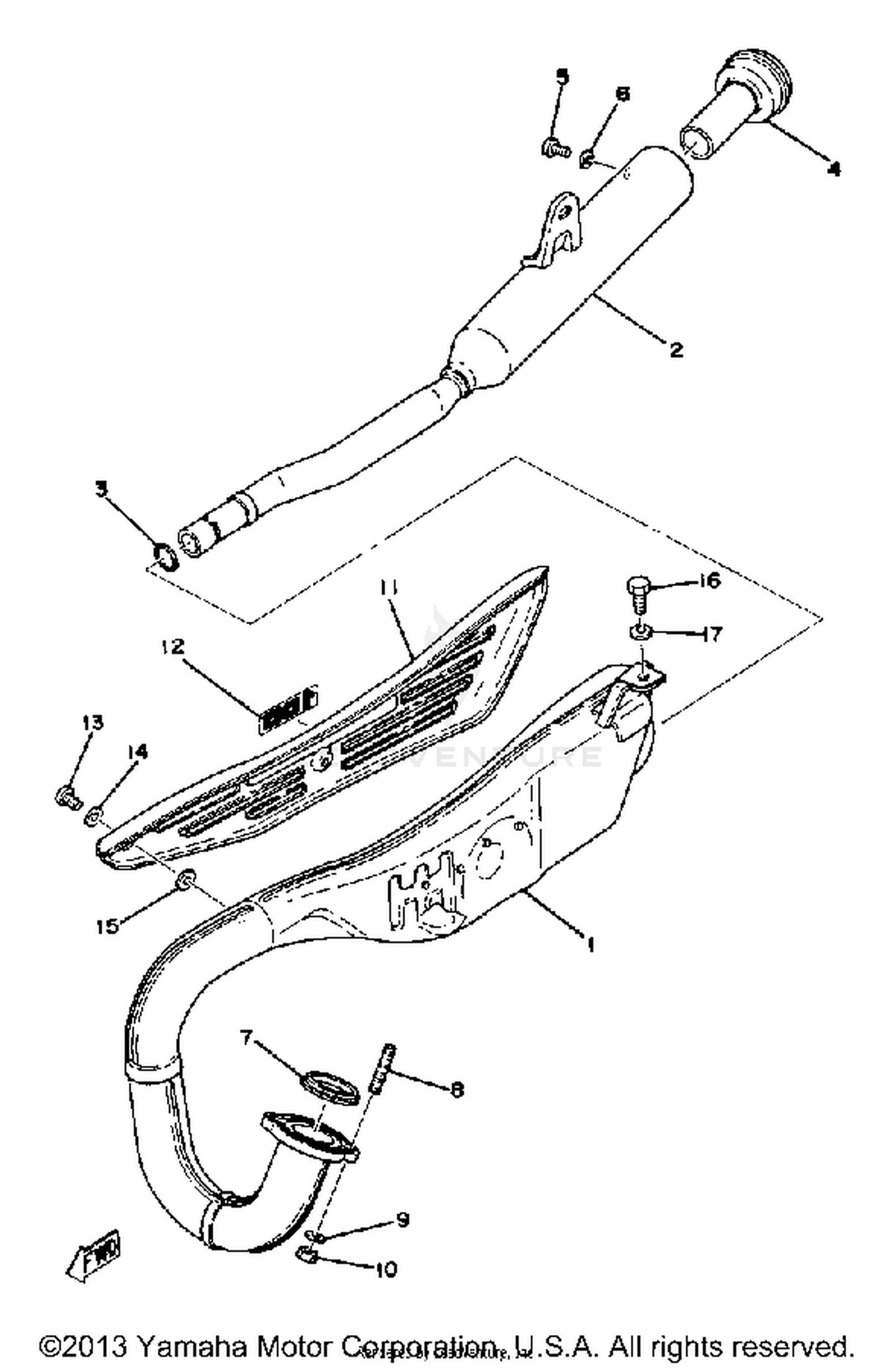

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
3UL-14610-00-00
Superseded by 3UL-14610-01-00
|
$236.99 | ||
|
Unavailable |
|||
|
#2
SILENCER, EXHAUST
1T9-14753-00-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-16290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, OUTLET
438-14752-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, EXHAUST PIPE
152-14613-00-00
Superseded by 3PA-14613-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-06016-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#10
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PROTECTOR, MUFF 1
1T9-14718-00-2H
|
$22.99 | ||
|
Unavailable |
|||
|
#12
EMBLEM, PROTECTOR
3M1-14729-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#13
SCREW, BIND
98903-06010-00
Superseded by 98980-06010-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05005-00
Superseded by 90202-05188-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN
92990-08200-00
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
