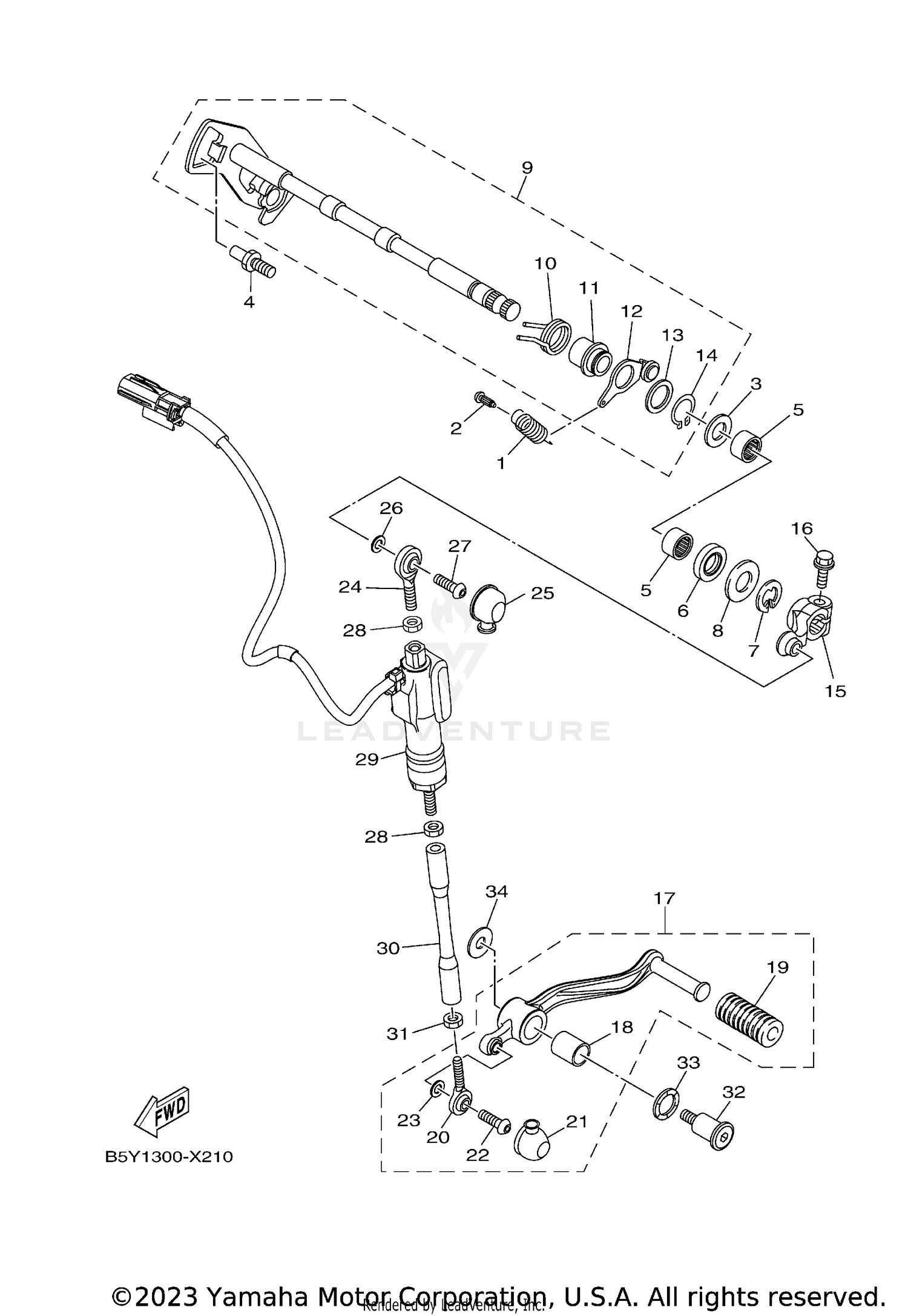

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, TENSION
90506-18021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOOK, SPRING
132-16346-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-127E1-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, SCREW
1D7-18127-00-00
Superseded by 5VK-18127-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93317-11295-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CIRCLIP
99002-10600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-12575-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHIFT SHAFT ASSY
2CR-18101-01-00
|
$152.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TORSION
90508-32141-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER
B7N-18175-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER LEVER ASSY
14B-18140-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP
99009-17400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
ARM, SHIFT
2CR-18112-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06127-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SHIFT PEDAL ASSY
B67-18110-10-00
|
$134.99 | ||
|
Unavailable |
|||
|
#18
BUSH
90386-14171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, ROD 2
5LV-18117-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, DUST
4XV-18154-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
90111-06019-00
Superseded by 92017-06020-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-06089-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
JOINT, ROD 1
5LV-18116-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, DUST
4XV-18154-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-067F9-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
90111-06019-00
Superseded by 92017-06020-00
|
$4.05 | ||
|
Unavailable |
|||
|
#28
NUT
95304-06700-00
Superseded by 95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIFT SENSOR ASSY.
B5Y-82480-00-00
Superseded by B5Y-82480-01-00
|
$278.99 | ||
|
Unavailable |
|||
|
#30
ROD, SHIFT
2CR-18115-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
4C8-27434-00-00
Superseded by 4C8-27434-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, WAVE
90206-14086-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-08103-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
