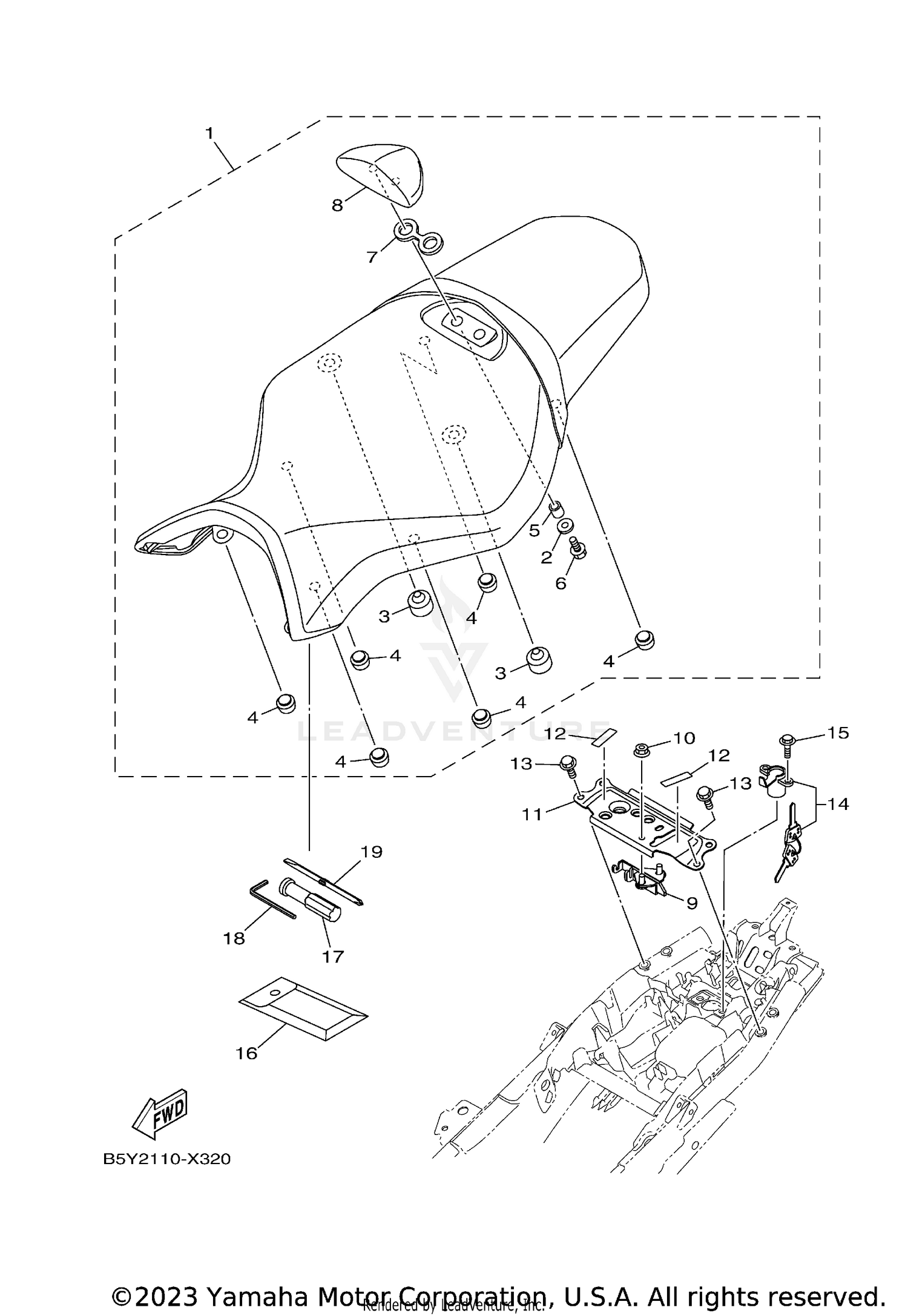

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
B5Y-24730-00-00
|
$362.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLATE
90201-06085-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, MAIN STAND
4GL-27114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, MAIN STAND
157-27114-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
5BN-2475Y-00-00
Superseded by 90387-067V1-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95822-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SEAL 2
B67-28429-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
. .SEAT BACK ASSY
BW8-24790-01-00
|
$67.99 | ||
|
Unavailable |
|||
|
#9
SEAT LOCK ASSY
4BP-24780-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BRACKET, SEAT LOCK
B67-2478X-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL 2
3P6-28228-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROTOR SET
1RC-W2470-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE DEEP RE
95E32-06014-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
TOOL KIT
B67-28100-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#17
GRIP, DRIVER
2H7-28151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WRENCH, HEXAGON 8
23P-28164-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
DRIVER
137-28152-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
