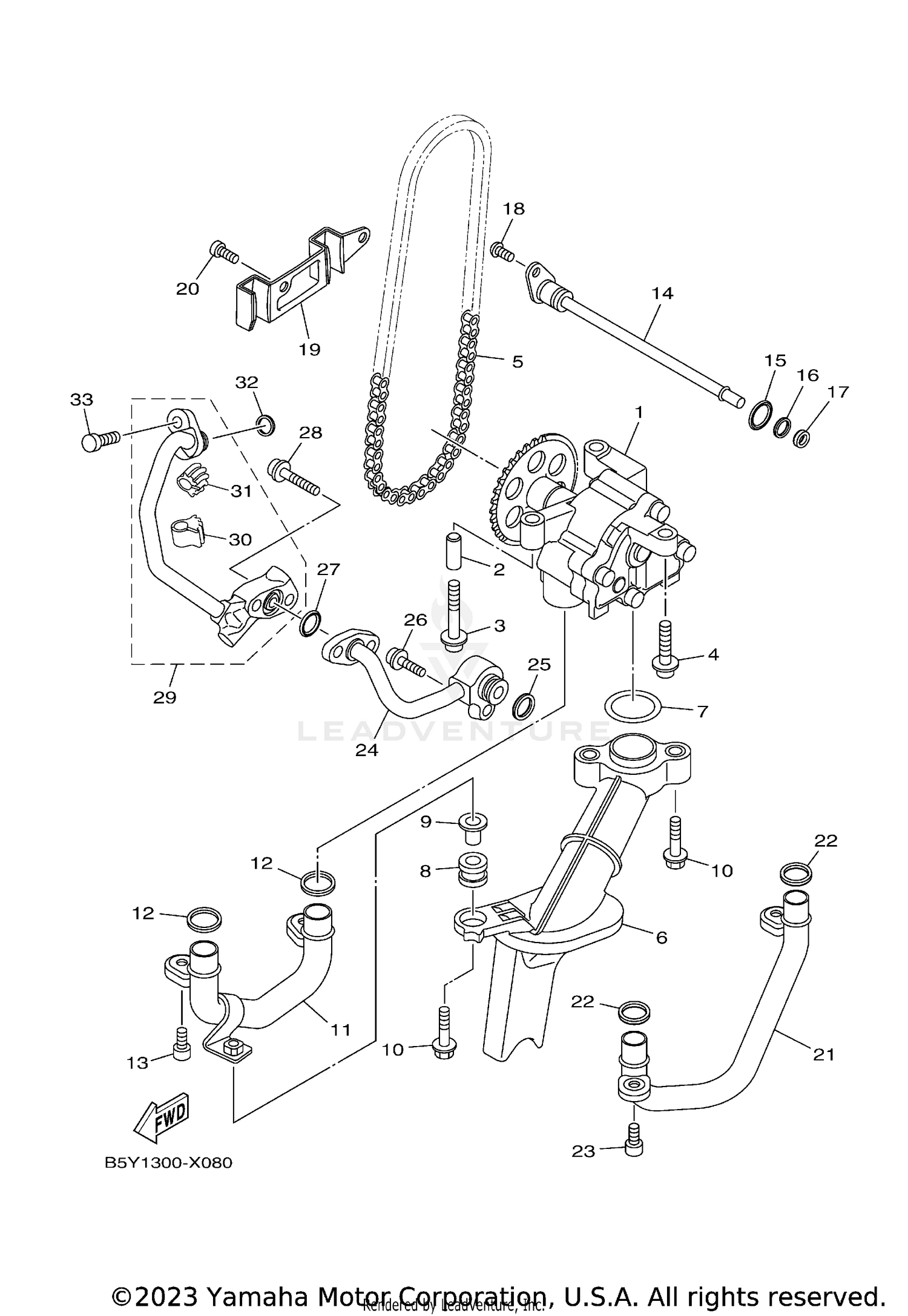

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
2CR-13300-00-00
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
91808-22019-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06432-00
Superseded by 90110-06433-00
|
$1.70 | ||
|
Unavailable |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06173-00
Superseded by 90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN
94580-31080-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER HOUSING ASS
2CR-13410-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-22M93-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GROMMET
90480-13010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, DISTANCE
5VY-13117-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06173-00
Superseded by 90110-06172-00
|
$10.49 | ||
|
Unavailable |
|||
|
#11
PIPE, OIL 1
2CR-13416-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-14003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, DELIVERY 5
2CR-1316E-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-12010-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING
93210-09525-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-06667-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW
90149-06158-00
Superseded by 90149-06156-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER
2CR-13898-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
PIPE, DELIVERY 2
2CR-13171-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-13361-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
OIL PIPE COMP. 1
2CR-13405-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
90110-06395-00
Superseded by 90110-06396-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-12790-00
|
$8.49 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-06389-00
Superseded by 90110-06388-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
DELIVERY PIPE ASSY 2
2CR-13170-00-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER
2CR-13159-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER
2CR-13593-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-09754-00
Superseded by 93210-09350-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90110-06295-00
Superseded by 91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
