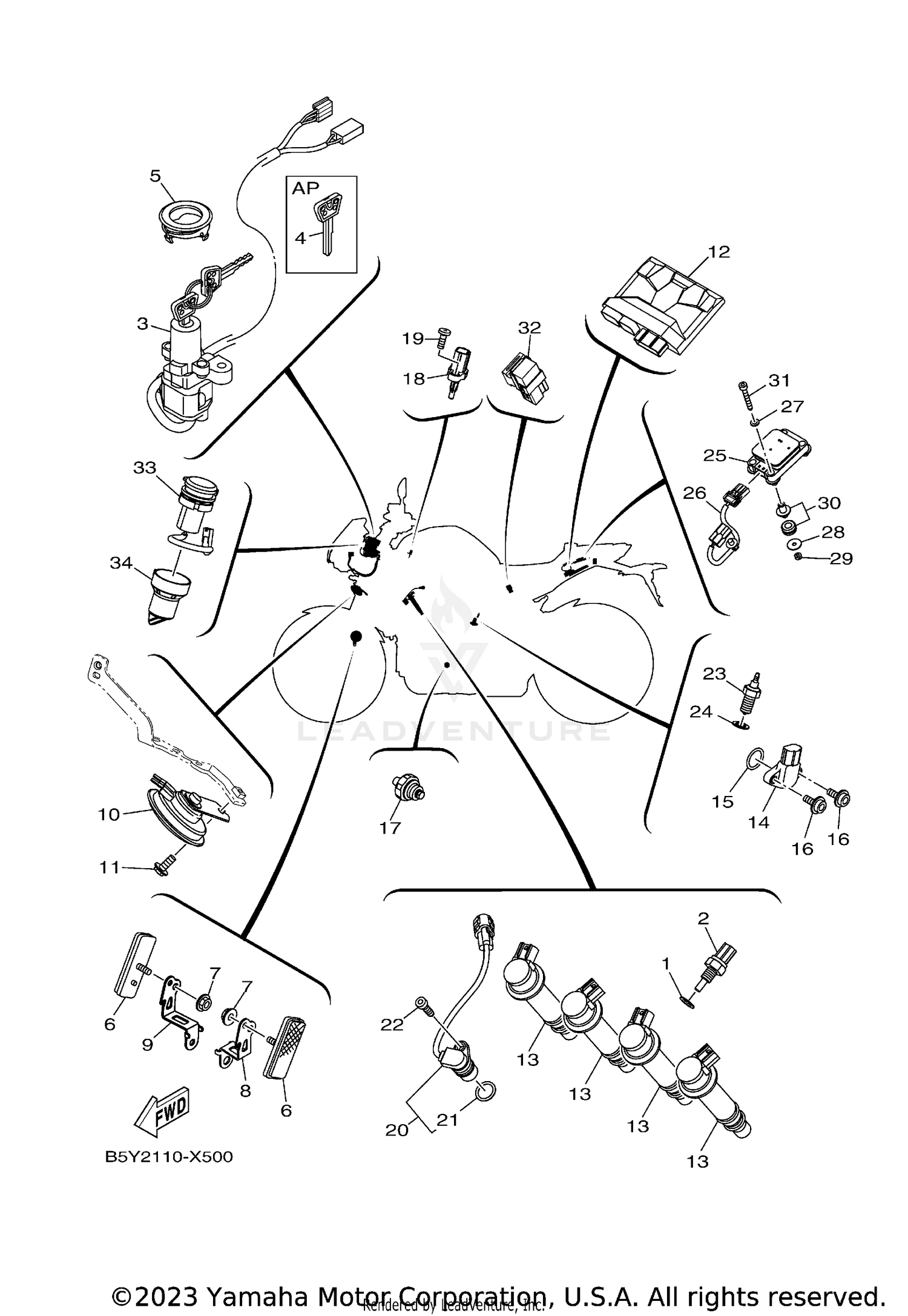

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAIN SWITCH STEERING LOCK
B5Y-82501-10-00
Superseded by B5Y-82501-11-00
|
$215.99 | ||
|
Unavailable |
|||
|
#4
BLANK KEY
4BH-82511-09-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CAP, SWITCH
36P-82552-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-05500-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRACKET, REFLECTOR 1
2CR-85112-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, REFLECTOR 2
2CR-85122-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HORN
B67-83371-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
ENGINE CONTROL UNIT ASSY
B5Y-8591A-10-00
Superseded by B5Y-8591A-11-00
|
$1,030.99 | ||
|
Unavailable |
|||
|
#13
IGNITION COIL ASSY
B67-82310-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, GEAR POSITION
2CR-85899-10-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-17008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL PRESSURE SWITCH ASSY
1WS-82504-00-00
Superseded by 1WS-82504-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, BIND
98902-05014-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR, CAM POSITION
B3L-85896-01-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
INERTIAL MEASURE, UNIT ASSY
B5Y-8593A-00-00
|
$477.99 | ||
|
Unavailable |
|||
|
#26
WIRE, SUB LEAD
B5Y-82509-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN
2CR-81162-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, U
95602-04100-00
Superseded by 95617-04100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET AND COLLAR SET
B7N-W8A8D-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#31
BOLT
91312-04030-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#32
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
TERMINAL COMP.
BD5-8254B-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, TERMINAL
BD5-81916-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
