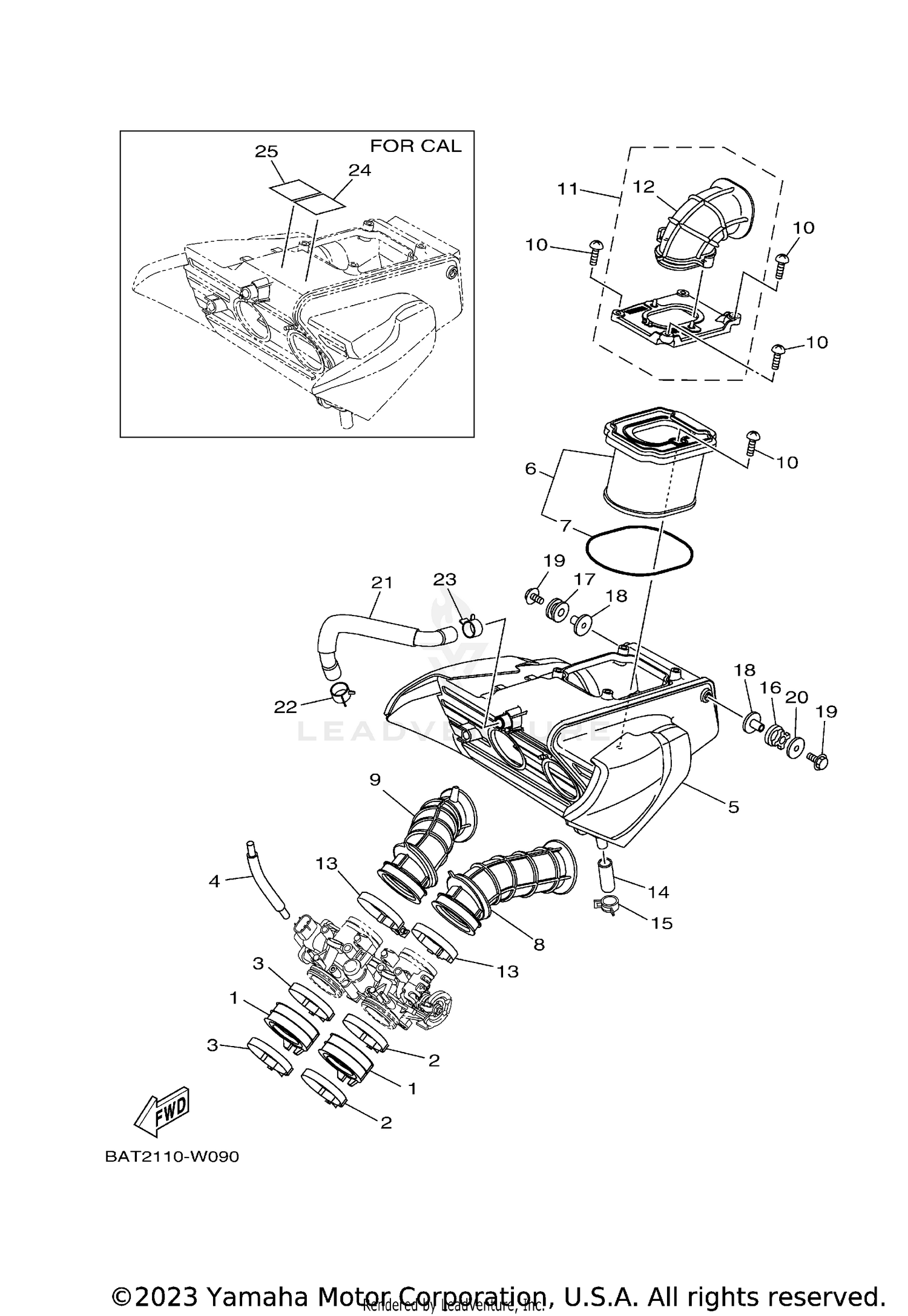

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, INTAKE 1
1WS-13635-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-56011-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-56012-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, VACUUM SENSING 1
B4T-13542-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
AIR CLEANER CASE ASSY
1WS-14401-00-00
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT ASSY, AIR CLEANER
1WS-14450-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL
1WS-14452-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUNNEL, AIR
1WS-14469-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUNNEL 2
1WS-1446C-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, ROUND TAPPING
90160-05013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUCT ASSY
B4T-14430-02-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUCT
B4T-14437-01-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE CLAMP ASSY
90450-56011-00
|
$15.49 | ||
|
Unavailable |
|||
|
#14
PIPE, DRAIN
1WS-1443E-00-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-13083-00
Superseded by 90467-13133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-15001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-15014-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-06300-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-064K6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, BREATHER 1
1WS-11166-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-17128-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-160A2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, ROUTING 2
BAT-21686-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, ROUTING
34B-21684-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
