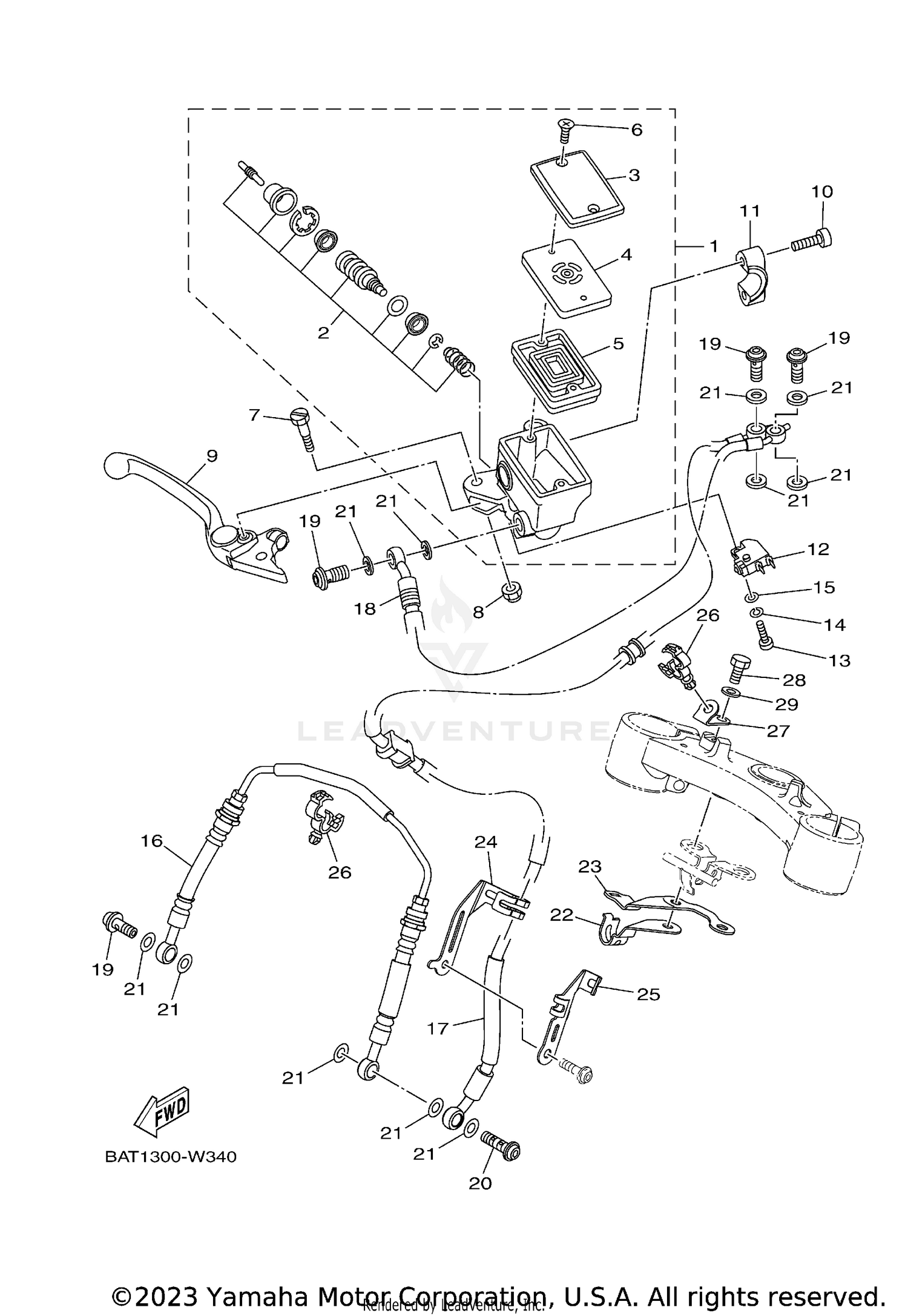

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY 2
1XB-2580A-00-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
1WS-25807-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
5VS-25852-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
5VS-25855-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
20S-25854-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
5VS-2589H-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
5VS-2589F-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, S/L
95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
LEVER 2
B90-83922-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
5VS-26332-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER CYLINDER
5VS-25867-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT STOP SWITCH AS
1HP-83980-03-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE 1
BAT-25872-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, BRAKE 2
BAT-25873-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, BRAKE 3
BAT-25874-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, UNION
90401-10172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, UNION
90401-10042-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, BRAKE HOSE 1
1XB-25875-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BRAKE HOSE
1WS-2587A-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE
BAT-25876-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, BRAKE HOSE
BAT-25886-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET
1WS-26296-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON
97027-05012-00
Superseded by 97017-05012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92907-05600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
