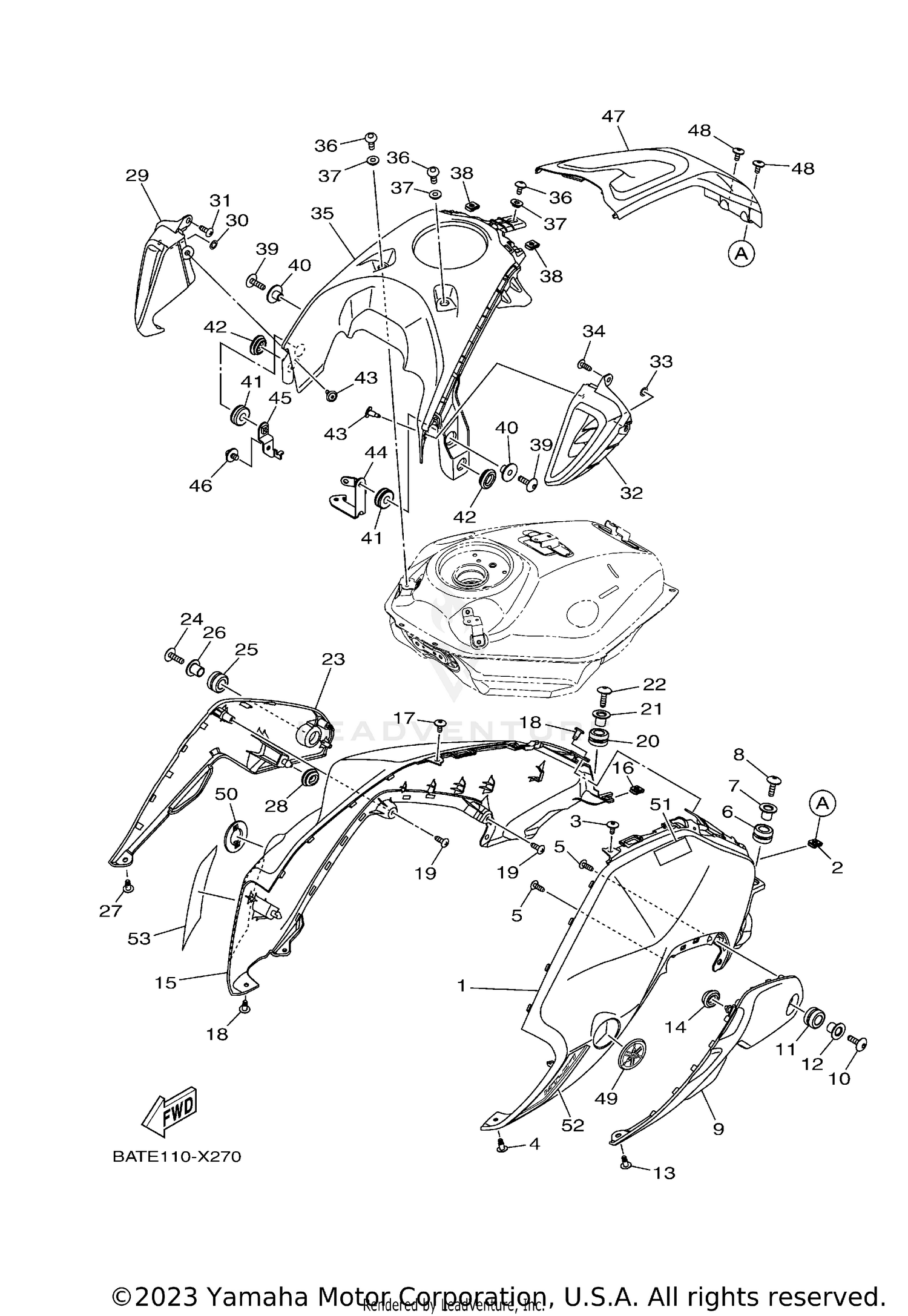

Fuel Tank 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
BAT-24129-00-P0
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, SIDE 1
BAT-24129-00-3E
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, SIDE 1
BAT-24129-00-P1
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RIVET
90269-06019-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ROUND TAPPING
90160-05012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-17007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-10107-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06087-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT, KNEE GRIP 1
BAT-24121-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06087-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
GROMMET
90480-17007-00
|
$9.49 | ||
|
Unavailable |
|||
|
#12
COLLAR
90387-10107-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
RIVET
90269-06019-00
|
$3.45 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COVER, SIDE 2
BAT-24139-00-P1
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, SIDE 2
BAT-24139-00-P0
|
$99.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
COVER, SIDE 2
BAT-24139-00-3E
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
RIVET
90269-06019-00
|
$3.45 | ||
|
Unavailable |
|||
|
#19
SCREW, ROUND TAPPING
90160-05012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
GROMMET
90480-17007-00
|
$9.49 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-10107-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-06087-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
SEAT, KNEE GRIP 2
BAT-24122-00-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06087-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
GROMMET
90480-17007-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
COLLAR
90387-10107-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
RIVET
90269-06019-00
|
$3.45 | ||
|
Unavailable |
|||
|
#28
GROMMET
90480-01558-00
|
$4.65 | ||
|
Unavailable |
|||
|
#29
SCOOP, AIR 2
BAT-2137X-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, ROUND TAPPING
90160-05012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
SCOOP, AIR 1
BAT-2137W-00-00
|
$24.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Unavailable |
|||
|
#34
SCREW, ROUND TAPPING
90160-05012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
COVER, CAP
BAT-2464E-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-05071-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
|
#39
BOLT, HEX. SOCKET BUTTON
90111-06084-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-07042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
GROMMET
90480-14452-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
GROMMET
90480-01559-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
RIVET
90269-06081-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
BRACKET, CAP
BAT-2463E-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET, SEAT
BAT-2412F-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, HEX. SOCKET BUTTON
90111-06122-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COVER, TOP
BAT-2171A-00-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$9.49 | ||
|
Unavailable |
|||
|
#49
EMBLEM
1RC-2413B-01-00
Superseded by 1RC-2413B-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#50
EMBLEM
1RC-2413B-01-00
Superseded by 1RC-2413B-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#51
LABEL, CAUTION
1TP-2118K-A2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
GRAPHIC, 1
BAT-217F1-50-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
GRAPHIC, 1
BAT-217F1-30-00
|
$14.49 | ||
|
Unavailable |
|||
|
#52
GRAPHIC, 1
BAT-217F1-40-00
|
$14.49 | ||
|
Unavailable |
|||
|
#53
GRAPHIC, 2
BAT-217F2-50-00
|
$13.49 | ||
|
Unavailable |
|||
|
#53
GRAPHIC, 2
BAT-217F2-40-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
GRAPHIC, 2
BAT-217F2-30-00
|
$14.49 | ||
|
Unavailable |
|||
