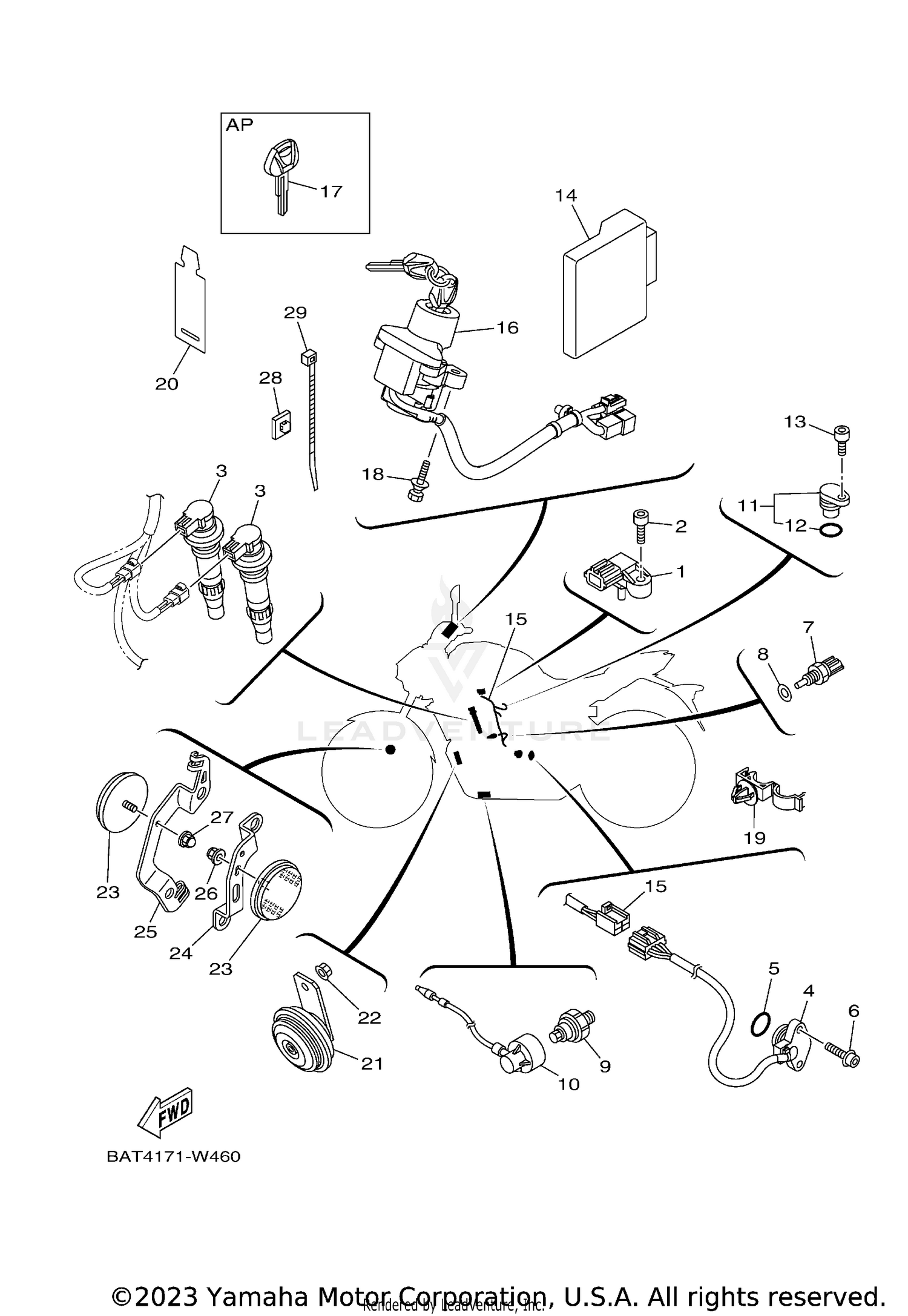

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SENSOR, PRESSURE
1WS-82380-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91312-05020-00
Superseded by 91317-05020-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
1WS-82310-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
1WS-82540-00-00
Superseded by 1WS-82540-01-00
|
$77.99 | ||
|
Unavailable |
|||
|
#5
O-RING
93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL PRESSURE SWITCH ASSY
1WS-82504-00-00
Superseded by 1WS-82504-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEAD WIRE ASSY
1WS-81315-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, BLIND
3P6-15399-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-15566-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
ENGINE CONTROL UNI
BAT-8591A-60-00
|
$573.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE CONTROL UNI
BAT-8591A-20-00
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, SUB LEAD
BAT-82309-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
MAIN SWITCH STEERING LOCK
BAT-82501-10-00
Superseded by BAT-82501-11-00
|
$194.99 | ||
|
Unavailable |
|||
|
#17
KEY, MAIN SWITCH
BAU-82511-09-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-17003-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND
BAT-82591-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
HORN
1WS-83371-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
REFLECTOR, FRONT 1
4AG-85111-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, REFLECTOR 1
1WS-85112-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, REFLECTOR
BAT-85122-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT, CAP
90176-06016-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
BASE, MOUNT
BAT-2288B-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-55002-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
