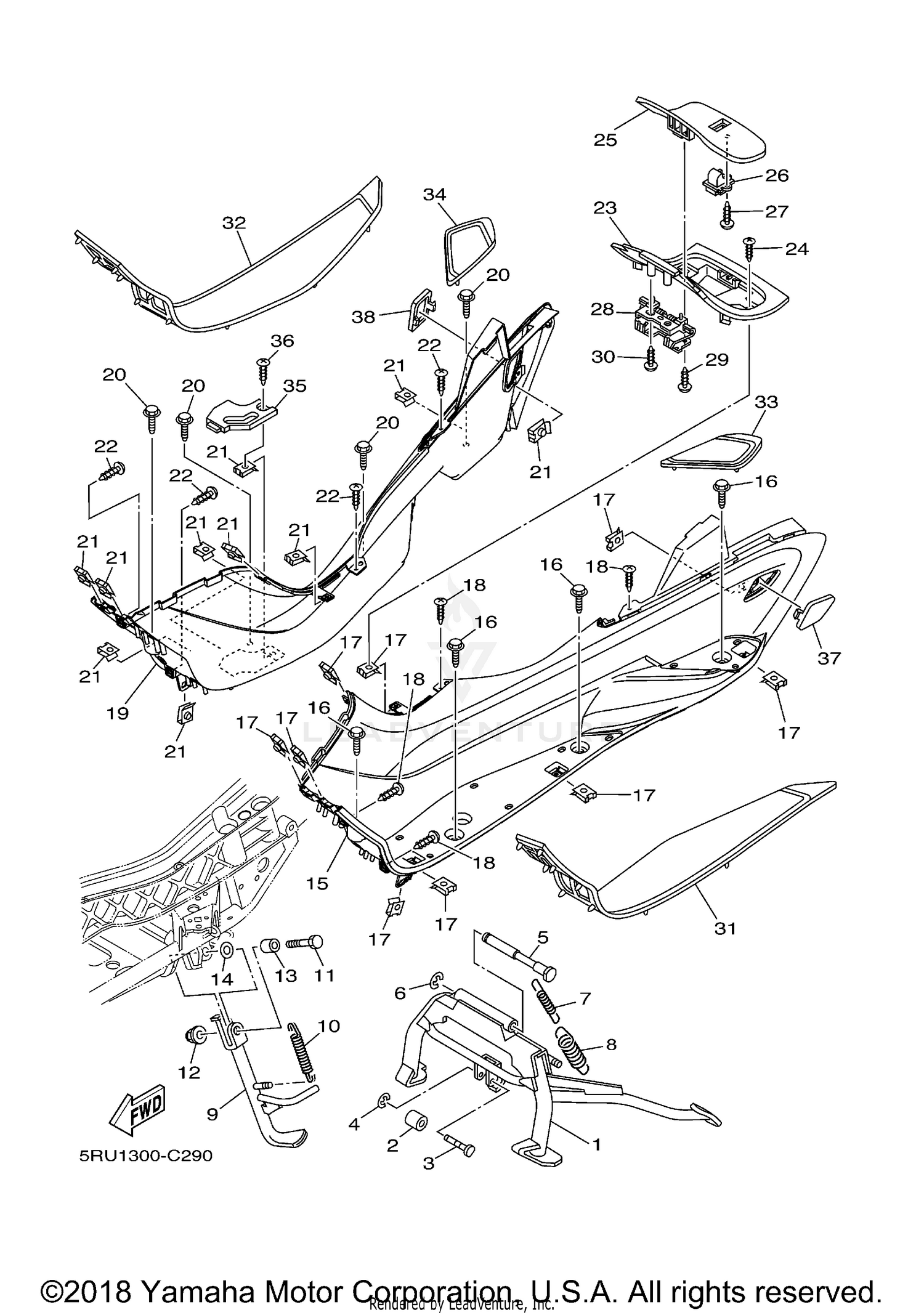

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
5RU-27111-00-00
|
$263.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER
5RU-27214-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, MAIN STAND
5RU-27112-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
99001-04600-00
Superseded by 99080-04600-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, MAIN STAND
58K-27112-02-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP, E-TYPE
93430-12008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-20010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-40002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAND, SIDE
5RU-27311-10-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-23005-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-10025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COLLAR
90387-10018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-16M00-00
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOARD, FOOTREST
5RU-27481-00-00
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06209-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, TAPPING
97702-50016-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOARD, FOOTREST 2
5RU-27488-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WITH WASHER
90119-06209-00
|
$6.49 | ||
|
Unavailable |
|||
|
#21
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Unavailable |
|||
|
#22
SCREW, TAPPING
97702-50016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#23
COVER 1
5RU-27486-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING
97702-50016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#25
LID, FUEL
5RU-274A8-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK ASSY
5GM-21780-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING
97702-40512-00
Superseded by 97780-40112-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
HINGE 4
5RU-2849E-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING
97702-40010-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TAPPING
97702-50016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#31
MAT 1
5RU-27483-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
MAT 2
5RU-27484-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
MAT 3
5RU-27493-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAT 4
5RU-27494-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER 2
5RU-27463-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, TAPPING
97702-50016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#37
CAP 1
5RU-27475-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAP 2
5RU-27476-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
