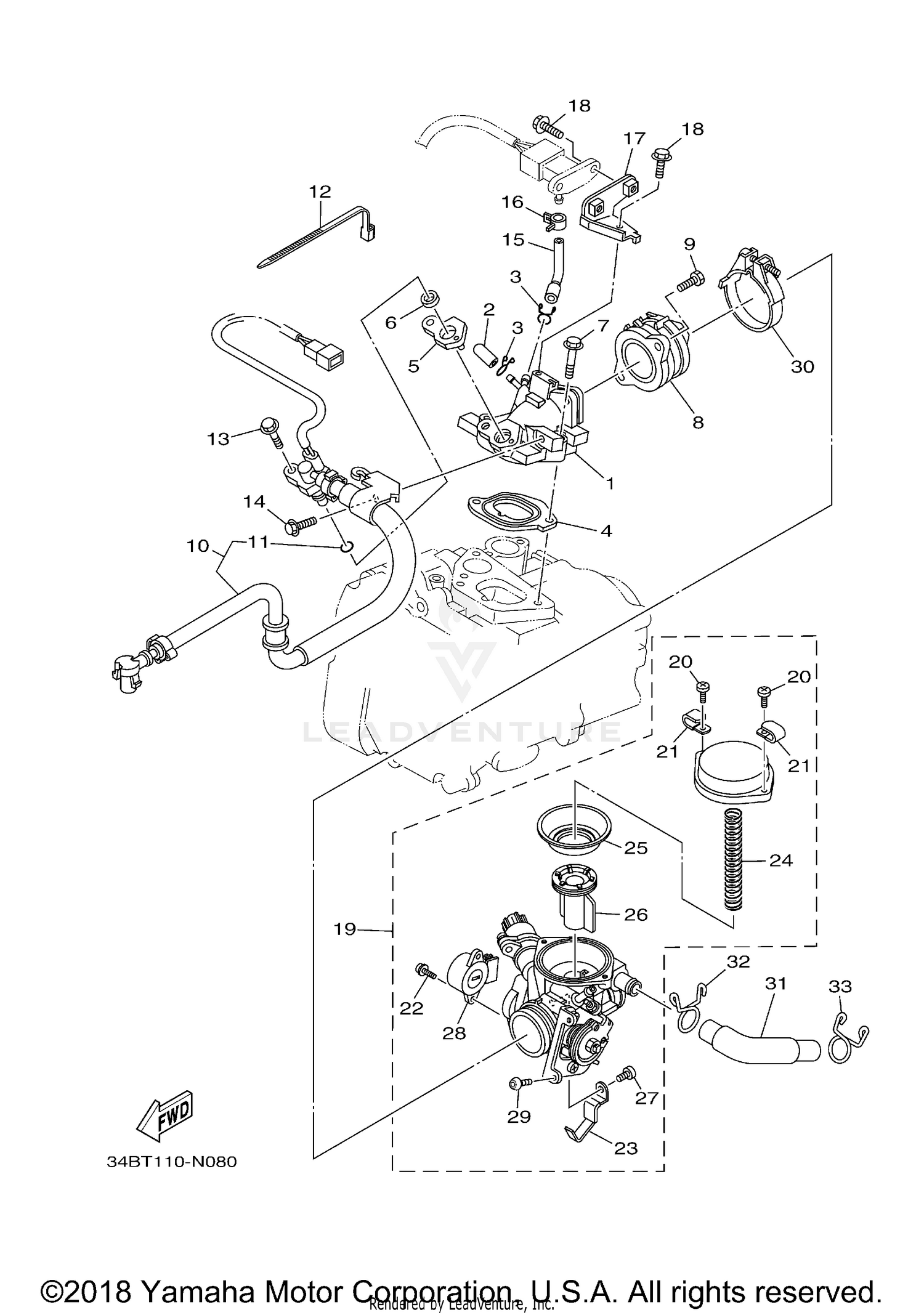

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MANIFOLD
5RU-13585-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, BLIND
5PX-13569-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
5RU-13595-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, MANIFOLD
5RU-13556-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
90430-09005-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95022-06035-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
JOINT, CARBURETOR 1
5RU-13586-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97022-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIPE INLET ASSEMBLY
5RU-13930-01-00
Superseded by 5RU-13930-02-00
|
$363.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
5CA-14147-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06122-00
Superseded by 95812-06030-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-05024-00
Superseded by 90105-05025-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, AIR
5RU-13895-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-07138-00
|
$0.99 | ||
|
Unavailable |
|||
|
#17
BRACKET 1
5RU-14291-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
THROTTLE BODY ASSY
5RU-13750-30-00
Superseded by 5RU-13750-31-00
|
$532.99 | ||
|
Unavailable |
|||
|
#20
SCREW
5LB-14216-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90462-05059-00
Superseded by 90462-10236-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
5CA-14216-00-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP 2
5LP-15484-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
5RU-14286-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DIAPHRAGM ASSY 1
5RU-14368-01-00
Superseded by 5RU-14368-02-00
|
$34.99 | ||
|
Unavailable |
|||
|
#26
SUCTION PISTON
5RU-14313-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
5LB-14216-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#28
THROTTLE SENSOR ASSY
5RU-85885-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, BUTTON HEAD
92012-05012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE CLAMP ASSY
90450-57014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, AIR 2
5RU-13892-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-18196-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-20030-00
Superseded by 90467-20M15-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
