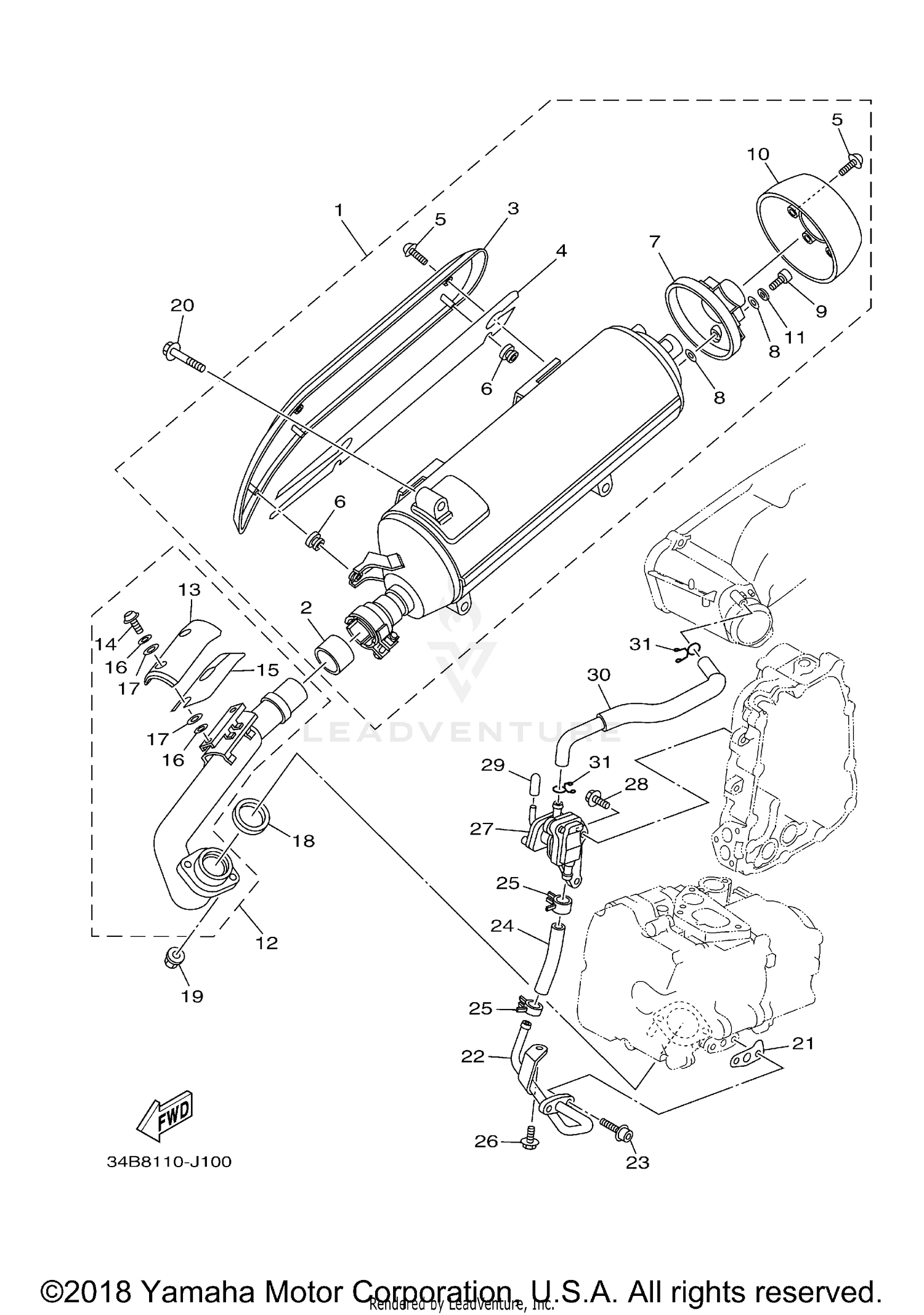

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER ASSY 1
5RU-14710-00-00
|
$1,025.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, MUFFLER
4EL-14714-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, MUFFLER 1
5RU-14718-00-00
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, MUFFLER 2
5RU-14728-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEX. SOCKET BUTTON
90111-06015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-10332-00
Superseded by 90480-10017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, PROTECTOR
5GJ-14629-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PROTECTOR
5GM-14766-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91380-06012-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
5RU-14799-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
EXHAUST PIPE ASSY 1
5RU-14610-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, EXHAUST PIPE
5RU-14628-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET BUTTON
90111-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, PROTECTOR 1
5RU-1465R-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PROTECTOR
5GM-14766-00-00
|
$3.60 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-062P7-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, EXHAUST PIPE
4TR-14613-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-100A4-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
5RU-14815-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 1
5RU-14871-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-06107-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BEND 1
5RU-14881-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-19065-00
Superseded by 90467-19051-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
AIR INDUCTION SYSTEM ASSY
5RU-14803-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, BLIND
5PX-13569-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE, BEND 2
5RU-14882-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-16195-00
Superseded by 90467-15M14-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
