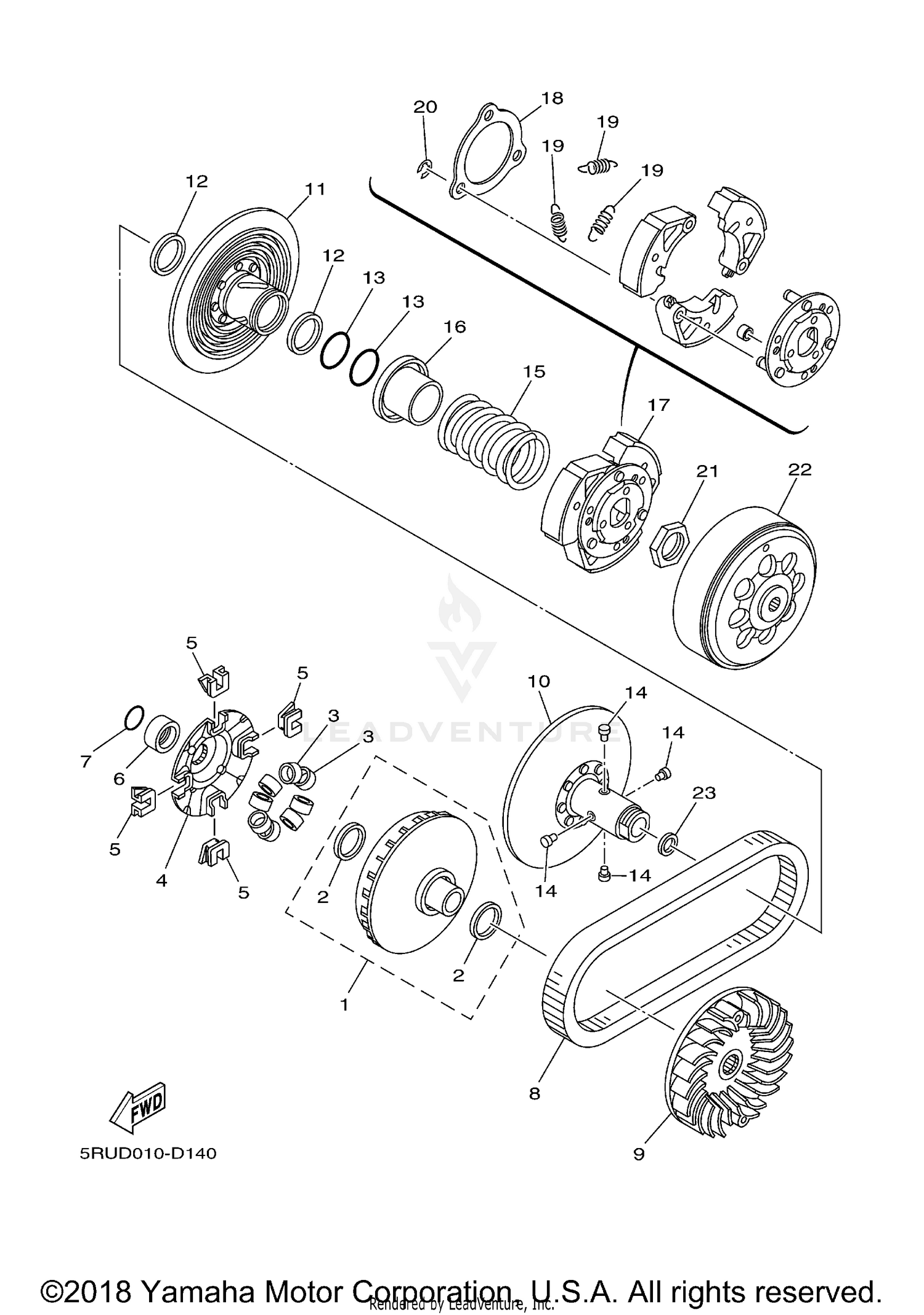

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY SHEAVE CAP COMP.
5RU-W1762-12-00
|
$298.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL
93101-35001-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WEIGHT
5RU-17632-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM
5RU-17623-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SLIDER
5VU-17653-00-00
Superseded by 5VU-17653-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-27001-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-27ME3-00
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
V-BELT
5RU-17641-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHEAVE, PRIMARY FIXED
5RU-17611-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SECONDARY FIXED SHEAVE COMP.
5RU-17660-01-00
|
$426.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SECONDARY SLIDING SHEAVE
5RU-17670-01-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93104-41119-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-43713-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, GUIDE
4CW-17664-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, COMPRESSION
90501-550A1-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING SEAT COMP.
5RU-17690-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH CARRIER ASSY
5RU-16620-10-00
|
$427.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, WEIGHT THRUST
5RU-16523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, CLUTCH WEIGHT 1
5RU-16626-01-00
Superseded by 5RU-16626-02-00
|
$4.90 | ||
|
Unavailable |
|||
|
#20
CIRCLIP
99001-08600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90170-36279-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLUTCH HOUSING COMP.
5RU-16611-00-00
|
$442.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,PLATE
90201-17485-00
Superseded by 90201-173U5-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
