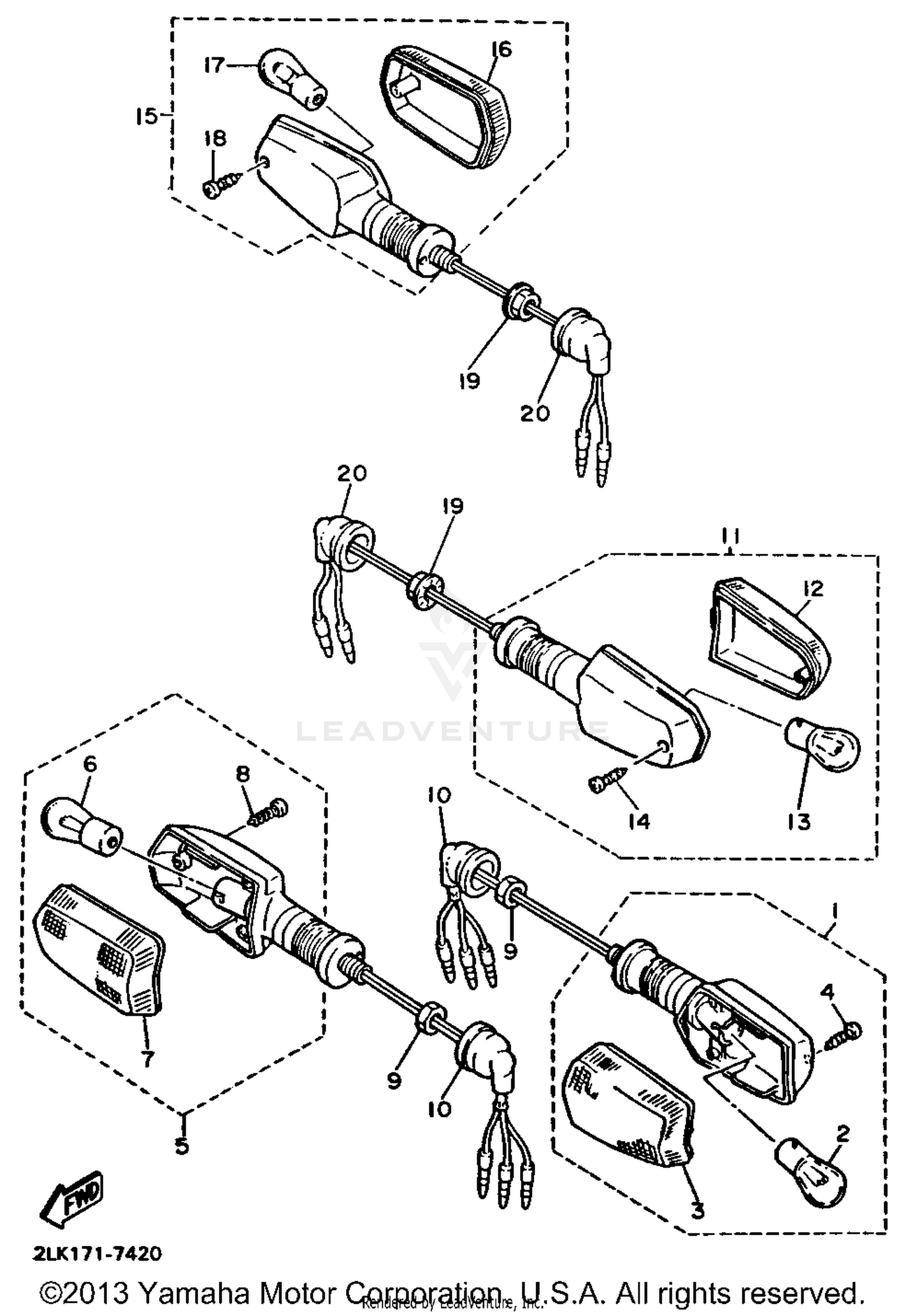

Turnsignal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FLASHER LIGHT ASSEMBLY 1
1LJ-83310-20-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, FLASHER
51L-83332-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FRONT FLASHER LIGHT ASSEMBLY 2
1LJ-83320-20-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
LENS, FLASHER 2
51L-83342-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#9
NUT
95306-12600-00
Superseded by 95337-12600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
18G-83365-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
REAR FLASHER LIGHT ASSY 1
1UF-83330-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LENS, FLASHER 2
51L-83342-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#13
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
REAR FLASHER LIGHT ASSY 2
1UF-83340-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LENS, FLASHER
51L-83332-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
BULB (12V-32CP)
256-83311-70-XX
|
$2.35 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING
97706-40620-00
Superseded by 97707-40520-00
|
$10.49 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE
95706-12500-00
Superseded by 90179-12588-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP
18G-83365-00-00
|
$21.99 | ||
|
Unavailable |
|||
