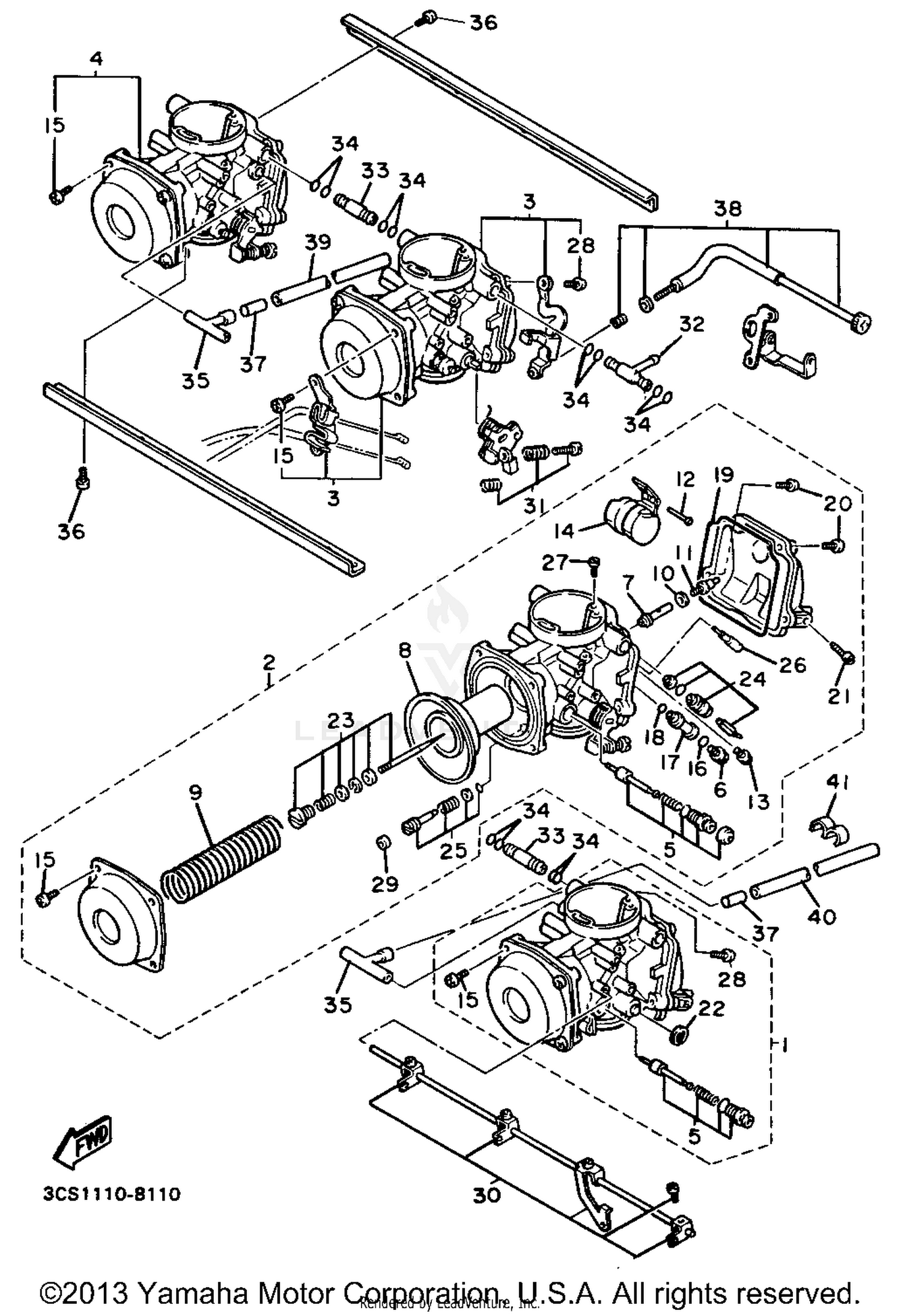

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
3CS-14901-00-00
|
$255.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 2
3CS-14902-00-00
|
$255.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 3
3CS-14903-00-00
|
$255.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 4
3CS-14904-00-00
|
$255.99 | ||
|
Unavailable |
|||
|
#5
STARTER SET
1FN-1410A-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#
STARTER SET
1AE-1410A-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, MAIN (#105)
620-14231-21-A0
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN#107.5
620-1423A-72-00
Superseded by 620-1423A-72-A0
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOZZLE, MAIN
1AE-14141-90-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM ASSEMBLY
1AE-14940-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, DIAPHRAGM
2LH-14933-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#10
WASHER, MAIN JET
137-14153-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW
1AE-14565-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, FLOAT
353-14186-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
1FN-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLOAT
1WG-14985-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1AE-14227-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HOLDER
2LH-14261-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#18
GASKET
1AE-14237-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING
1FN-14147-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG, DRAIN
12R-14191-00-00
|
$17.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLIP
812-14137-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NEEDLE SET
2NK-1490J-00-00
|
$28.22 | ||
|
Unavailable |
|||
|
#
NEEDLE SET
2NK-1490J-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#24
NEEDLE VALVE SET
3CF-14107-12-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PILOT SCREW SET
12R-14105-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
JET, PILOT (#15)
3H1-14142-15-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET, MAIN (#125)
830-14231-25-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98511-04016-00
Superseded by 98517-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP
3F9-14118-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
STARTER LEVR SET, 1
1FN-1490L-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#31
STOP SCREW SET
1AE-1490K-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#32
NIPPLE
1HX-14251-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NIPPLE
16H-14251-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
36Y-14147-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE
1AE-14197-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Unavailable |
|||
|
#37
RING
1FN-14918-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
THROTTLE SCREW SET
2LE-14103-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#39
PIPE
2NK-14197-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#40
PIPE
2NK-14197-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#41
CLAMP
90464-10075-00
Superseded by 90464-09M31-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
