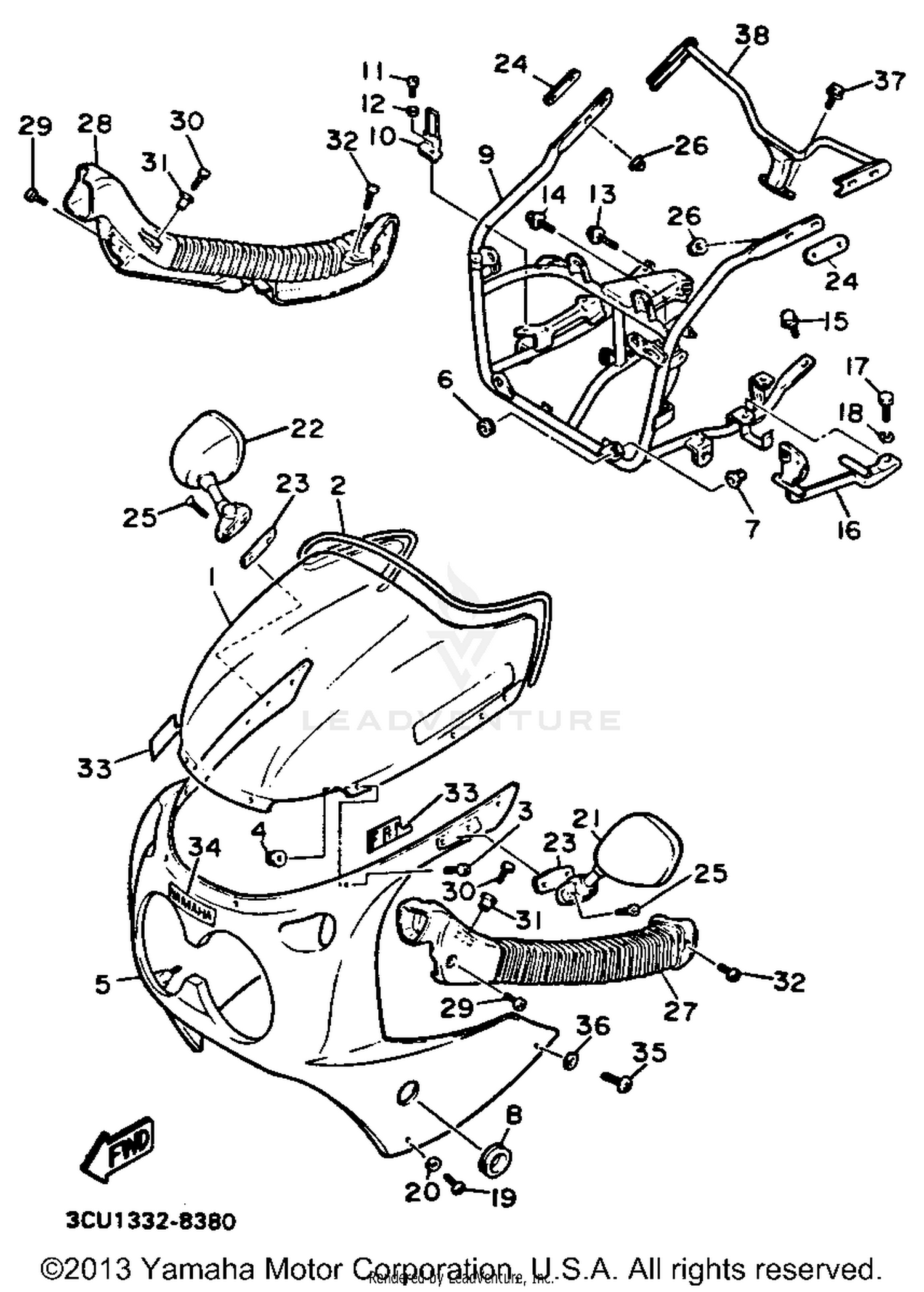

Fairing Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
2LJ-28381-00-00
|
$297.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MOLE 4
36Y-28348-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, ROUND HEAD
90150-05020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, FRONT UPPER 1
2GH-2835G-00-GE
|
$626.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-14229-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-06500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-35526-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY 1
2GH-28356-00-00
|
$413.99 | ||
|
Unavailable |
|||
|
#10
PROTECTOR 1
2GH-2834V-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE
95026-08040-00
Superseded by 95027-08040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (95026-08025-00)
99999-01790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BRACKET
2GH-21238-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT,HEX. SOCKET BUT
90110-05079-00
Superseded by 90111-05059-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
REAR VIEW MIRROR ASSY (LEFT)
2GH-26280-00-00
Superseded by 3HE-26280-01-00
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
MIRROR ASSEMBLYASSY (RIGHT)
2GH-26290-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, MIRROR FITTING 1
1AE-26298-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, MIRROR FITTING
3CV-26299-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT HEAD
98706-06030-00
Superseded by 98707-06030-00
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, CROWN
90176-06047-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUCT 1
2GH-2838N-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#28
DUCT 2
2GH-2838R-00-00
|
$69.48 | ||
|
Unavailable |
|||
|
#29
SCREW, BINDING
90154-06046-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, BINDING
90149-06184-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, BINDING
90154-06043-00
|
$2.10 | ||
|
Unavailable |
|||
|
#33
EMBLEM
2KR-28368-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#34
EMBLEM, YAMAHA
99233-00025-00
Superseded by 99243-00100-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW (1FN)
90149-06218-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE (122-21725-00)
90202-07015-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (SMALL HEAD)
95023-06012-00
Superseded by 95024-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
STAY, MIRROR 1
2YJ-2831W-00-00
|
$114.99 | ||
|
Unavailable |
|||
