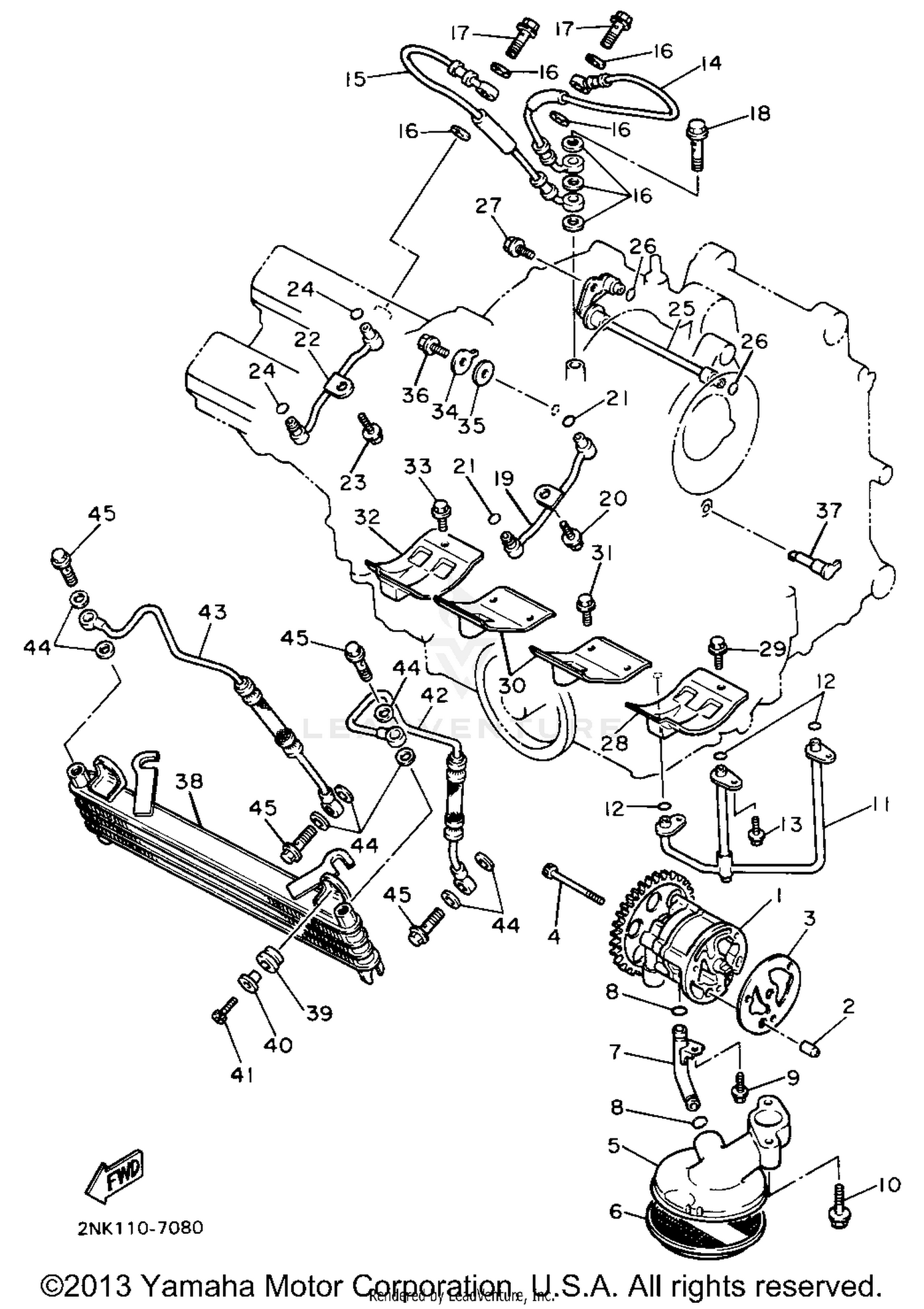

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
2NK-13300-01-00
|
$173.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-08012-00
Superseded by 91808-12024-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, PUMP COVER
2GH-13329-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91316-06080-00
Superseded by 91317-06080-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOUSING, STRAINER
2GH-13412-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#6
STRAINER, OIL
2GH-13411-00-00
Superseded by 1AE-13411-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, OIL DRAIN 1
2GH-13431-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#8
O-RING (2GH)
93210-11765-00
|
$2.86 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95026-06010-00
Superseded by 95027-06010-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE
95026-06030-00
Superseded by 95027-06030-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PIPE, DELIVERY 1
1AE-13161-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#12
O-RING
93210-06714-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
HOSE, OIL 1
2NK-1316F-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#15
HOSE, OIL 2
2NK-1316G-00-00
|
$72.79 | ||
|
Unavailable |
|||
|
#16
GASKET
90430-10171-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UNION
90401-10044-00
Superseded by 90401-10038-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, DELIVERY 3
2GH-13181-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#21
O-RING
93210-06632-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIPE, DELIVERY 4
2GH-13191-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-06632-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
PIPE, DELEVERY 5
1AE-1316E-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#26
O-RING
93210-07135-00
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#28
PLATE, BUFFLE 1
2GH-15123-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#30
PLATE, BUFFLE 2
1AE-15124-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#32
PLATE, BUFFLE 3
2GH-15133-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-060K2-00
|
$2.50 | ||
|
Unavailable |
|||
|
#35
GASKET
90430-06195-00
Superseded by 1AE-13475-00-00
|
$1.65 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE
95811-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
NOZZLE
1AE-13454-00-00
|
$13.40 | ||
|
Unavailable |
|||
|
#38
OIL COOLER ASSEMBLY
2GH-13470-00-00
|
$445.99 | ||
|
Unavailable |
|||
|
#39
GROMMET
90480-12475-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-067K8-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
HOSE, OIL 1
2NK-13464-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#43
HOSE, OIL 2
2NK-13465-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#44
GASKET
90430-12202-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, UNION
90401-12122-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
