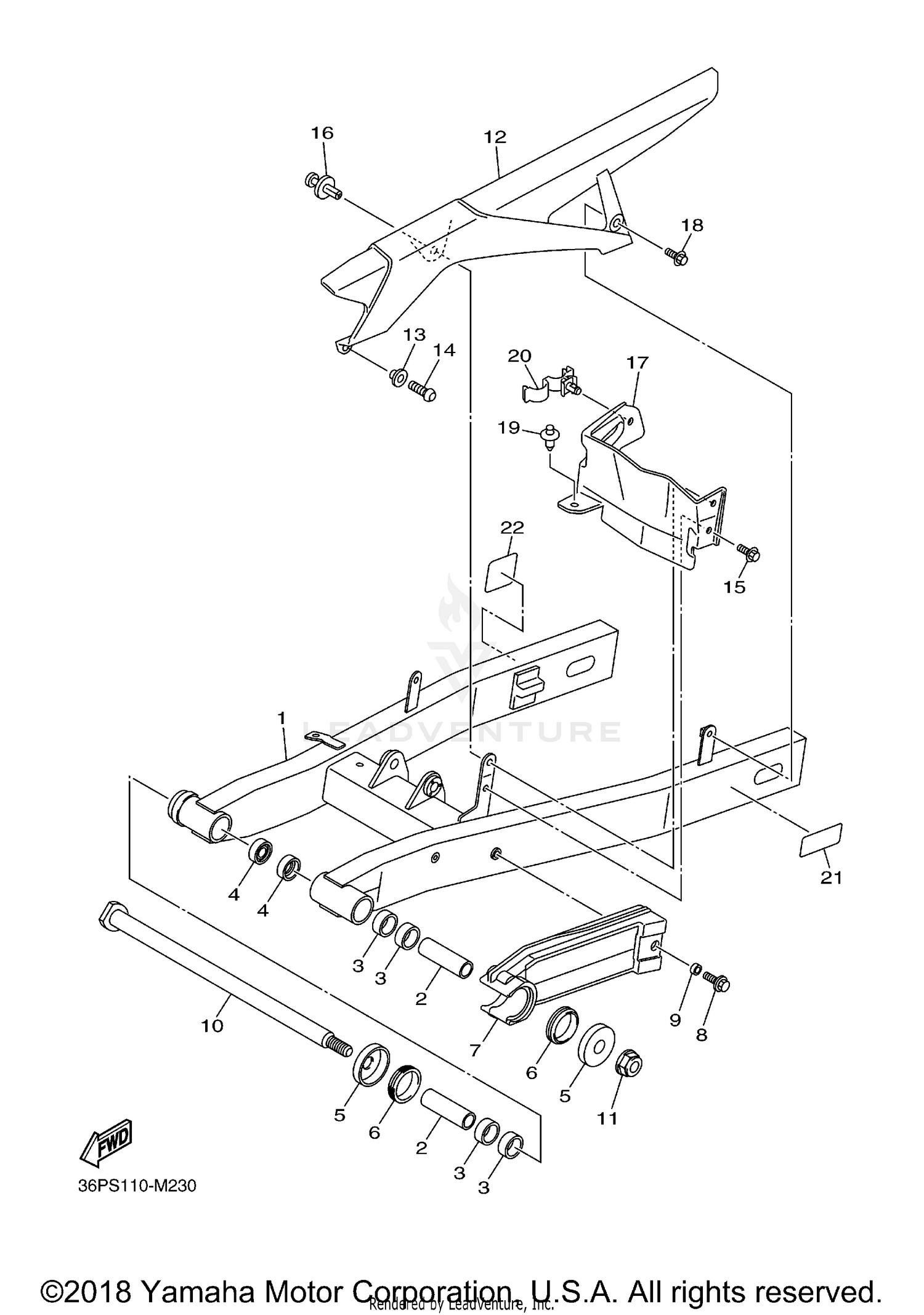

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
20S-22110-30-00
|
$491.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH 2
5VK-22124-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93317-22262-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (DC 22-28-8)
93106-22019-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER
30X-2219X-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (35-41-8)
93108-35004-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SEAL, GUARD
20S-22151-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-06147-00
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COLLAR
90387-06133-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
1AE-22141-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-14012-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, CHAIN
20S-22311-00-00
Superseded by 20S-22311-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06130-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92012-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, WITH WASHER
90119-06154-00
Superseded by 90119-06155-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER, DUST
20S-22325-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, WITH WASHER
90119-06154-00
Superseded by 90119-06155-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
RIVET
90269-08001-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLAMP
90464-16011-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
LABEL, TIRE
3XW-21668-A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, ROUTING 2
5SL-21686-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
