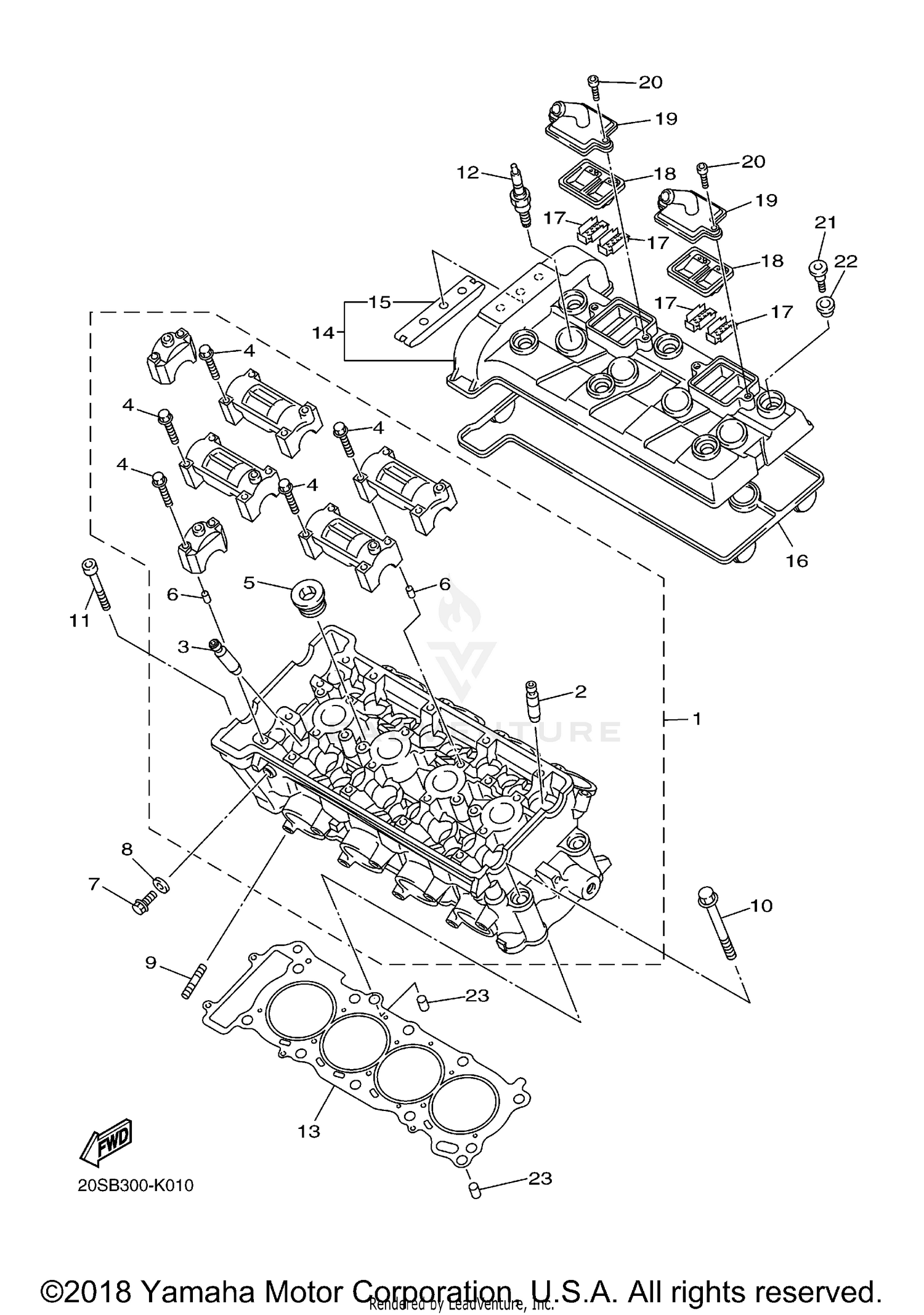

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
20S-11101-00-00
|
$1,706.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5EB-11133-10-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
20S-11134-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-20090-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95022-08012-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD
95612-08625-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-10003-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91312-06060-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CR9E NGK SPLUG 4PK
94701-00318-00
Superseded by CR9-E0000-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#13
GASKET, CYLINDER HEAD 1
20S-11181-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CYLINDER HEAD 1
1B3-11191-10-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET, HEAD COVER 1
20S-11193-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE
5SL-1482K-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
REED VALVE ASSY
5SL-14890-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, CASE
5SL-14899-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT
90109-066F0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER, MOUNT 1
5VY-1111G-00-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
