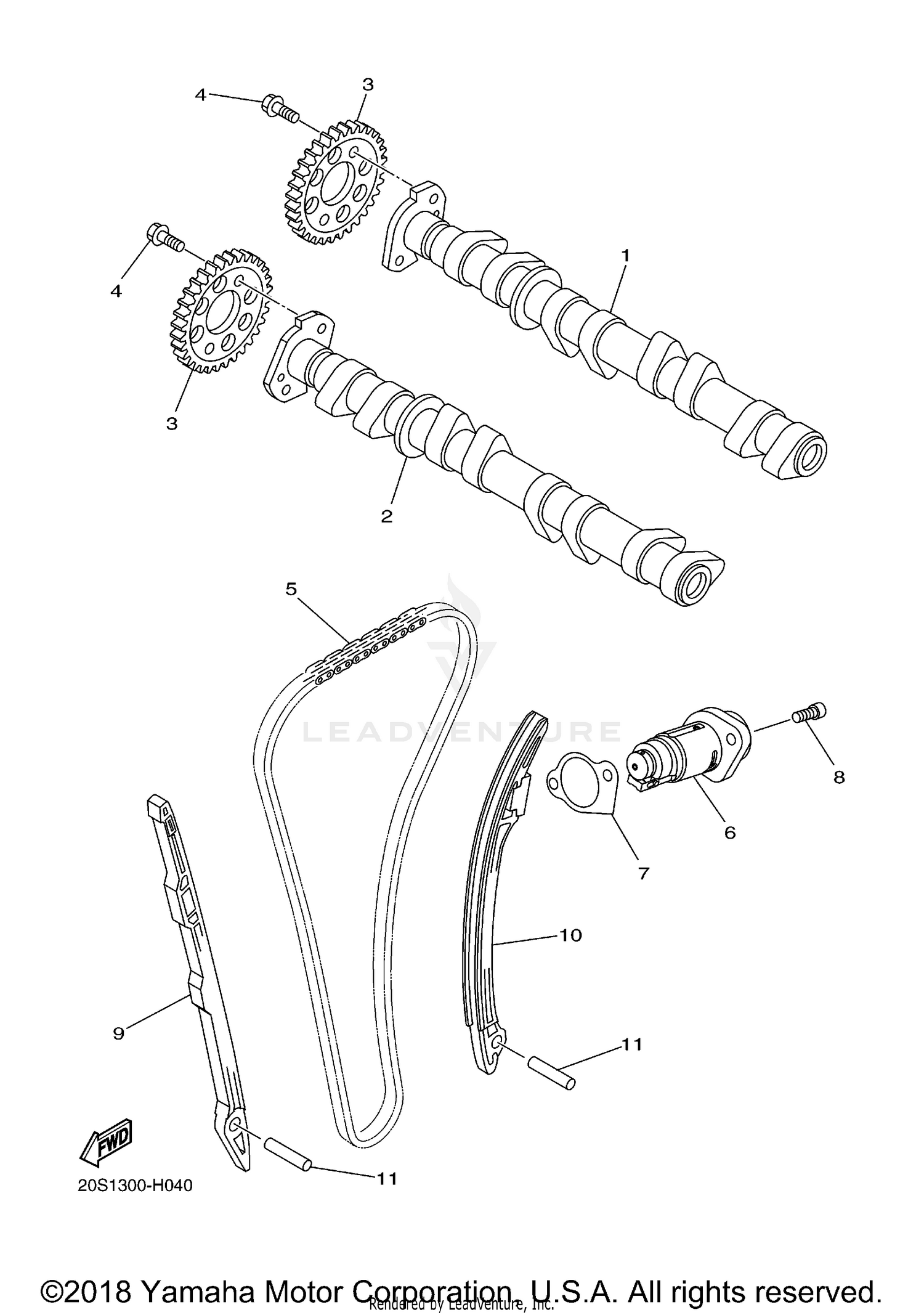

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
20S-12170-00-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT ASSY 2
20S-12180-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, CAM CHAIN
20S-12176-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-07004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN (98XRH2010-120N2)
94591-68120-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER ASSY, CAM CHAIN
20S-12210-10-00
Superseded by 20S-12210-11-00
|
$171.99 | ||
|
Unavailable |
|||
|
#7
GASKET, TENSIONER CASE
2C0-12213-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06335-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, CHAIN 1
2C0-12251-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 2
13S-12252-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93607-44002-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
