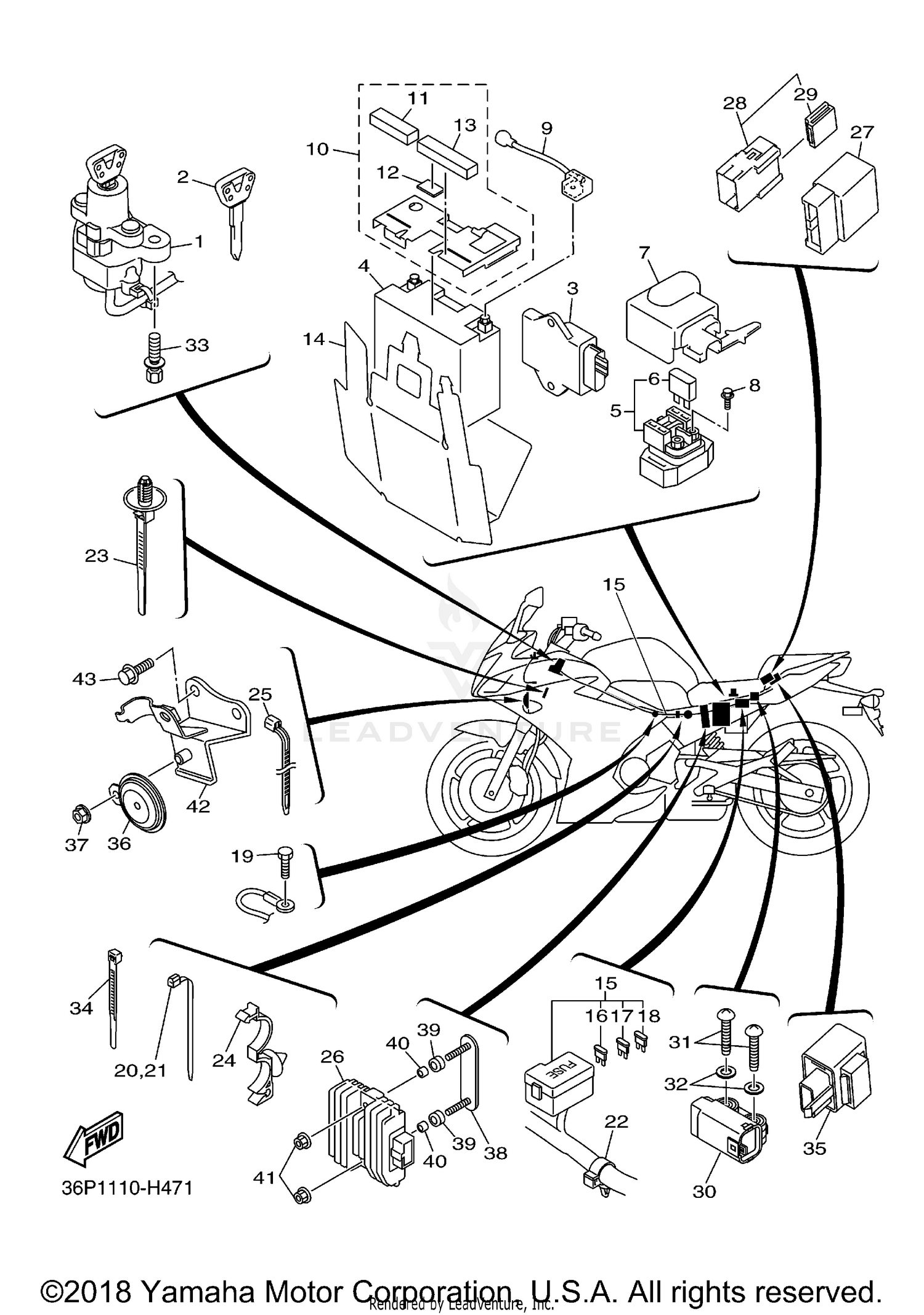

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN SWITCH STEERING LOCK
36P-82501-00-00
Superseded by 36P-82501-01-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BLANK KEY
4BH-82511-09-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
ENGINE CONTROL UNIT ASSY
36P-8591A-10-00
|
$601.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GT12B4 GS BATTERY -
4TX-82100-02-00
Superseded by GT1-2B400-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STARTER RELAY ASSY
4SV-81940-12-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE (30A-BL)
1AE-82151-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, LEAD WIRE
20S-82119-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE, PLUS LEAD
20S-82115-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BATTERY COVER ASSY
20S-82160-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
5VK-21746-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
5HN-2139X-00-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, PLATE
90520-15002-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, BATTERY
20S-82122-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE HARNESS ASSY
36P-82590-00-00
|
$545.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE (20A-BL)
5JJ-82151-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91380-06012-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-13077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-13077-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-20213-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-20010-00
|
$3.50 | ||
|
Unavailable |
|||
|
#25
CLAMP
90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
RECTIFIER & REGULATOR ASSY
5SL-81960-00-00
|
$252.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
RELAY ASSY (G8R-30Y-W4)
5VK-81950-40-00
Superseded by 5VK-81950-43-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, RELAY
5JJ-81952-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$96.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SCREW, ROUND TAPPING
90160-04009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-04030-00
|
$2.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT
90109-08195-00
Superseded by 90109-08196-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90465-15011-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
FLASHER RELAY ASSY
3GM-83350-01-00
Superseded by 3GM-83350-03-00
|
$88.99 | ||
|
Unavailable |
|||
|
#36
HORN
20S-83371-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, FLANGE
95702-08500-00
|
$1.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BRACKET, REAR STAY 2
20S-21689-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET
90480-16007-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-064T3-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
NUT, FLANGE
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BRACKET, HORN
20S-23377-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95802-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
