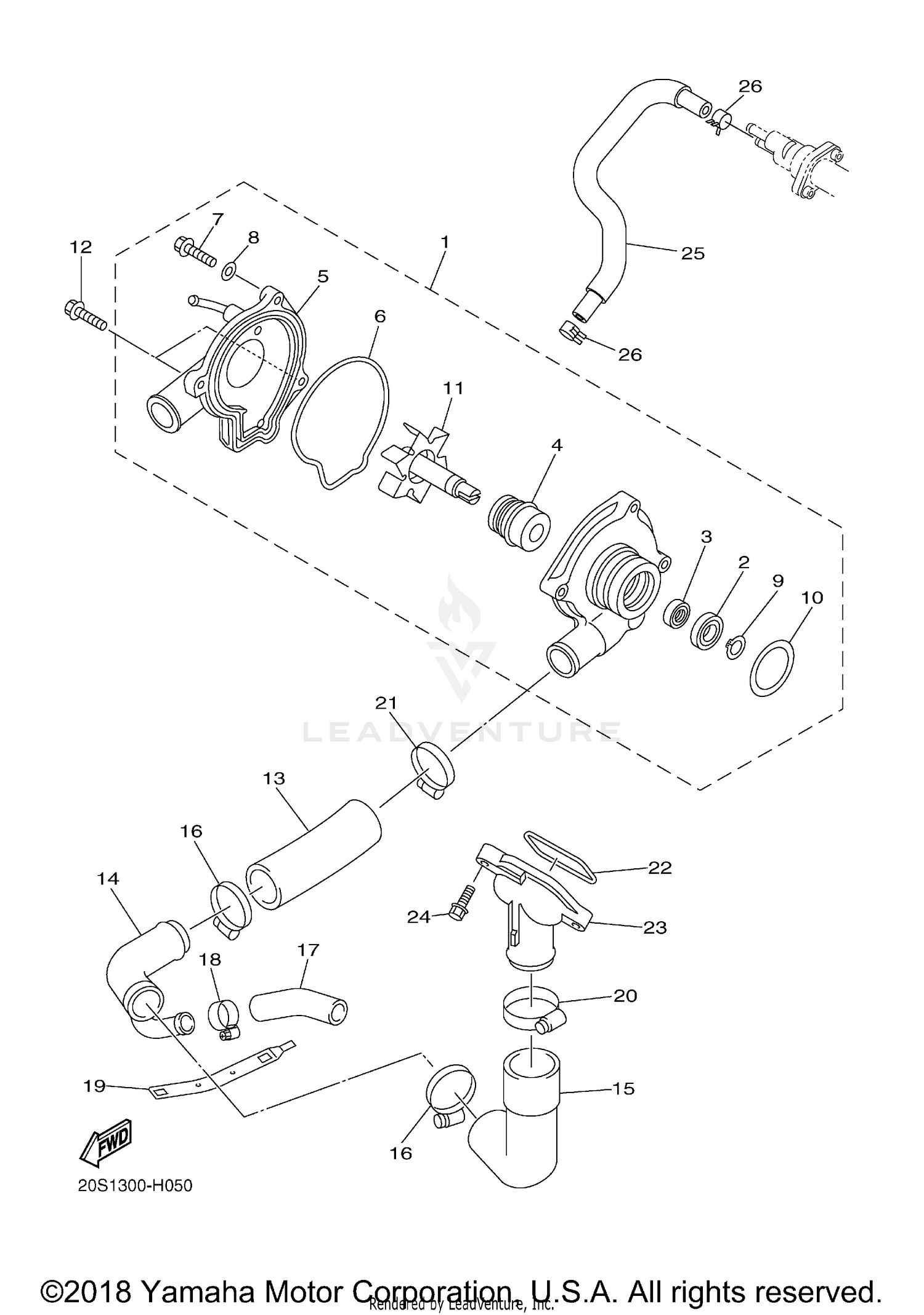

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
20S-12420-00-00
Superseded by 20S-12420-01-00
|
$292.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
OIL SEAL
93101-12173-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
4C8-12438-00-00
|
$53.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
COVER, HOUSING
5SL-12422-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
5EB-12439-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (SMALL HEAD)
95024-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING
93210-33133-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
IMPELLER SHAFT ASSY
20S-12450-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06086-00
Superseded by 91314-06040-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 4
4NK-12579-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, HOSE 1
20S-12581-01-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE 2
5EB-12577-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-35001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 5
5SL-12588-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
COVER 2
5GV-1246E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE CLAMP ASSY
90450-38003-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, HOSE
90450-32006-00
Superseded by 90460-20190-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-46001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT 1
5EB-12469-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLG.(SMALL HEAD)
90105-06053-00
Superseded by 95024-06020-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
HOSE 1
5VX-1243A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-110A2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
