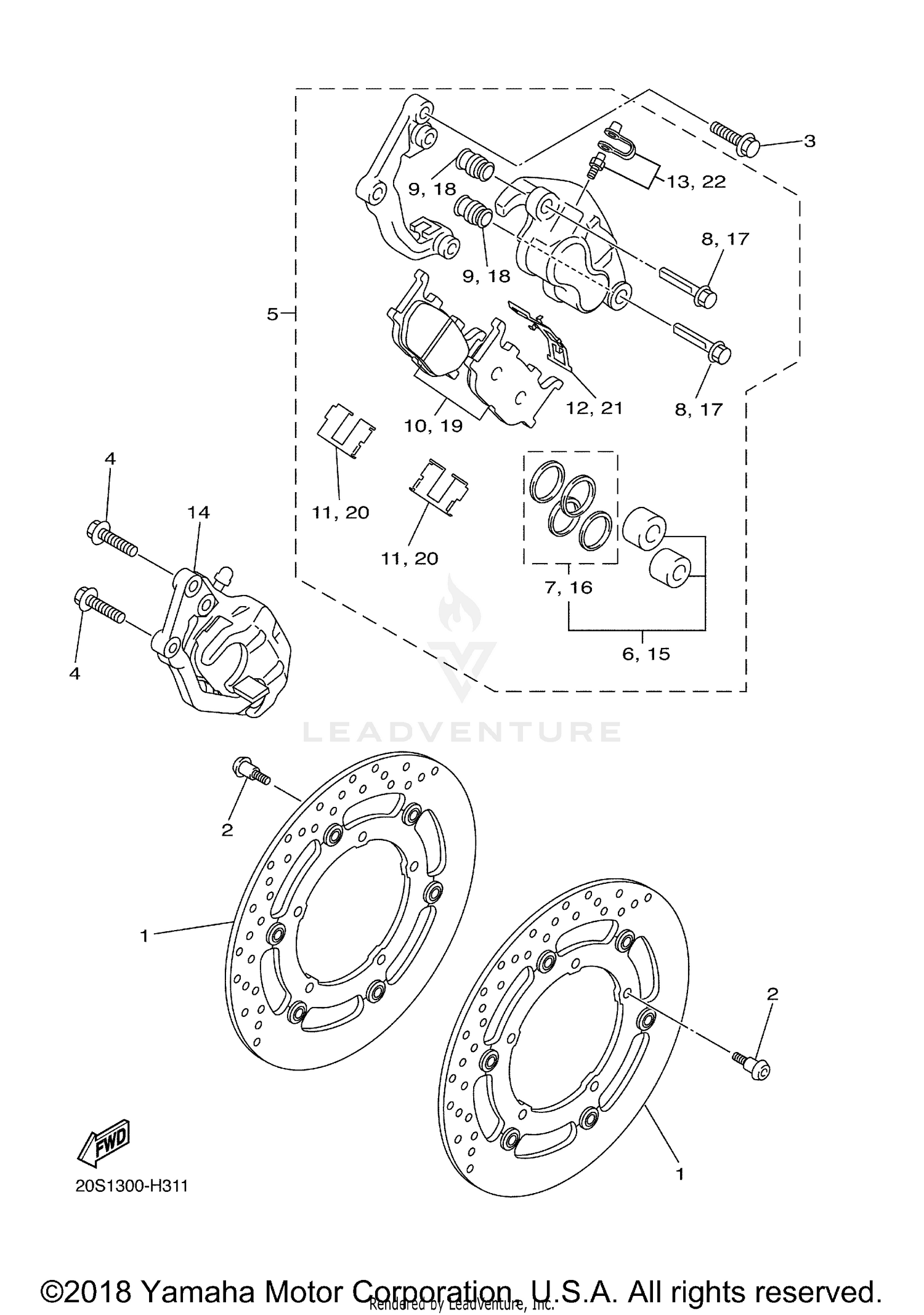

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
20S-2581T-00-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-064G6-00
Superseded by 90109-06254-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-10638-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT, WASHER BASED
90105-10638-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
CALIPER ASSY (LEFT)
5VX-2580T-00-00
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
5KS-W0057-00-00
Superseded by 5KS-25802-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
4FU-W0047-00-00
Superseded by 4HC-25803-50-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SLIDE
5JW-25914-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT 2
4TT-25937-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRAKE PAD KIT
5VX-W0045-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUPPORT, PAD
4BP-25919-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, ANTI RATTLE
3YX-25929-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CALIPER ASSY (RIGHT)
5VX-2580U-00-00
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON ASSY, CALIPER
5KS-W0057-00-00
Superseded by 5KS-25802-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#16
CALIPER SEAL KIT
4FU-W0047-00-00
Superseded by 4HC-25803-50-00
|
$66.99 | ||
|
Unavailable |
|||
|
#17
PIN, SLIDE
5JW-25914-10-00
|
$24.99 | ||
|
Unavailable |
|||
|
#18
BOOT 2
4TT-25937-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#19
BRAKE PAD KIT
5VX-W0045-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#20
SUPPORT, PAD
4BP-25919-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#21
SPRING, ANTI RATTLE
3YX-25929-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#22
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
Unavailable |
|||
