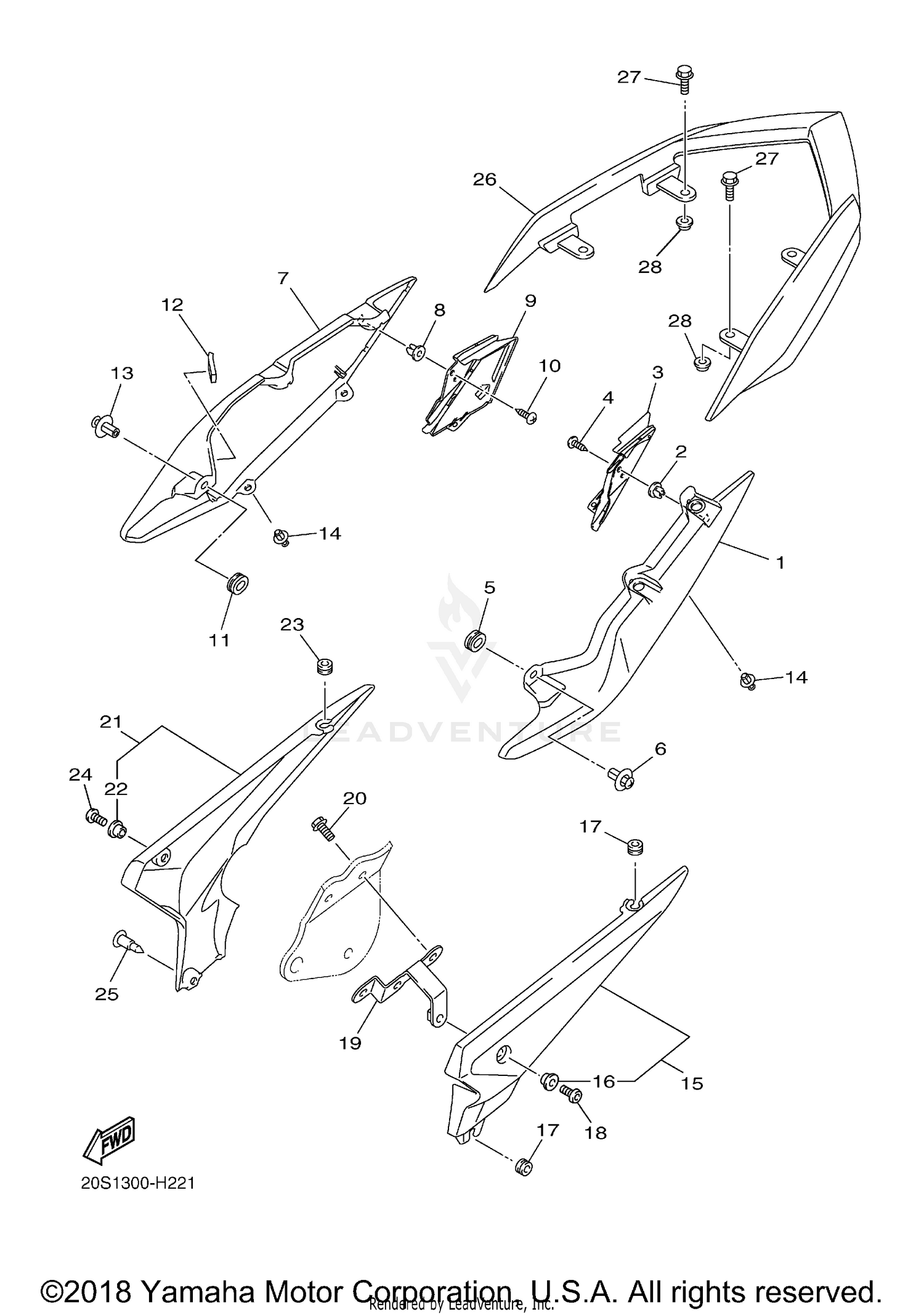

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
20S-21711-00-P3
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-08005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, REAR FENDER 1
20S-2163A-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
5PW-2174X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COVER, SIDE 2
20S-21721-00-P3
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-08005-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
COVER, REAR FENDER 2
20S-2163E-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$9.49 | ||
|
Unavailable |
|||
|
#11
DAMPER
5PW-2174X-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
DAMPER, LOCATING 2
4C8-24182-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIVET
90269-07076-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
RIVET
90269-07077-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SIDE COVER ASSY 3
20S-21730-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-06130-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-10334-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BRACKET 7
20S-2172U-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SIDE COVER ASSY 4
20S-21740-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06130-00
|
$10.49 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-10334-00
|
$10.49 | ||
|
Unavailable |
|||
|
#24
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.65 | ||
|
Unavailable |
|||
|
#25
RIVET
90269-07008-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
HANDLE, SEAT
20S-24773-00-00
Superseded by 20S-24773-01-00
|
$267.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92012-08020-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
COLLAR
90387-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
