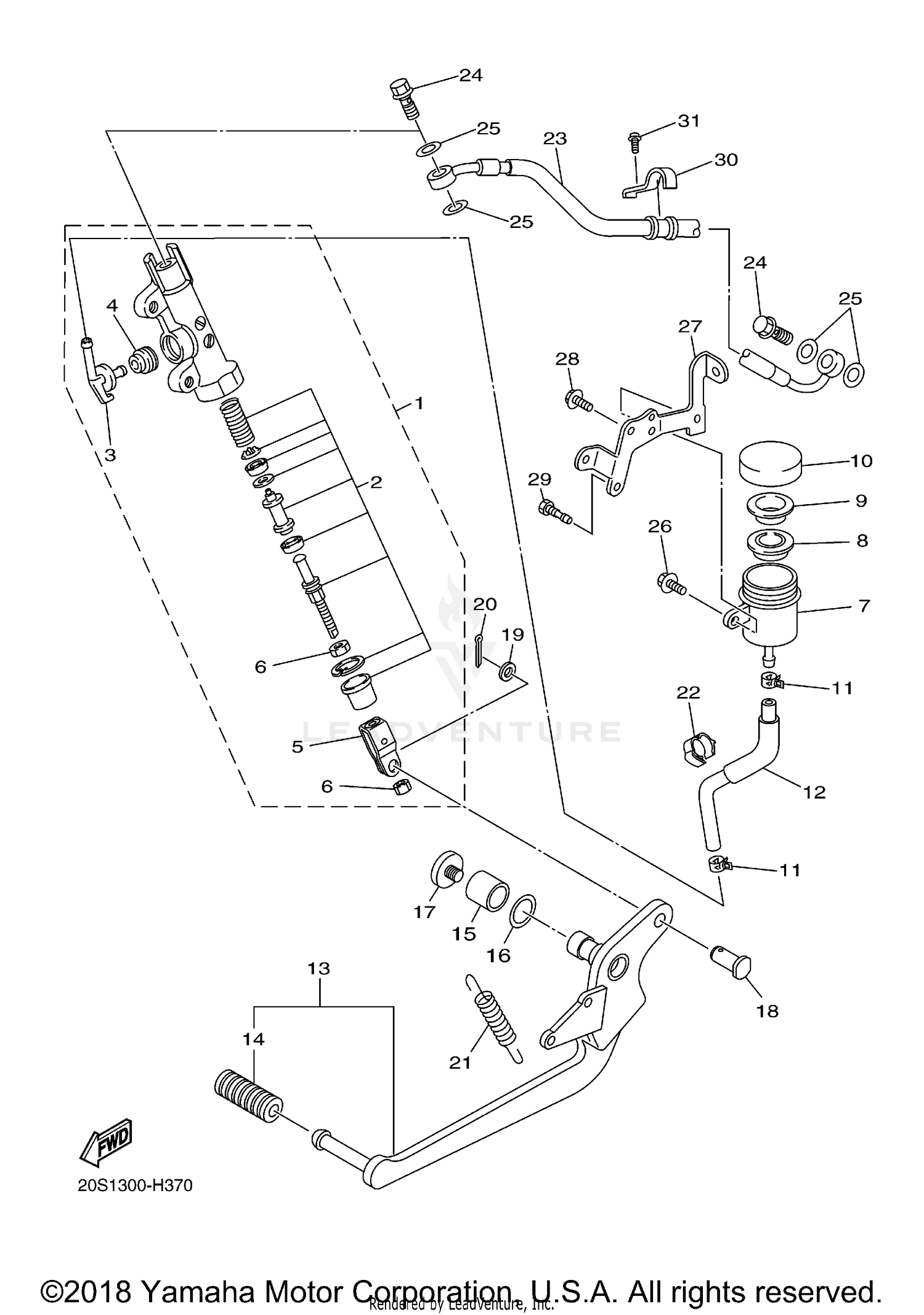

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR MASTER CYLINDER ASSY.
2D1-2583V-00-00
|
$230.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5VX-W0042-51-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
. .JOINT
2D1-2582A-00-00
Superseded by 2D1-2582A-01-00
|
$110.99 | ||
|
Unavailable |
|||
|
#4
O-RING
4BP-2585F-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT
4BP-27222-02-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90170-08010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK, RESERVOIR
4P5-25894-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIAPHRAGM, RESERVOIR
5SL-25854-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, DIAPHRAGM
5SL-25855-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, RESERVOIR
5SL-25852-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-11044-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE, RESERVOIR
20S-25895-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
20S-27200-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SHIFT PEDAL
5EB-18113-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH
90386-14171-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, WAVE
90206-14086-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET
90110-06249-00
Superseded by 90110-06119-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
90240-08005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08066-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN. COTTER
91402-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SPRING, TENSION
90506-23008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-16003-00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, BRAKE 5
20S-2581K-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, UNION
90401-10020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
90430-10005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-06137-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, RESERVE TANK
20S-21228-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SCREW, HEXAGON
90153-06034-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, BRAKE HOSE
20S-2587A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
