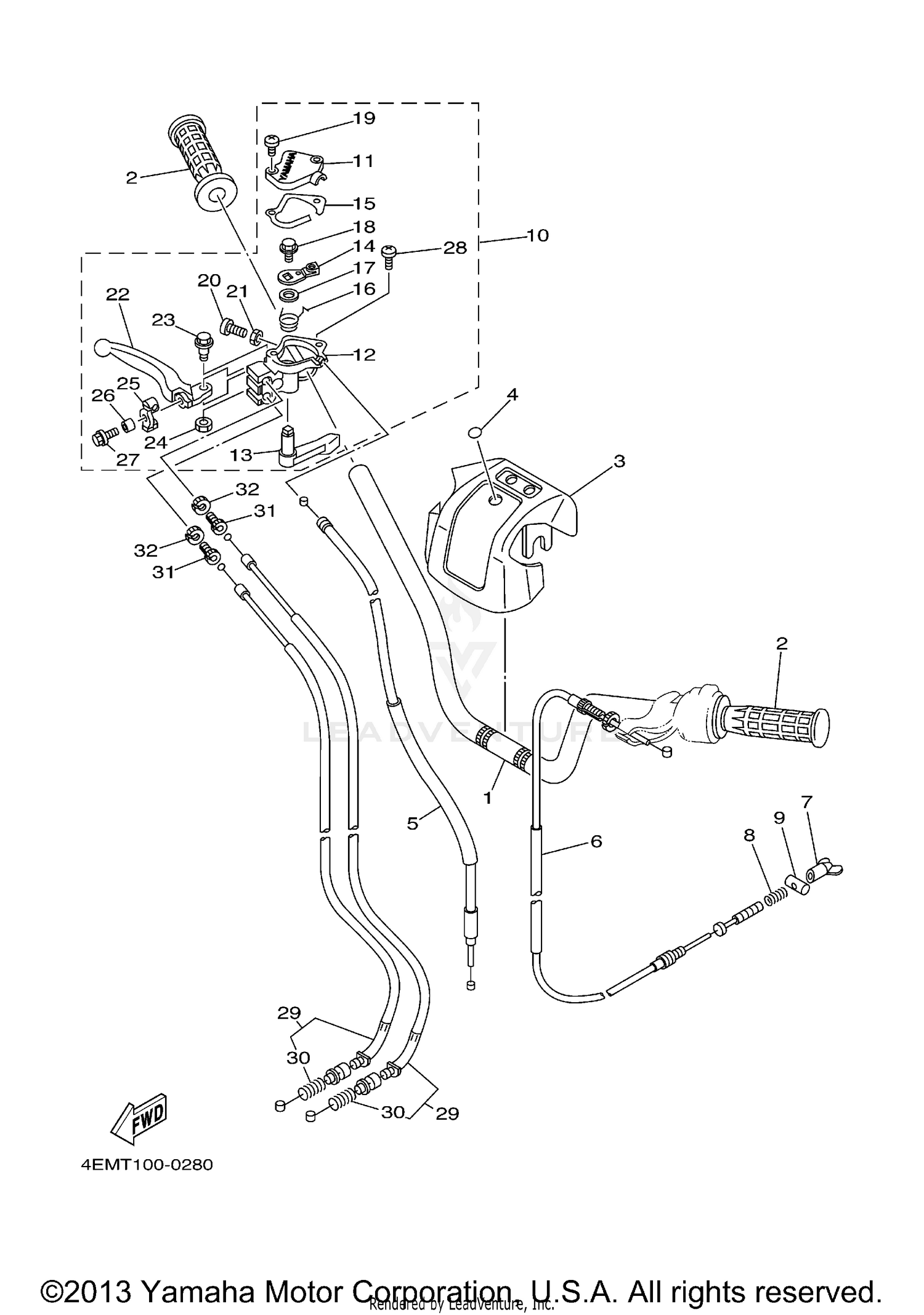

Steering Handle - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING
3GB-26111-00-00
Superseded by 87A-23811-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
3GB-26241-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
3GD-26124-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUNING FORK MARK
5GT-2836B-00-00
Superseded by 5GT-2836B-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, THROTTLE 1
3GB-26311-01-00
Superseded by 3GB-26311-03-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE, BRAKE 1
3GB-26341-01-00
|
$56.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, ADJUSTING
20E-26343-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-10782-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
90249-12008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
THROTTLE LEVER ASSY
3GB-26250-01-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, GEAR
3GB-2628F-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY, THROTTLE
3GB-2625E-01-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, THROTTLE
3GB-2625G-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, THROTTLE
3GB-2625H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
3GB-2628G-01-00
Superseded by 3GB-2628G-02-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, TORSION
90508-10775-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-145M4-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95807-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98507-04016-00
Superseded by 98517-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER 2
3GB-83922-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-061F3-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
JOINT, CABLE
3GB-26347-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-066V8-00
Superseded by 90387-06761-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CABLE, BRAKE
3GB-26361-02-00
Superseded by 3GB-26361-04-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, COMPRESSION
90501-08511-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90123-08106-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
