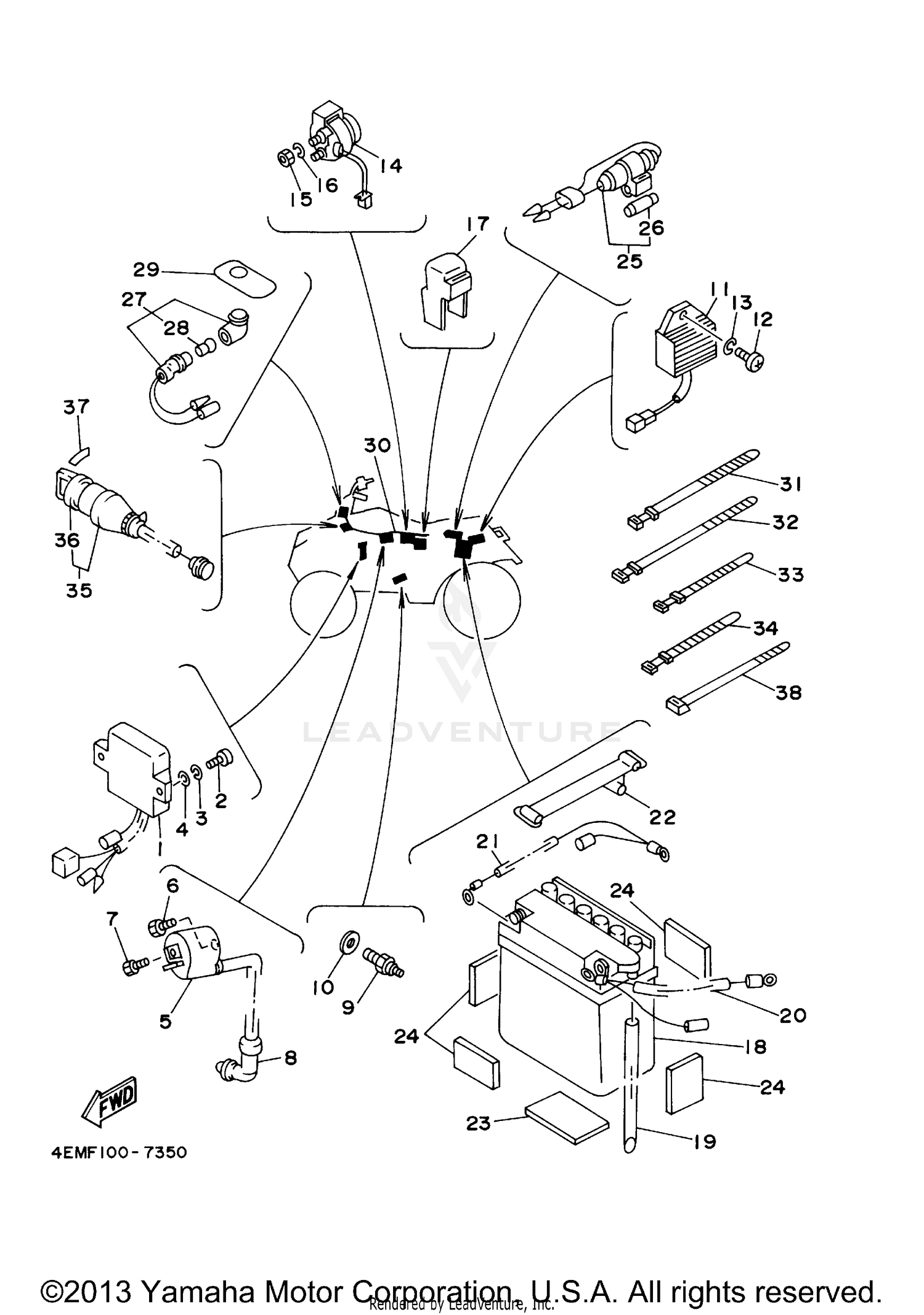

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
4EM-85540-10-00
|
$221.33 | ||
|
Unavailable |
|||
|
#2
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
4KJ-82310-10-00
Superseded by 3KJ-82310-14-00
|
$41.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SCREW, HEXAGON
90153-06034-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG CAP ASSY
55X-82370-00-00
Superseded by 4BP-82370-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
RECTIFIER & REGULATOR ASSY
3GB-81960-10-00
Superseded by 5TH-81960-01-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,PAN HEAD
98507-06016-00
|
$3.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#14
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY
1RL-81950-92-00
Superseded by 12R-81950-02-00
|
$76.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BAT 12N7-3B YU
55X-82110-61-00
Superseded by 12N-73B00-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE
90445-085E0-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WIRE, PLUS LEAD
55X-82115-00-00
Superseded by 55X-82115-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, MINUS LEAD
3GB-82116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, BATTERY
4J2-82131-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAT, BATTERY
55X-82122-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#24
DAMPER 1
29W-82123-00-00
Superseded by 1UY-21638-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE HOLDER ASSY
3GB-82150-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE
3GB-82151-00-00
Superseded by 5G2-82151-00-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PILOT LIGHT ASSY
24W-83530-01-00
Superseded by 24W-83530-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
LABEL
4EM-83585-10-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIRE HARNESS ASSY
4EM-82590-20-00
|
$154.99 | ||
|
Unavailable |
|||
|
#31
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND, SWITCH CORD
25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND, SWITCH CORD
366-82591-00-00
Superseded by 437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
MAIN SWITCH ASSY
4GB-82510-10-00
Superseded by 4GB-82510-12-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CAP, KEY
3HN-82579-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
LABEL
29U-83585-10-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#39
BLANK KEY (A-TYPE)
90890-56001-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BLANK KEY (B-TYPE)
90890-56002-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
