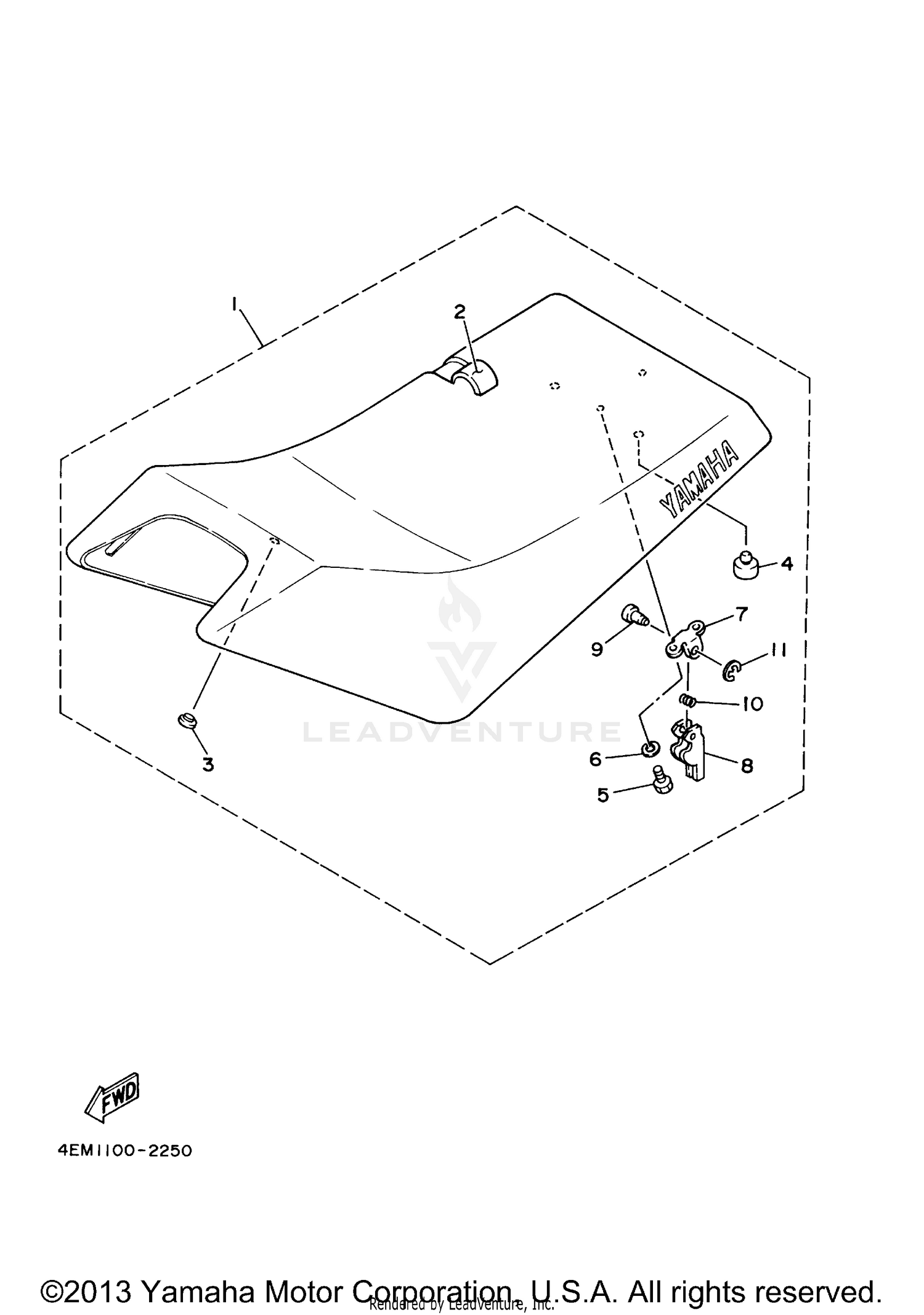

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
4EM-24710-40-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SEAT
4EM-24731-40-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, SEAT
3L7-24724-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, MAIN STAND
371-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97313-06012-00
Superseded by 97013-06012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-06100-00
Superseded by 92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT LEVER
4K0-24775-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, SEAT
29U-24776-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
4K0-24774-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TORSION
90508-20454-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
93430-04002-00
Superseded by 99080-04600-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
