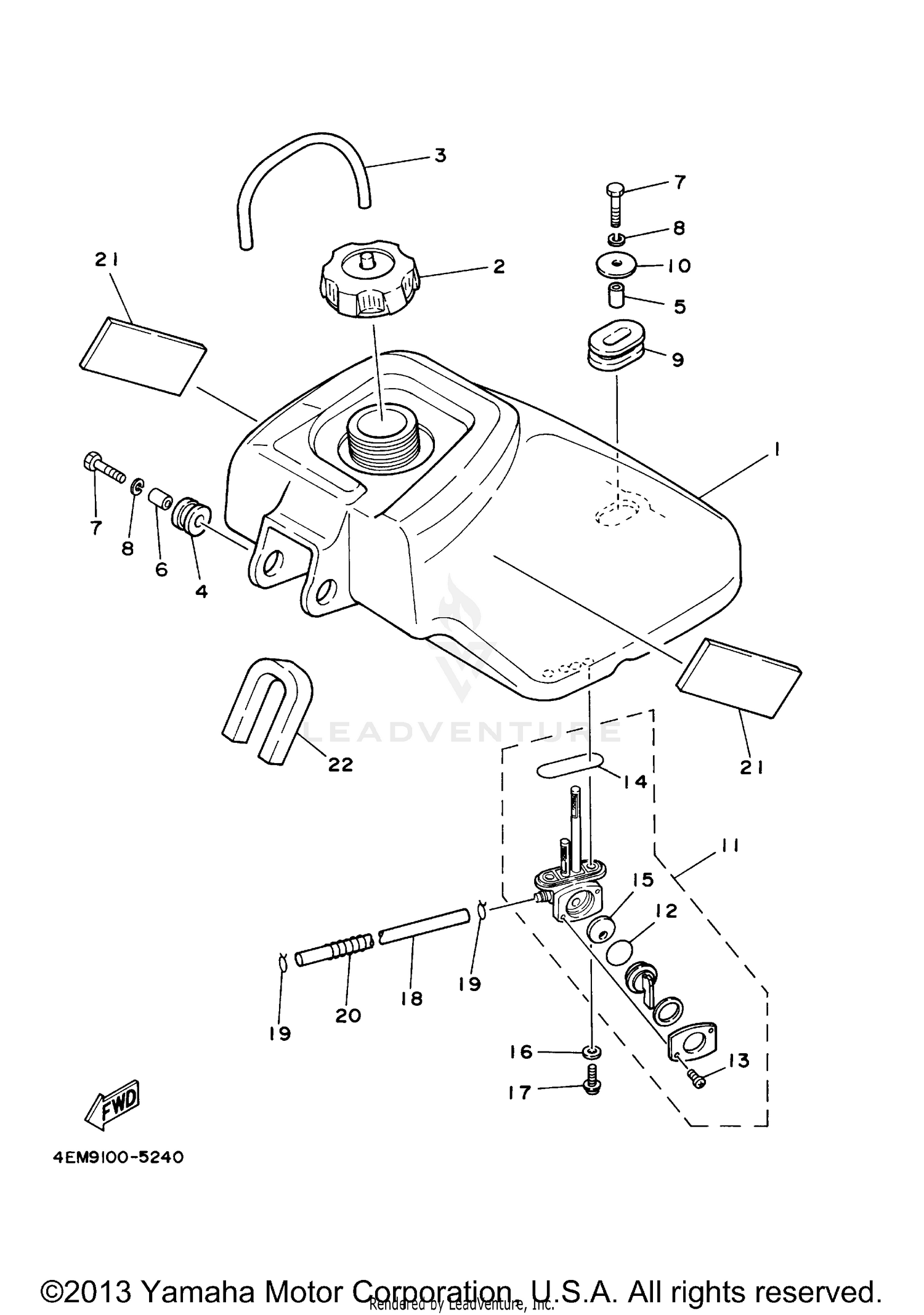

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2HX-24110-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
2FJ-24610-00-00
Superseded by 2FJ-24610-20-00
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HOSE (L460)
90445-084J1-00
Superseded by 90445-083J5-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COLLAR
90387-066J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,HEXAGON
97027-06030-00
Superseded by 97017-06030-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WASHER, SPRING
92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-060L5-00
Superseded by 90201-06090-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL COCK ASSY 1
55X-24500-01-00
Superseded by 55X-24500-02-00
|
$46.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING
4X8-24512-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HOSE (L110)
90445-10638-00
Superseded by 90445-10752-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90504-06030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT, BATTERY
12R-21747-00-00
Superseded by 5Y1-82122-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER 1
2HX-24181-00-00
Superseded by 88T-77198-00-00
|
$3.25 | ||
|
Unavailable |
|||
