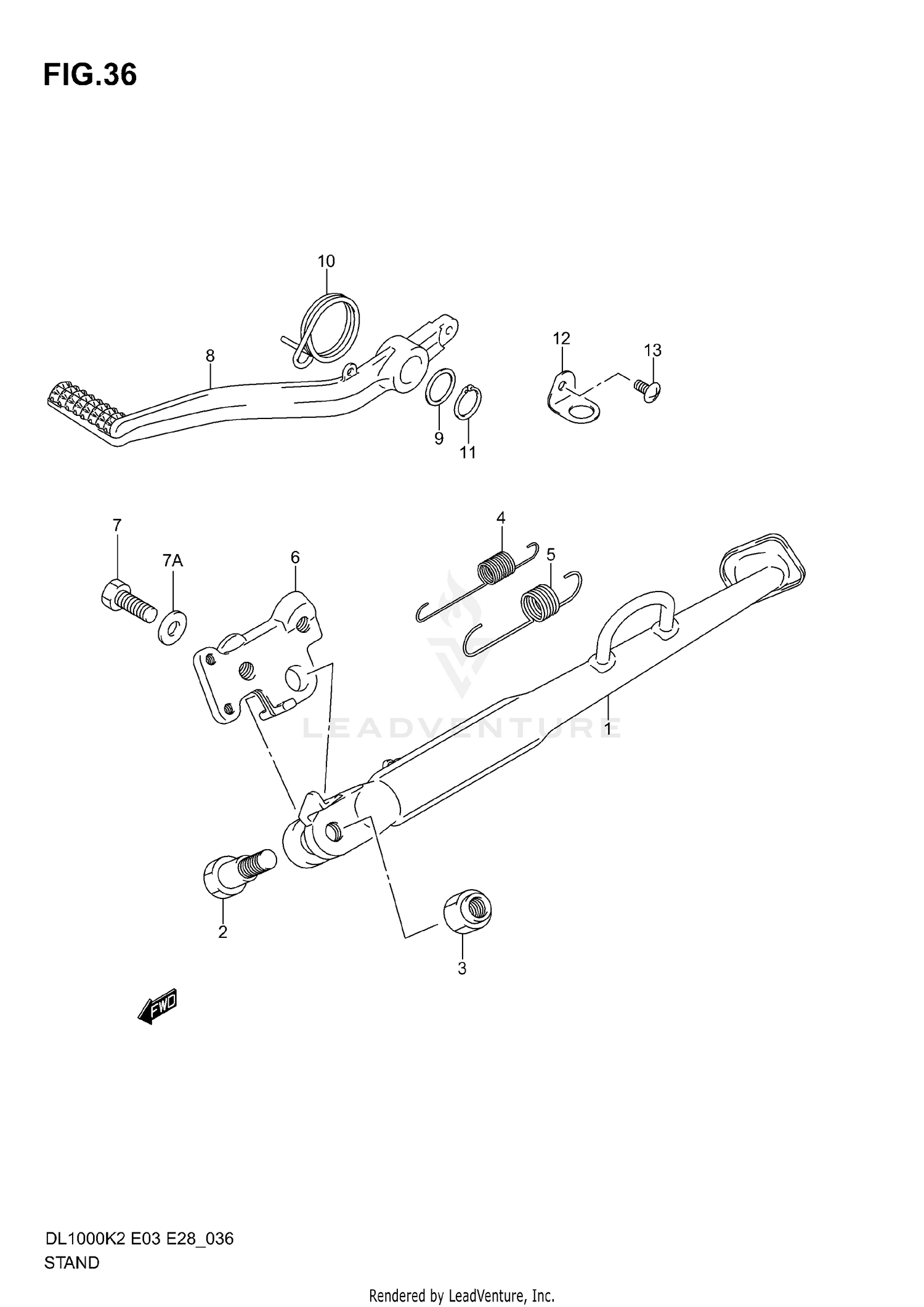

Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-06G00
|
$172.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
09111-10058
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,PROP STAND
42321-03FK0
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, INNER
09443-14058
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, OUTER
09443-19011
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, PROP STAND
42330-06G00
Superseded by 42330-06G01
|
$132.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09100-12084
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#7A
WASHER
09160-12061
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, BRAKE
43111-06G00
|
$156.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09160-18022
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09448-41005
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
08331-31186
Superseded by 08331-3118A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, STOP SWITCH
43251-06G00
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
