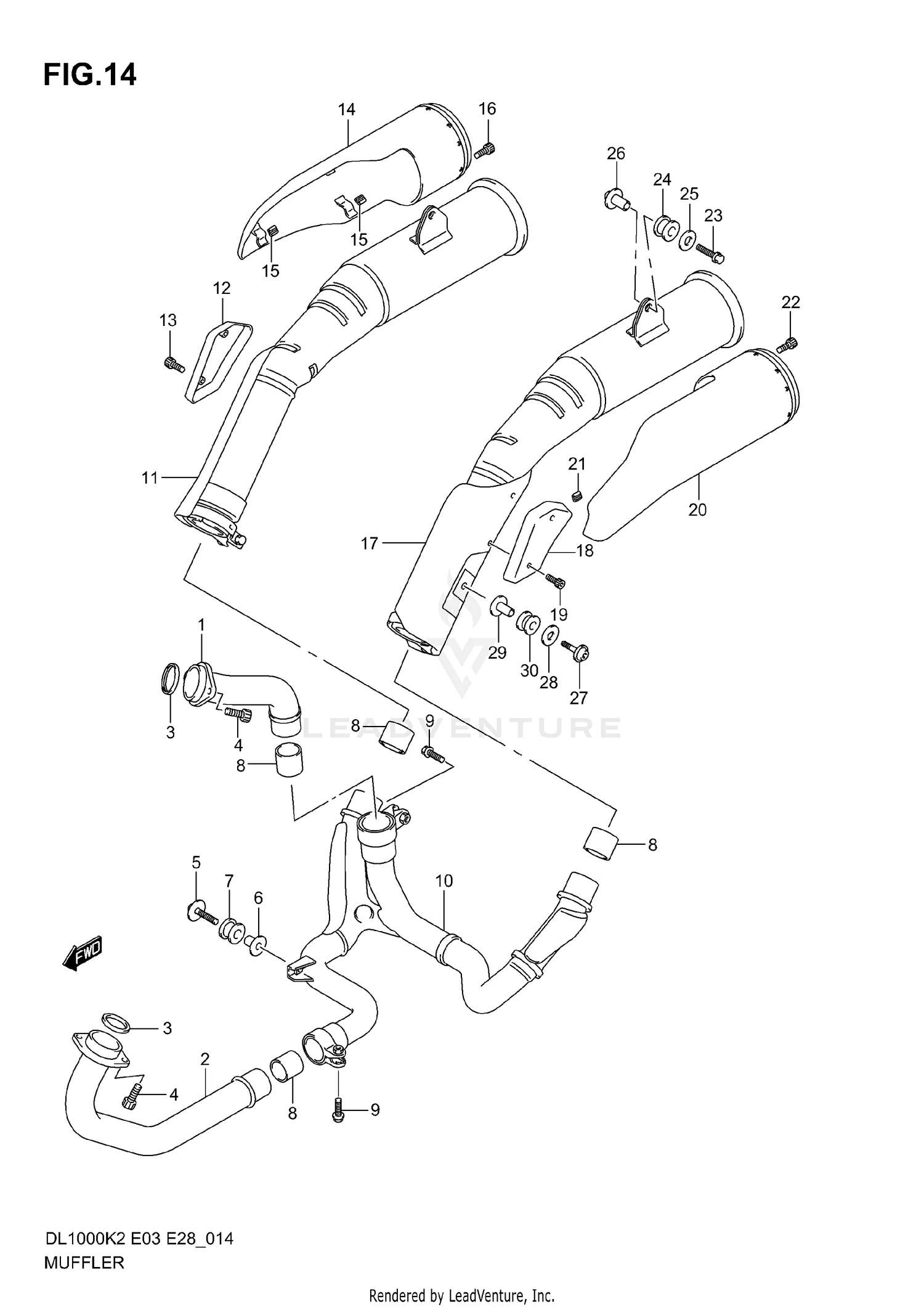

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST RH
14150-06G00
|
$144.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, EXHAUST LH
14160-06G00
|
$231.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EXHAUST PIPE
14181-31D00
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, EXHAUST PIPE
09106-08165
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (8X45)
09118-08152
Superseded by 09118-08152-A05
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, EXHAUST SUPPORT
09180-08152
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-12048
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, EXHAUST
14771-02F00
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CONNECTOR
09103-08392
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, EXHAUST CENTER
14205-06G10
|
$665.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
MUFFLER, RH
14305-06G10-H01
|
$423.18 | ||
|
Unavailable |
|||
|
#11
MUFFLER, RH
14305-06G11-H01
|
$478.71 | ||
|
Unavailable |
|||
|
#11
MUFFLER, RH
14305-06G02
Superseded by 14305-06G02-H01
|
$793.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, MUFFLER COVER, RH
14186-06G00
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-05123
Superseded by 07130-0512B
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, MUFFLER, RH
14780-06G00
Superseded by 14780-06G01
|
$303.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, MUFFLER, RH
14780-06G01
|
$303.80 | ||
|
Unavailable |
|||
|
#15
GROMMET, MUFFLER COVER
14795-06G00
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X10)
09106-06076
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
MUFFLER, LH
14306-06G10-H01
|
$509.74 | ||
|
Unavailable |
|||
|
#17
MUFFLER, LH
14306-06G11-H01
|
$704.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
MUFFLER, LH
14306-06G02
|
$525.42 | ||
|
Unavailable |
|||
|
#18
PROTECTOR, MUFFLER COVER, LH
14196-06G00
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
07130-05123
Superseded by 07130-0512B
|
$3.06 | ||
|
Unavailable |
|||
|
#20
COVER, MUFFLER, LH
14790-06G00
Superseded by 14790-06G01
|
$303.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, MUFFLER, LH
14790-06G01
|
$303.80 | ||
|
Unavailable |
|||
|
#21
GROMMET, MUFFLER COVER
14795-06G00
|
$6.65 | ||
|
Unavailable |
|||
|
#22
BOLT (6X10)
09106-06076
|
$4.06 | ||
|
Unavailable |
|||
|
#23
BOLT, MUFFLER SUPPORT
09103-08358
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION, MUFFLER SUPPORT
09320-12049
|
$13.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, MUFFLER SUPPORT
09160-08146
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, MUFFLER SUPPORT
14414-06G00
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, MUFFLER SUPPORT FRONT
09106-08147
|
$7.72 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, MUFFLER SUPPORT FRONT
09160-08134
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER, MUFFLER SUPPORT FRONT
09180-08151
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION, MUFFLER SUPPORT FRONT
09320-12043
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
