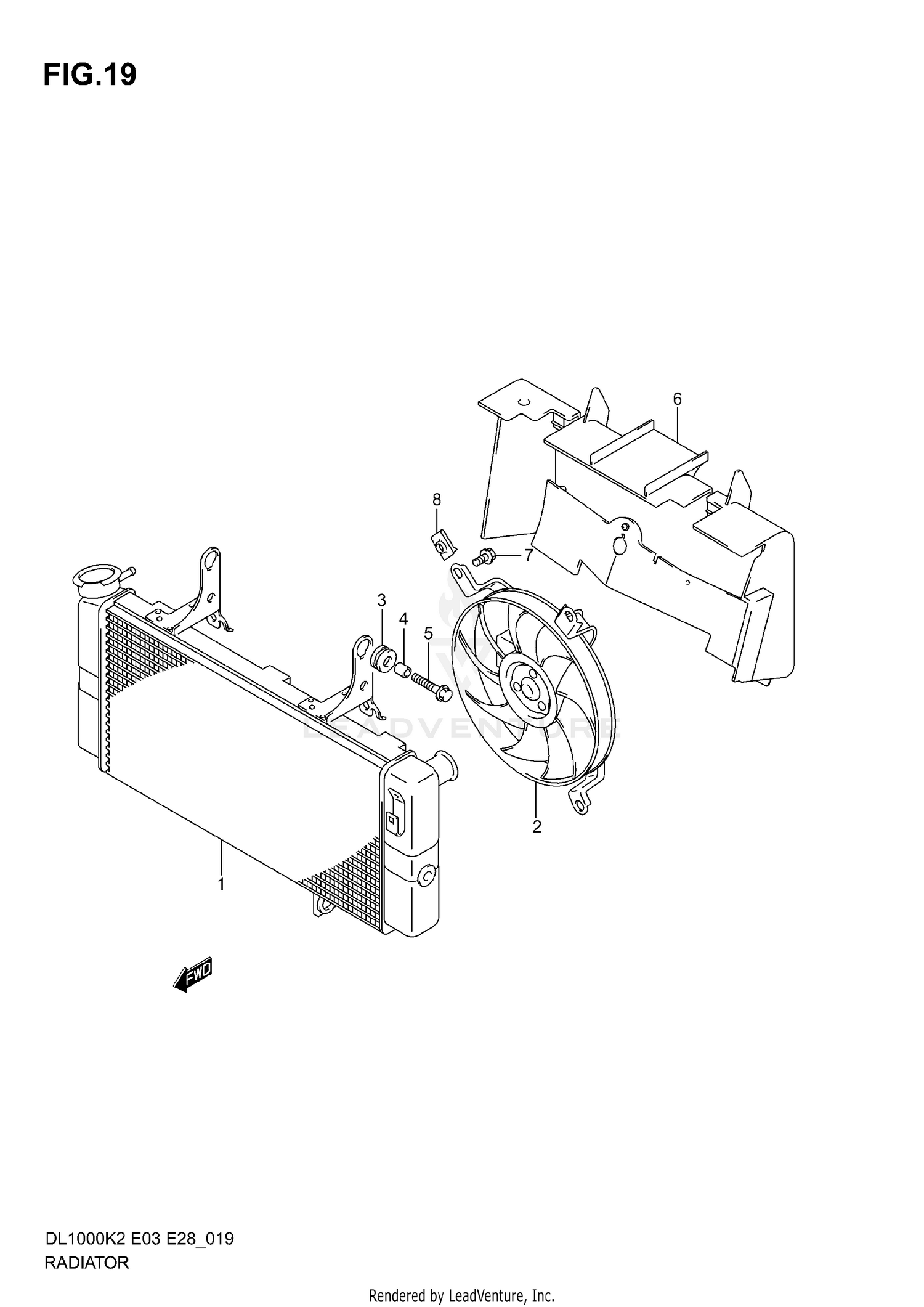

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-06G00
|
$1,169.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN ASSY
17800-06G00
|
$587.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
09320-10042
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X20)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD, RADIATOR HEAT
17760-06G00
|
$64.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
17711-40F00
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT,FAN ASSY
17712-40F00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
