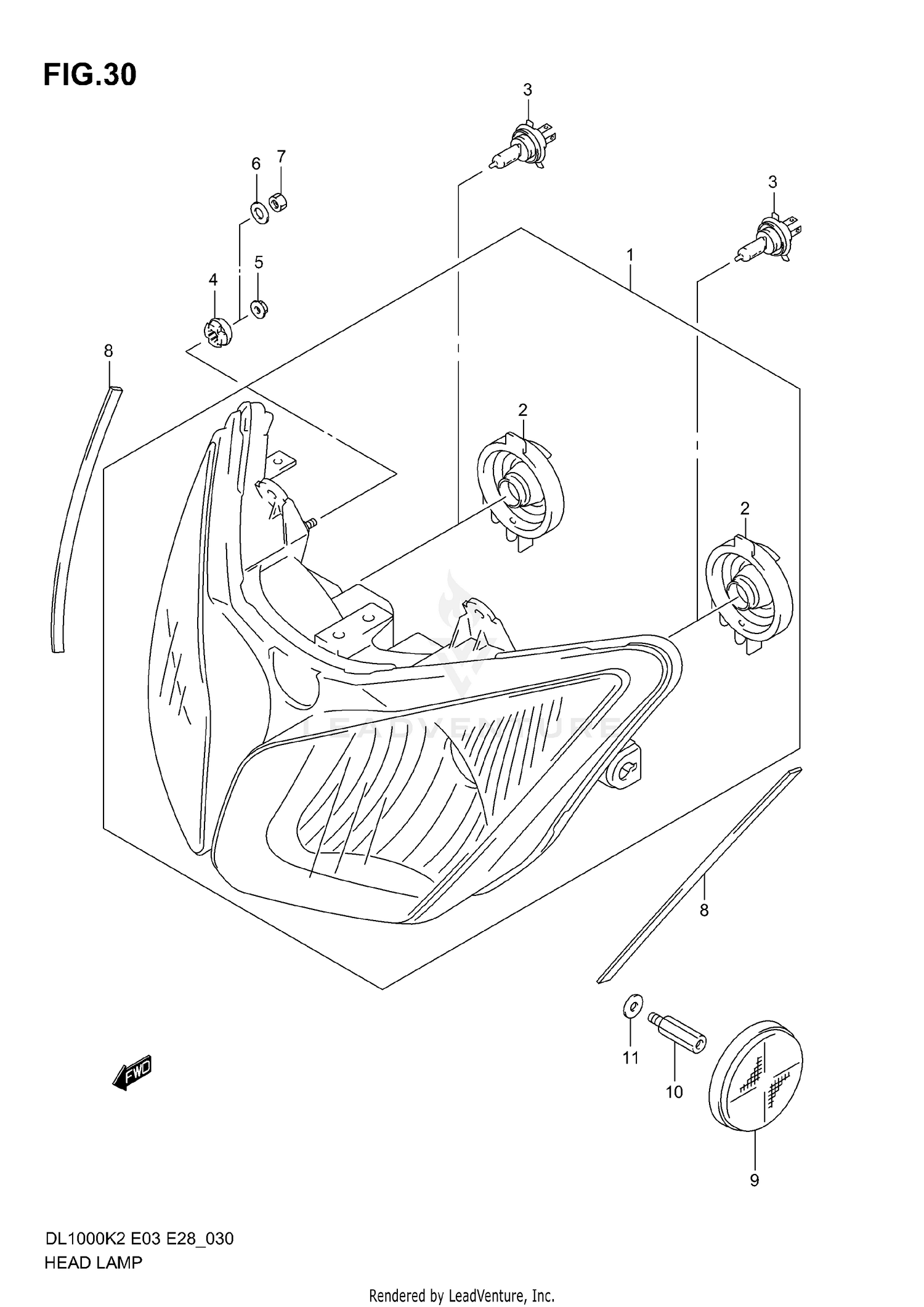

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-06G30-999
|
$605.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
SOCKET, COVER
35125-77A00
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V,60/55W,H4)
09471-12182
|
$80.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09320-09010
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT (M6)
09159-06086
|
$2.04 | ||
|
Unavailable |
|||
|
#6
WASHER (6.5X20X1.6)
09160-06088
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08310-00063
Superseded by 08310-0006A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, HEADLAMP
33652-06G10
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
REFLEX REFLECTOR ASSY, FRONT
35950-14A00
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (5X10)
09119-05023
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
