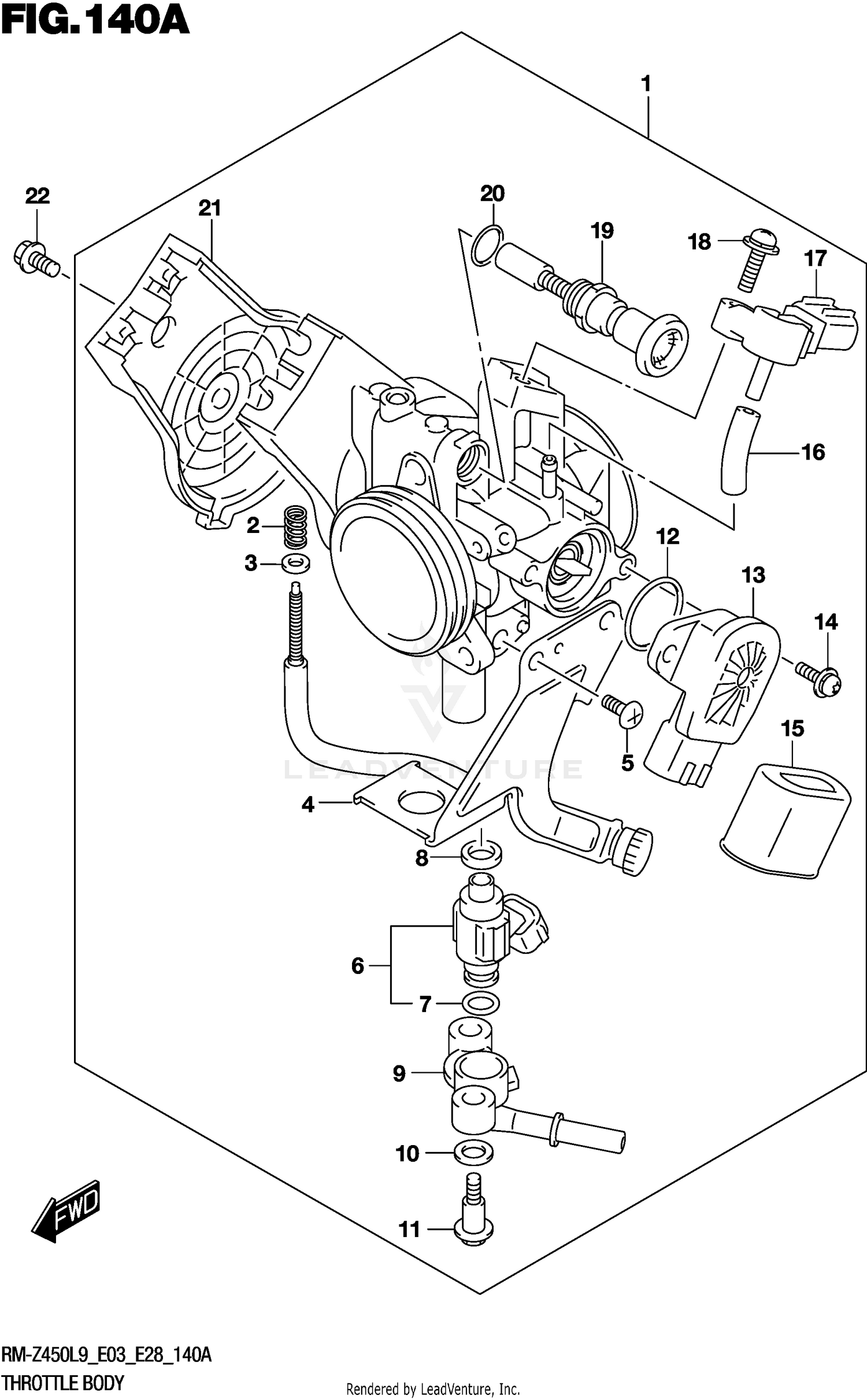

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13041-37K00
Superseded by 13041-37K01
|
$606.01 | ||
|
Unavailable |
|||
|
#2
.SPRING
13271-96110
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
.WASHER
13615-43010
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
.ADJUSTER SCREW ASSY
13270-37K00
|
$55.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW
13602-02F00
|
$1.58 | ||
|
Unavailable |
|||
|
#6
.INJECTOR ASSY
15710-37K00
|
$273.72 | ||
|
Available to order. Add to View Price |
|||
|
#7
..O-RING
15717-58B00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SEAL
15722-14J00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
.DELIVERY PIPE
15731-37K00
|
$217.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
13601-11J00
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
.O RING
13575-31G00
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SENSOR ASSY
13580-37K00
|
$231.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
13605-37K00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
.COVER
13589-37K00
|
$59.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
.HOSE
13683-10F60
Superseded by 13683-10F61
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR,AIR PRESSURE
18590-18K00
|
$350.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
.SCREW
13437-14J00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
.PLUNGER ASSY
13411-37K00
|
$39.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
.COVER,THROTTLE
13484-37K00
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW,THROTTLE COVER
13601-37K00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
