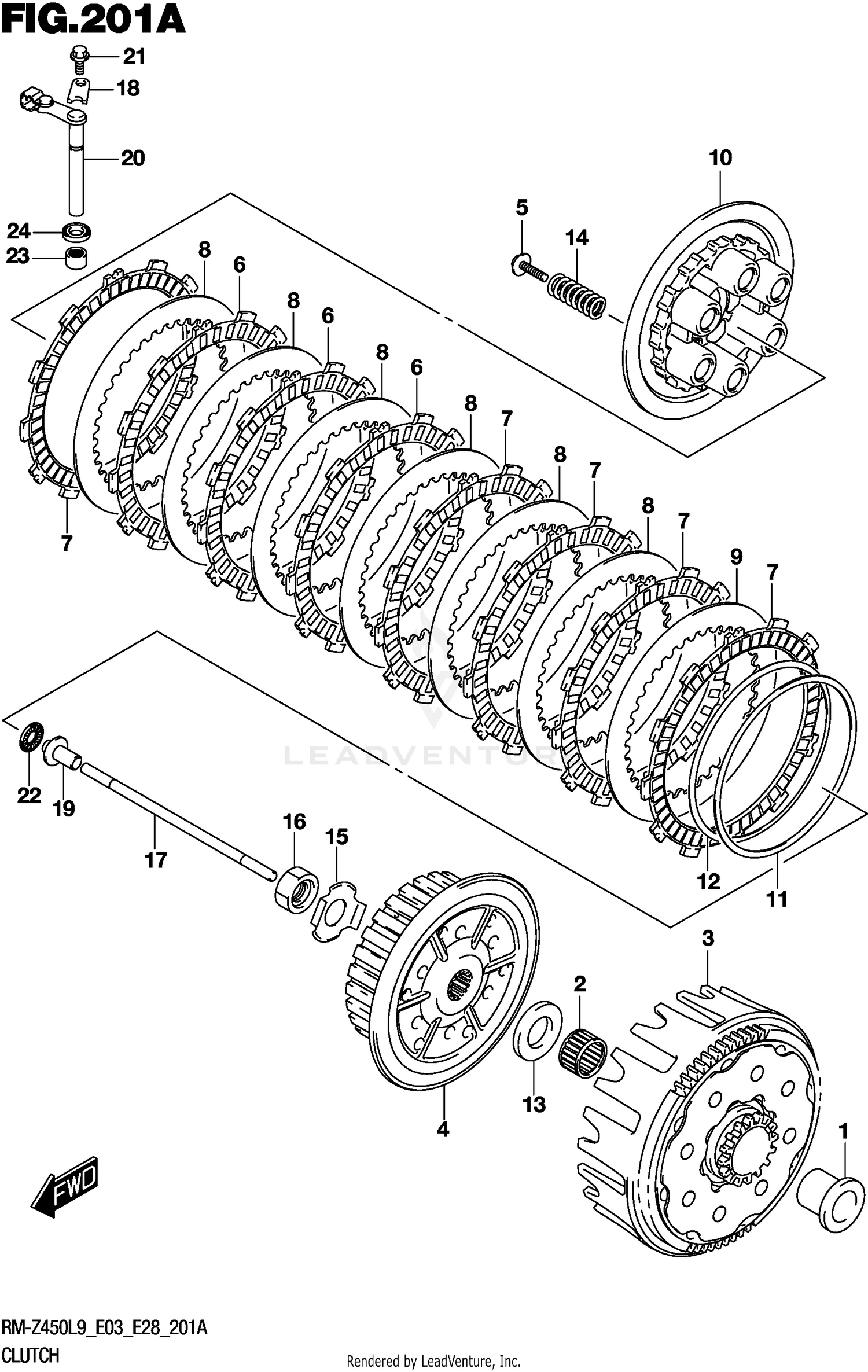

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER,PRI DRIVEN GEAR
21251-28H00
|
$58.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (28X32X26)
09263-28042
|
$32.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR ASSY,PRIMARY DRIVEN (NT:
21200-28H10
|
$404.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR ASSY,PRIMARY DRIVEN (NT:
21200-28H10
|
$404.94 | ||
|
Unavailable |
|||
|
#4
HUB,CLUTCH SLEEVE
21411-35G30
|
$128.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT,CLUTCH SPRING (6X25)
21412-35G00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,CLUTCH DRIVE NO.1 (T:2.
21441-35G00
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,CLUTCH DRIVE NO.1 (T:2.
21441-35G00
|
$21.23 | ||
|
Unavailable |
|||
|
#7
PLATE,CLUTCH DRIVE NO.2 (T:2.
21441-37F30
|
$17.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE,CLUTCH DRIVE NO.2 (T:2.
21441-37F30
|
$17.96 | ||
|
Unavailable |
|||
|
#8
PLATE,CLUTCH DRIVEN (T:1.6)
21451-35G00
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,CLUTCH DRIVEN (T:1.6)
21452-35G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
DISC,CLUTCH PRESSURE
21462-28H00
|
$69.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT,WAVE WASHER
21471-28H00
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,CLUTCH PLATE WAVE
21472-35G00
|
$24.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (22.5X39X3)
09160-22082
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09440-18044
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,CLUTCH SLEEVE HUB LOCK
21416-35G10
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09140-18017
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD,CLUTCH PUSH
23110-28H00
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER,CL RELEASE CAMSHAFT
23117-28H00
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIECE,CLUTCH PUSH
23121-37F00
|
$26.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT,CLUTCH RELEASE
23200-28H10
|
$91.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (6X12)
09103-06280
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING (10X22X2.8)
09263-10002
|
$12.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING (10X14X10)
09263-10014
|
$16.96 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (10X17X5)
09285-10004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
